Quick-release couplings
for your needs.

Compatible.Safe.Compact.

For 25 years now, we have pursued a single goal: to develop and produce the best solution for each application. Our quick-release couplings are compatible with all common systems on the market and are available in stainless steel, brass, steel and plastic.

Order our quick-release coupling product catalogue here.

Product catalogue

You can find certificates for our quick-release couplings here.

Our certifications


SERIES 090.V0
coupling, protected by twisting the locking nut, Article: N0QC1
Image similar to the originalArticle: N0QC1, Nominal Width|5 mm, Connection|LW6, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW6, seal: FPM (Viton)One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling.Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass nickel plated. Locking nut anodised aluminium. Seal FPM ( Viton). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel platedNominal width 5.0 mm, brass, surface: nickel plated, single shut off, hose connection, LW6, seal: FPM (Viton)
Nominal Width: 5 mm 5Connection: LW6 LW6Flow Rate: 600 l/min 600
more Details
SERIES 120.00
coupling, Article: N1K60
Image similar to the originalArticle: N1K60, Nominal Width|5.5 mm, Connection| 1/4, Flow Rate|680 l/min
Nominal width 5.5 mm, material: brass, single shut off, connection type: male thread DIN228/1, connection size: 1/4, seal: NBR (Perbunan)One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling.Material Coupling: back part, sleeve, coupler body and valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 420. Material plug: brassNominal width 5.5 mm, brass, single shut off, male thread DIN228/1, 1/4, seal: NBR (Perbunan)Steinconnector 123, Industr. Interchange 1/4″, US-MIL-SPEC-C-4109, ISO 6150 B, Rectus 23 + 24, Rectus 1400/1423, Tema 1400, Cejn 310, Hansen 3000, Faster, Gromelle 600, Parker 20 1/4″ + 30 1/4″, JWL 521 + JWL 531
Nominal Width: 5.5 mm 5.5Connection: 1/4 1/4Flow Rate: 680 l/min 680
more Details
SERIES 152.00
coupling, Article: N06C0
Image similar to the originalArticle: N06C0, Nominal Width|10 mm, Connection| 1/2, Flow Rate|3,050 l/min
Nominal width 10.0 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/2, seal: NBR (Perbunan)One-hand coupling with automatic 6-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and push the plug out of the coupling.Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 10.0 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/2, seal: NBR (Perbunan)
Nominal Width: 10 mm 10Connection: 1/2 1/2Flow Rate: 3,050 l/min 3,050
more Details

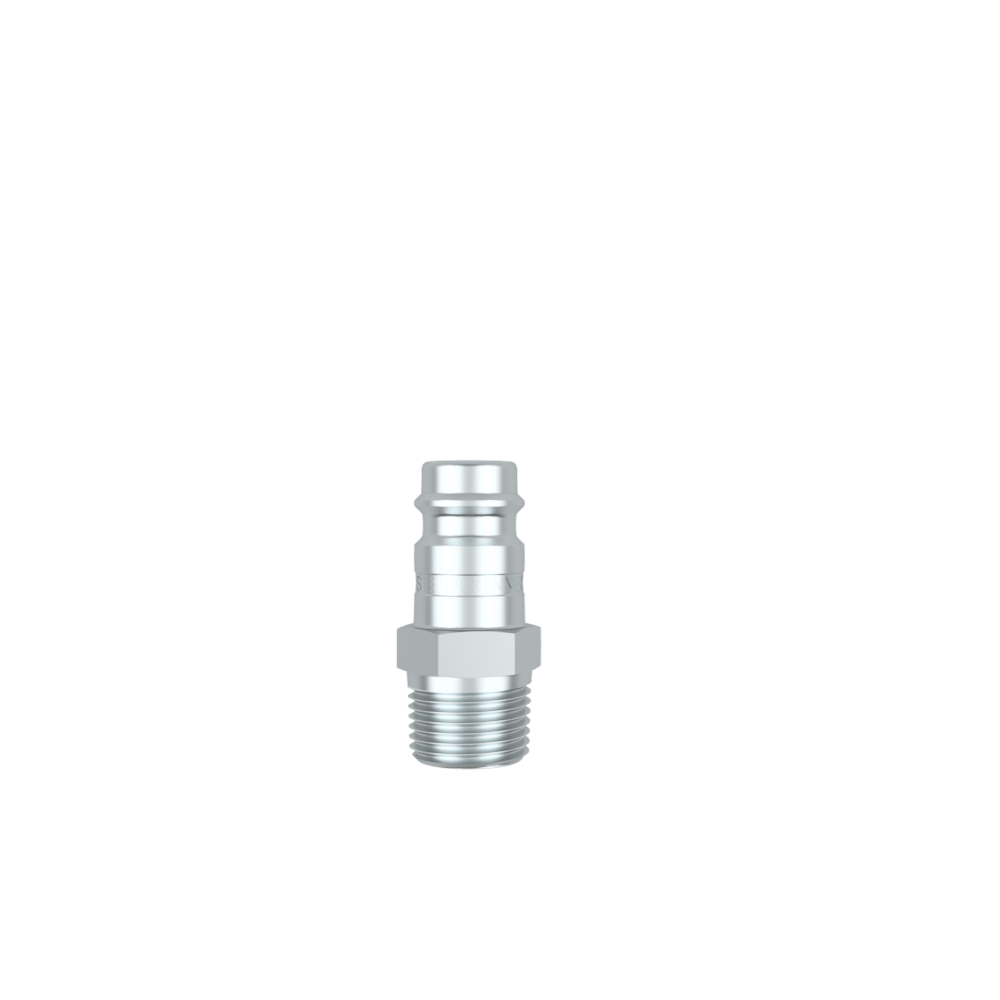

SERIES 152.00
plug, Article: NMSB0
Image similar to the originalArticle: NMSB0, Nominal Width|10 mm, Connection| 3/8, Flow Rate|3,050 l/min
Nominal width 10.0 mm, material: steel, surface: zinc-plated, connection type: male thread DIN2999 (BSPT), connection size: 3/8One-hand coupling with automatic 6-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and push the plug out of the coupling.Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 10.0 mm, steel, surface: zinc-plated, male thread DIN2999 (BSPT), 3/8
Nominal Width: 10 mm 10Connection: 3/8 3/8Flow Rate: 3,050 l/min 3,050
more Details

Would you like personal advice?

We look forward to hearing from you!

Which compressed air, safety & quick couplings does the STEINCONNECTOR Premium compressed air accessories range offer?

STEINCONNECTOR is a manufacturer and supplier of compressed air connectors & compressed air accessories. We have been developing compressed air connectors and compressed air sockets for many years for many industries. Our range includes one-hand couplings and two-hand couplings in many designs and in first-class industrial quality - Made in Germany! The STEINCONNECTOR compressed air couplings & quick release couplings meet high quality standards, that's why many users have been relying on the durable & robust STEINCONNECTOR compressed air couplings for years!



In which industries are the innovative STEINCONNECTOR compressed air couplings & compressed air sockets used?

steinconnector pneumatic coupling pneumatic coupling safety coupling quick coupling quick coupling manufacturer germany
  • Medical technology - our medical safety & quick couplings are used in respiratory protection equipment, for operating theatre gases, for blood tests, in dental technology, in biochemistry & on dialysis equipment.
  • Machines & systems - our compressed air couplings & connections are used for efficient connection & disconnection of systems, machines, aggregates & other devices.
  • Factory equipment - our professional compressed air fittings are used in the pneumatics, laboratory technology, pharmaceuticals, chemical & food industries.
  • Water & waste water technology - our sewer technology compressed air & safety couplings are used in sewer rehabilitation, e.g. on pipe sealing cushions, push rods, shut-off bladders, rehabilitation packers, house connection packers, short & in-liners.
  • Fluidik - our Fluidik quick connect couplings are used for the connection of liquid media in the plastics industry, for tool cooling & in the use of aggressive liquids.
  • Breathing protection - our breathing air safety couplings are used on breathing protection masks and equipment in the pharmaceutical and chemical industries, by fire brigades or in painting technology.

Through many years of developing and manufacturing compressed air connections and compressed air accessories, as well as safety and quick couplings, STEINCONNECTOR offers a diverse range of couplings. Our pneumatic hose connections are made of first-class materials in Germany and are therefore durable & robust. Rely on STEINCONNECTOR premium pneumatic couplings & quick couplings that are easy to use - Made in Germany!



Contact us, together we will find the perfect solution for your application.

We will advise you quickly and competently and look forward to your call!

What are the advantages of STEINCONNECTOR Premium quick couplings, safety couplings and compressed air couplings?

The use of STEINCONNECTOR compressed air connections & quick couplings offers you many advantages. Benefit from our many years of experience as a German manufacturer of quick couplings and discover our innovative premium safety couplings for your application. Our large range of couplings offers the perfect coupling for almost all applications. Special solutions are also possible! Contact us, we will be happy to advise you and find the perfect solution for your hose connections together with you!



Your advantages when using our robust & durable hose connections & couplings at a glance:

Easy to use - benefit from safe & conveniently manageable couplings with easy-grip sleeves that can be connected and disconnected with little effort



German manufacturer - Buy your compressed air fittings directly from the manufacturer, STEINCONNECTOR stands for first-class quality - Made in Germany!



Free 3D models - use our free 3D models in many common 3D formats and make your CAD planning more efficient.



Premium quality - our quick, safety & compressed air couplings are made of the best materials in Germany and are durable & robust



fast delivery time - the STEINCONNECTOR safety couplings & quick couplings are mostly available from stock and can be delivered quickly



Perfect safety - our quality-tested safety couplings meet high safety standards and are secured against unintentional decoupling.



Personal advice - our goal is satisfied customers and perfect solutions. Contact us and tell us about your concerns. We look forward to your call!

manufacturer of compressed air connections and accessories - stone connector pneumatics quick-action coupling hose coupling safety coupling and compressed air couplings

Rely on STEINCONNECTOR coupling plugs and coupling sockets right from the start and equip your business with first-class premium quality. Don't settle for products of inferior quality whose function not only leaves something to be desired, but which are often not safe either. Benefit from our robust, durable, safe & easy-to-use STEINCONNECTOR one-hand couplings or two-hand couplings and thus ensure an uninterrupted flow of your work.



Trust in the advantages of STEINCONNECTOR Premium quick couplings

& safety couplings, benefit from the many advantages & make your work processes safe and efficient!
