456 products found.

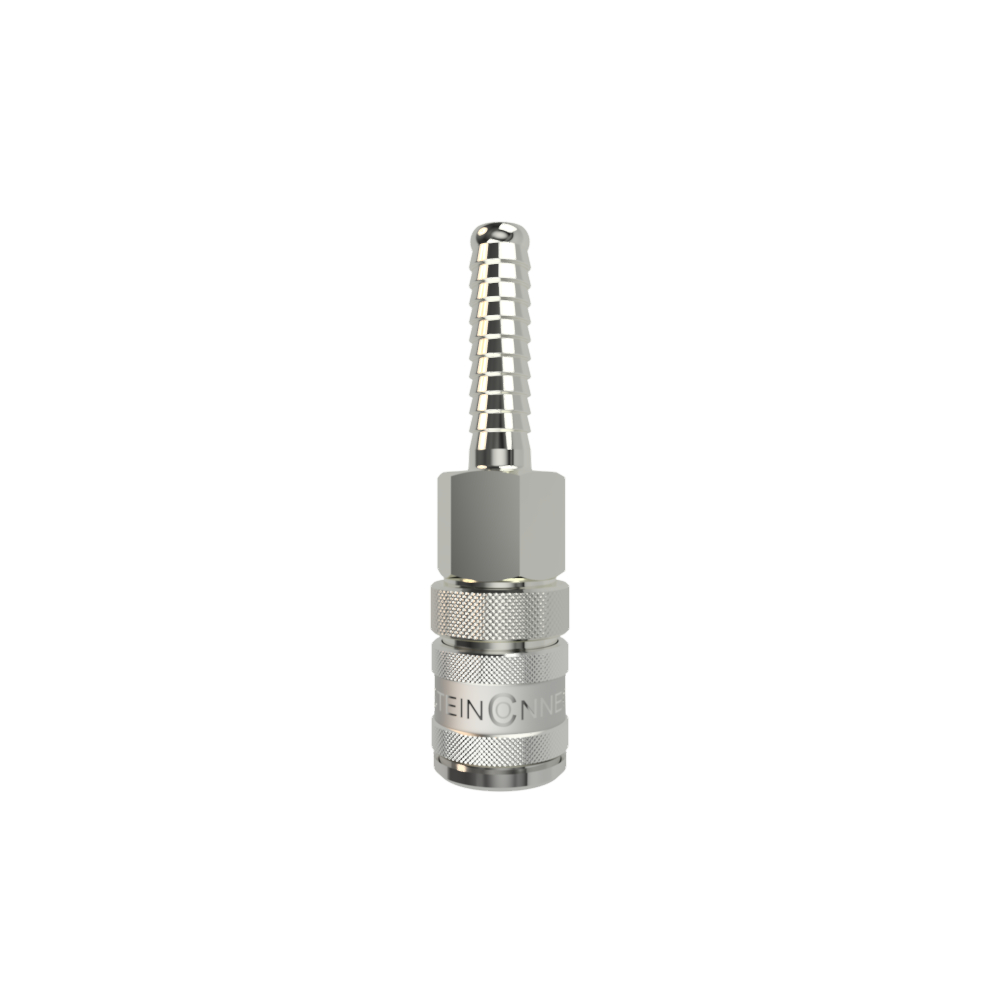

SERIES 126.V0
coupling, protected by twisting the locking nut, Article: NB390
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW9, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW9, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030

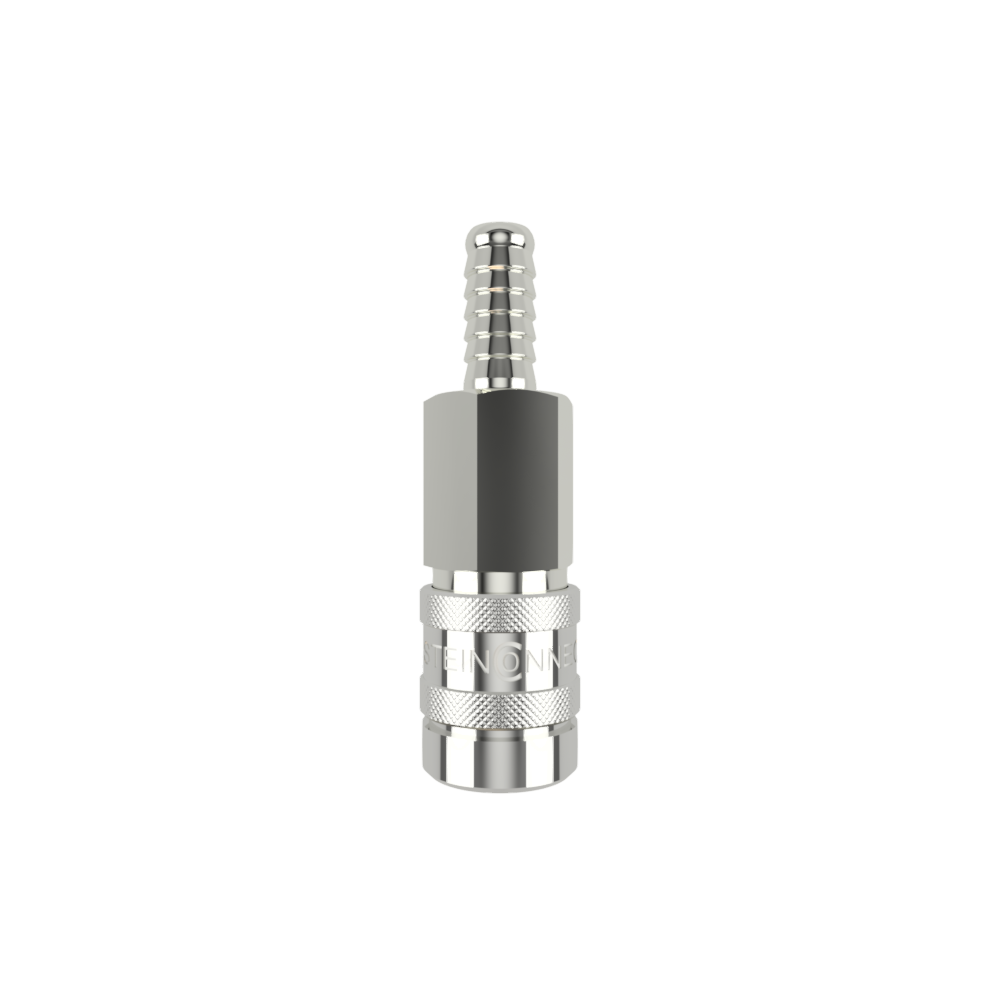

SERIES 126.VS
coupling, protected by twisting the locking nut, hexagonal, Article: NB750
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW13, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW13, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW13 LW13 Flow Rate: 2,030 l/min 2,030

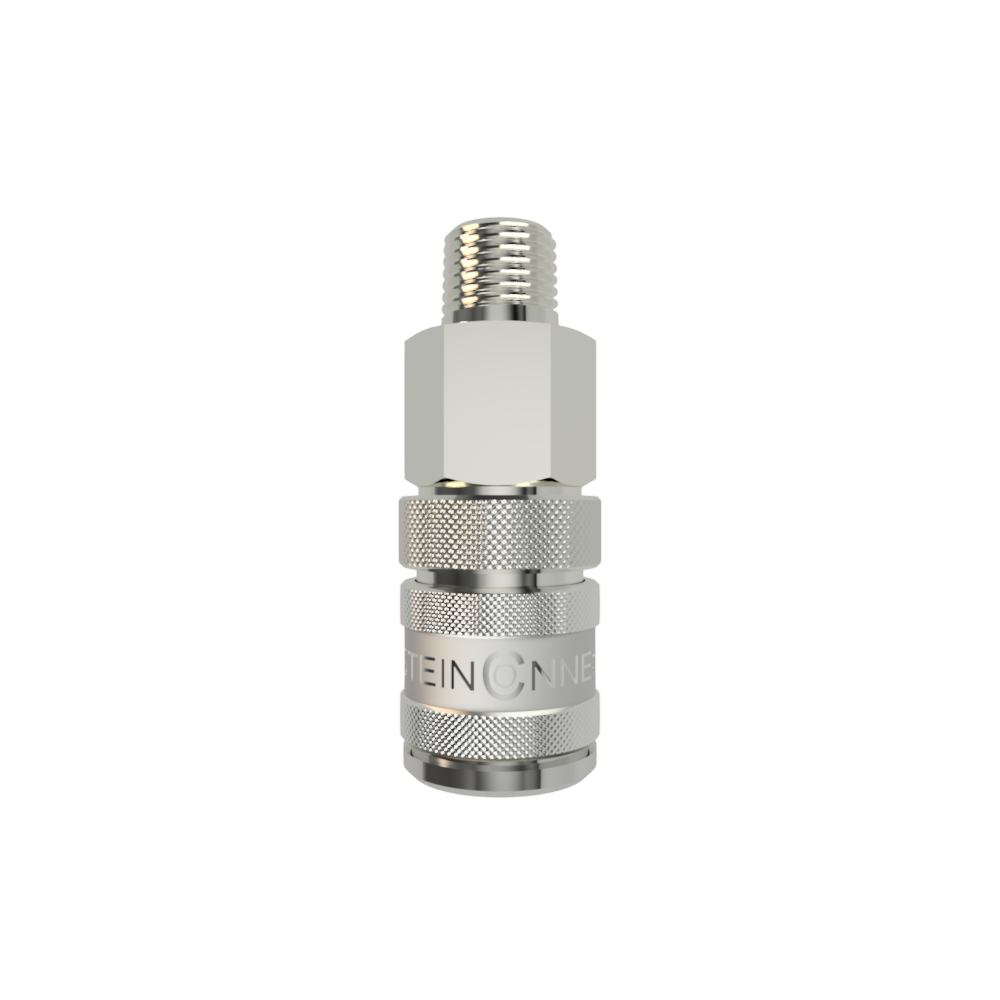

SERIES 126.V0
coupling, protected by twisting the locking nut, Article: NB700
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/4, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/4 1/4 Flow Rate: 2,030 l/min 2,030
SERIES 126.V0
coupling, protected by twisting the locking nut, Article: NB800
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/4 1/4 Flow Rate: 2,030 l/min 2,030
SERIES 161.VS
coupling, protected by twisting the locking nut, hexagonal, Article: O1AG0
Nominal width 8.5 mm, material: steel, surface: zinc-plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Coupling body, sleeve and locking nut are made from steel zink plated. Valve brass. Spring and circlip AISI 301. Balls stainless steel AISI 420. Seals made from material NBR (Buna N). Plug: steel zink plated Nominal width 8.5 mm, steel, surface: zinc-plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 8.5 mm 8.5 Connection:  1/4 1/4 Flow Rate: 1,966 l/min 1,966
SERIES 100.C0
coupling, self venting coupling, Article: N77J0
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 3/8, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic grippy slide valve with three functions: 1. Automatic locking of the plug. 2. Switch to the venting state. 3. Unlock the coupling from the vented state. * in points 1 and 2, the movement sequences are carried out under operating pressure. To connect plug and coupling, the plug has to be pressed into the locked state against the pressurized valve. To release the pressurized connection, the release sleeve has to be phushed into direction of the coupling. The plug moves automaticly from the locked into the vented state and the compressed air still present on the plug side can be vented through the coupling. Only now can the plug be safely removed by pulling back the release sleeve. Material coupling: back part, sleeve, coupler body brass nickel plated. Valve brass. Support washer and sleeve-cover plastic. Seal NBR (Buna N) spring and circlip stainless steel AISI 301. Bolts and balls stainless steel AISI 420. Material plug: steel hardend zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 3/8, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  3/8 3/8 Flow Rate: 1,350 l/min 1,350

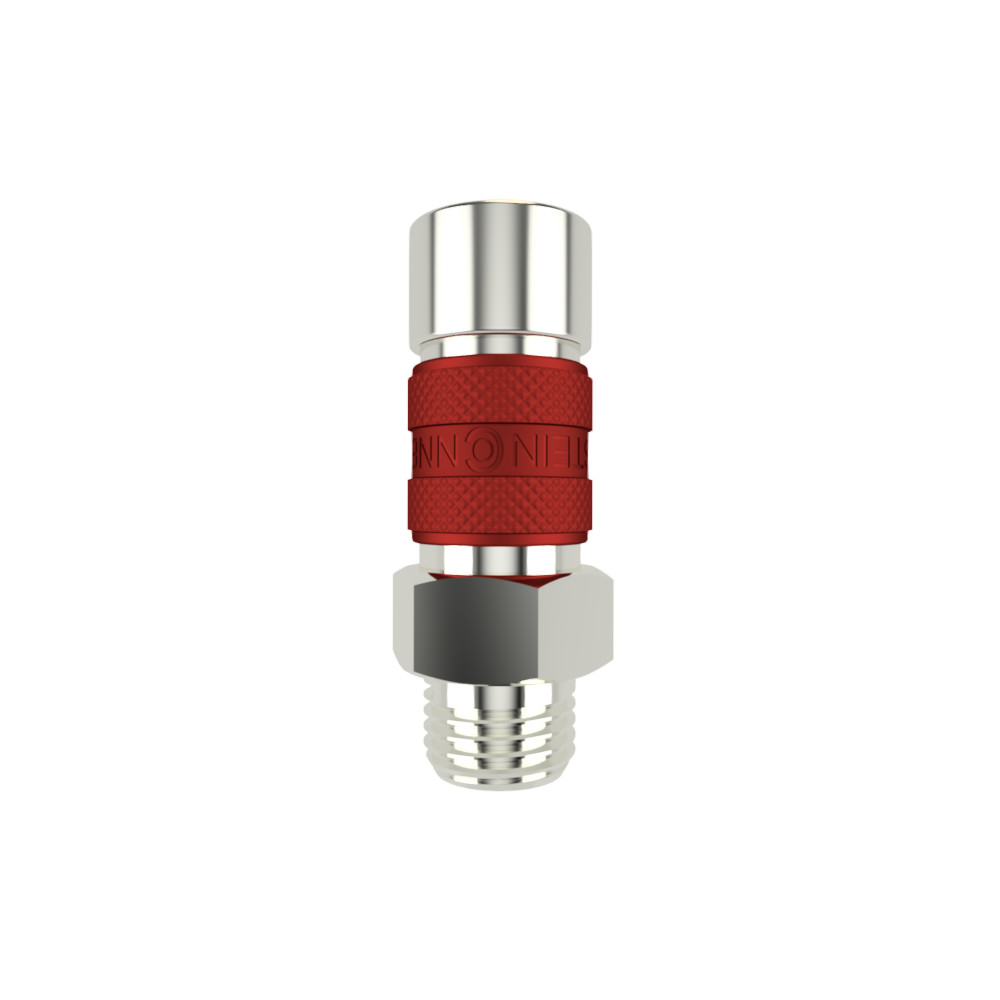

SERIES 090.0A
coupling, octagonal, Article: N9470
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection:  1/8 1/8 Flow Rate: 600 l/min 600

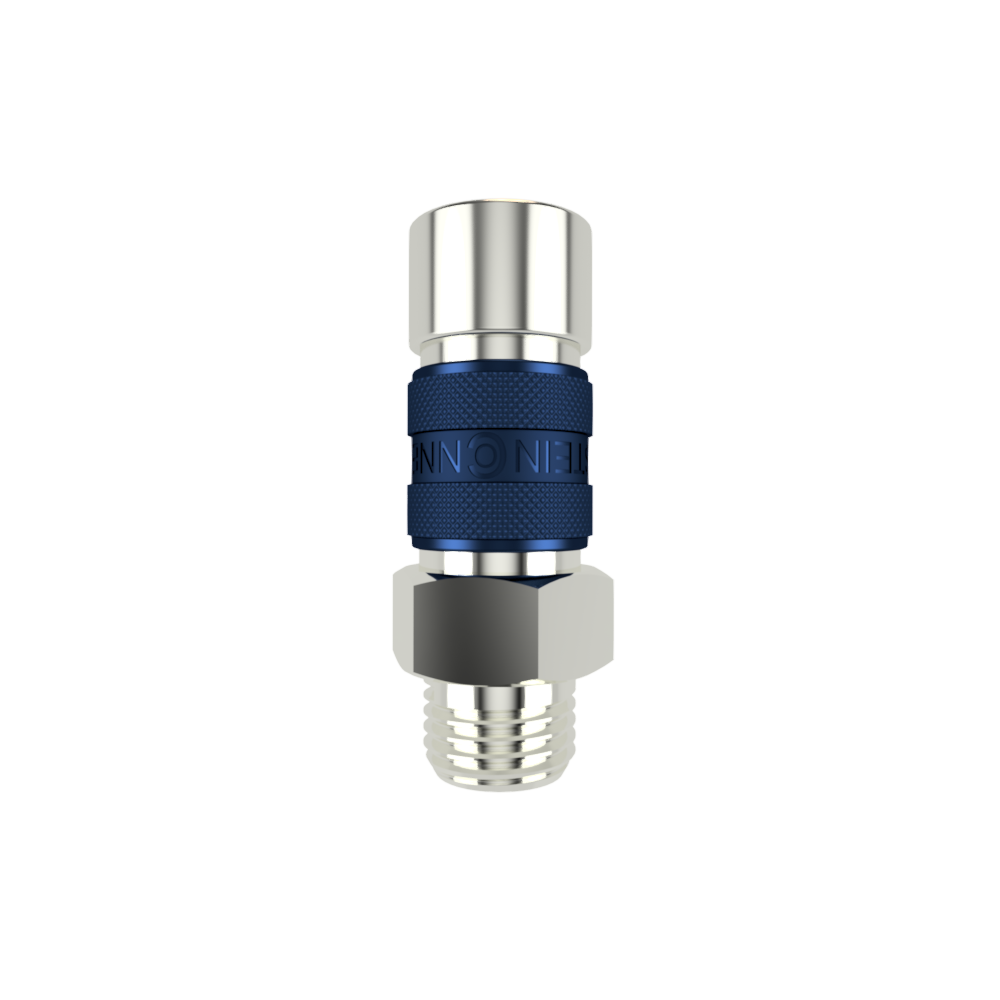

SERIES 090.0S
coupling, hexagonal, Article: N0GG0
Nominal width 5.0 mm, material: 1.4301, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: FPM (Viton) This one-hand coupling with automatic 5-point ball locking system with spring-loaded release sleeve. This system is used in the food industry where a mixing up of medias has to be ruled out. Achieved this is done through a coding. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Seals are FDA compliant. Material coupling: back part, sleeve, coupler body and valve stainless steel AISI 304. Seal fluororubber FPM ( FDA comliant). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 316. Material plug: stainleass steel AISI 304 Nominal width 5.0 mm, 1.4301, single shut off, male thread DIN228/1, 1/8, seal: FPM (Viton)
Nominal Width: 5 mm 5 Connection:  1/8 1/8 Flow Rate: 600 l/min 600
SERIES 090.0A
coupling, octagonal, Article: N0GH0
Nominal width 5.0 mm, material: 1.4301, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: FPM (Viton) This one-hand coupling with automatic 5-point ball locking system with spring-loaded release sleeve. This system is used in the food industry where a mixing up of medias has to be ruled out. Achieved this is done through a coding. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Seals are FDA compliant. Material coupling: back part, sleeve, coupler body and valve stainless steel AISI 304. Seal fluororubber FPM ( FDA comliant). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 316. Material plug: stainleass steel AISI 304 Nominal width 5.0 mm, 1.4301, single shut off, male thread DIN228/1, 1/8, seal: FPM (Viton)
Nominal Width: 5 mm 5 Connection:  1/8 1/8 Flow Rate: 600 l/min 600
SERIES 090.0S
coupling, hexagonal, Article: N9460
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection:  1/8 1/8 Flow Rate: 600 l/min 600
SERIES 160.VS
coupling, protected by twisting the locking nut, hexagonal, Article: O1A40
Nominal width 5.0 mm, material: steel, surface: zinc-plated, connection type: ferrule, connection size: LW9, seal: FPM (Viton) Two-hand coupling with 2-point bolt locking. Single piece coupling body with connection - ideal for absorbing significant bending and torsion forces. Positive connection between coupling and plug. Counter nut prevents the connection from being opened unintentionally. Coupling body, sleeve and locking nut are made from steel zink plated. Valve brass. Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 316. Seals made from material FPM (Viton). Plug: steel zink plated Nominal width 5.0 mm, steel, surface: zinc-plated, ferrule, LW9, seal: FPM (Viton)
Nominal Width: 5 mm 5 Connection: LW9 LW9 Flow Rate: 710 l/min 710
SERIES 126.VS
coupling, protected by twisting the locking nut, hexagonal, Article: NB730
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/4 1/4 Flow Rate: 2,030 l/min 2,030

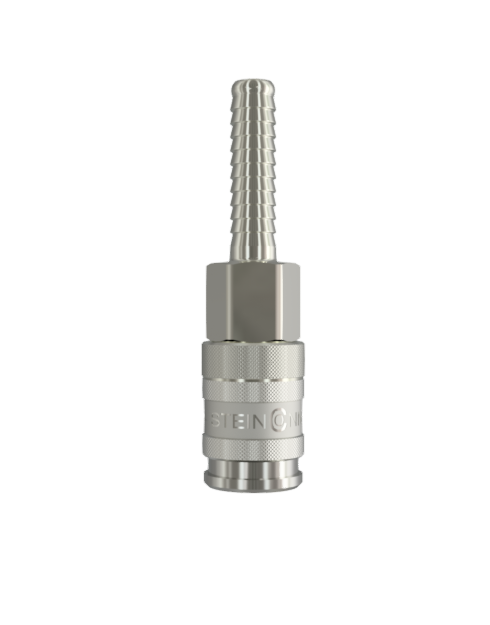

SERIES 126.VS
coupling, protected by twisting the locking nut, hexagonal, Article: NB720
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW9, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW9, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030
SERIES 126.VS
coupling, protected by twisting the locking nut, hexagonal, Article: NB760
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW12, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW12, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW12 LW12 Flow Rate: 2,030 l/min 2,030

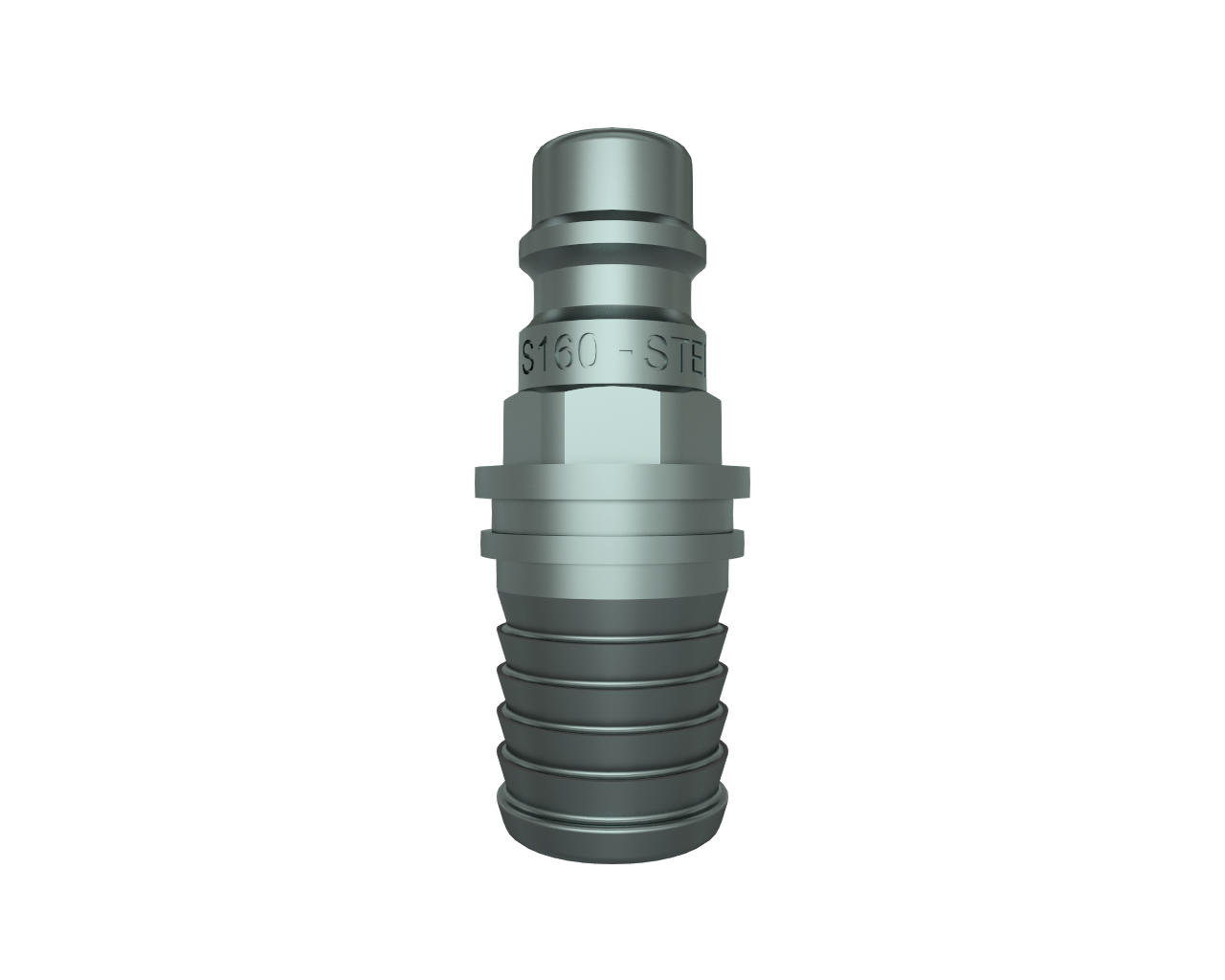

SERIES 126.00
plug, Article: OMF62
Nominal width 7.8 mm, material: steel, surface: zinc-plated, connection type: hose connection, connection size: LW9 One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, steel, surface: zinc-plated, hose connection, LW9
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030
SERIES 050.00
plug, Article: NYEM0
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: panel mount-hose connection, connection size: LW3 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, panel mount-hose connection, LW3
Nominal Width: 2.7 mm 2.7 Connection: LW3 LW3 Flow Rate: 120 l/min 120

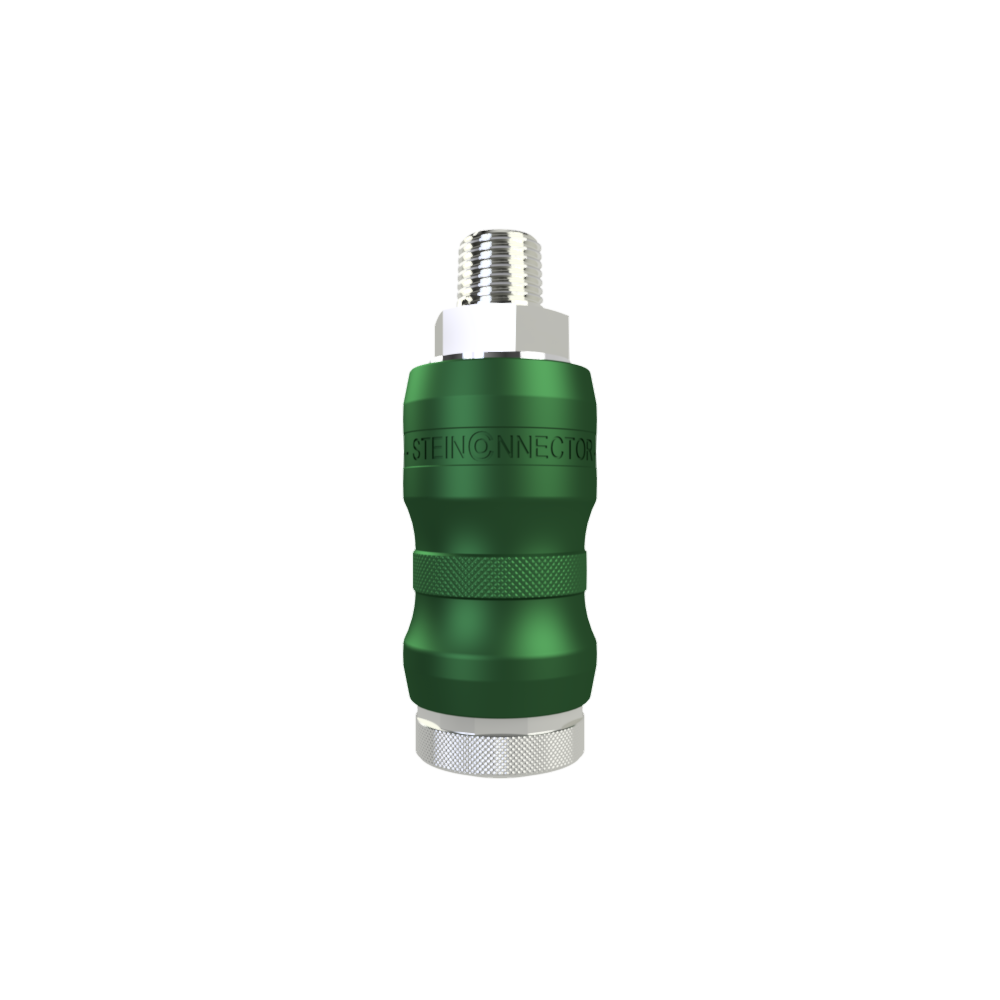

SERIES 125.F0
coupling, self venting safty coupling BiTec, Article: NB160
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/2, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic slide valve with two functions: 1. Establish flow while simultaneously securing the unlocking sleeve. 2. Shut off the flow while simultaneously venting and releasing the unlocking sleeve Coupled by pressing in the connector. Once this has audibly locked into place, the sliding sleeve can be used and the coupling can release the line pressure. Return the sliding sleeve to its starting position to switch the connector/hose connection to an unpressurised state. This will bleed any compressed air on the connector side. The connector can then be removed safely by pushing back the release sleeve. Material coupling: back part, sleeve and coupler body brass nickel plated. Sliding sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/2, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/2 1/2 Flow Rate: 2,050 l/min 2,050
SERIES 161.VS
coupling, protected by twisting the locking nut, hexagonal, Article: O1AE0
Nominal width 8.5 mm, material: steel, surface: zinc-plated, single shut off, connection type: male thread DIN228/1, connection size: 1/4, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Coupling body, sleeve and locking nut are made from steel zink plated. Valve brass. Spring and circlip AISI 301. Balls stainless steel AISI 420. Seals made from material NBR (Buna N). Plug: steel zink plated Nominal width 8.5 mm, steel, surface: zinc-plated, single shut off, male thread DIN228/1, 1/4, seal: NBR (Perbunan)
Nominal Width: 8.5 mm 8.5 Connection:  1/4 1/4 Flow Rate: 1,966 l/min 1,966
SERIES 126.V0
coupling, protected by twisting the locking nut, Article: NB384
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW13, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW13, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW13 LW13 Flow Rate: 2,030 l/min 2,030
SERIES 126.VS
coupling, protected by twisting the locking nut, hexagonal, Article: NB710
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/4, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/4 1/4 Flow Rate: 2,030 l/min 2,030
SERIES 125.F0
coupling, self venting safty coupling BiTec, Article: NB140
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/4, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic slide valve with two functions: 1. Establish flow while simultaneously securing the unlocking sleeve. 2. Shut off the flow while simultaneously venting and releasing the unlocking sleeve Coupled by pressing in the connector. Once this has audibly locked into place, the sliding sleeve can be used and the coupling can release the line pressure. Return the sliding sleeve to its starting position to switch the connector/hose connection to an unpressurised state. This will bleed any compressed air on the connector side. The connector can then be removed safely by pushing back the release sleeve. Material coupling: back part, sleeve and coupler body brass nickel plated. Sliding sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/4 1/4 Flow Rate: 2,050 l/min 2,050
SERIES 090.0A
plug, octagonal, Article: NYG30
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection:  1/8 1/8 Flow Rate: 600 l/min 600
SERIES 126.H0
coupling, protected with second groove, Article: N90D0
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection:  1/4 1/4 Flow Rate: 2,030 l/min 2,030
SERIES 090.0S
plug, hexagonal, Article: NYG20
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection:  1/8 1/8 Flow Rate: 600 l/min 600
