301 products found.
SERIES 090.0A
coupling, octagonal, Article: N0GH0
Image similar to the original Article: N0GH0, Nominal Width|5 mm, Connection| 1/8, Flow Rate|600 l/min
Nominal width 5.0 mm, material: 1.4301, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: FPM (Viton) This one-hand coupling with automatic 5-point ball locking system with spring-loaded release sleeve. This system is used in the food industry where a mixing up of medias has to be ruled out. Achieved this is done through a coding. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Seals are FDA compliant. Material coupling: back part, sleeve, coupler body and valve stainless steel AISI 304. Seal fluororubber FPM ( FDA comliant). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 316. Material plug: stainleass steel AISI 304 Nominal width 5.0 mm, 1.4301, single shut off, male thread DIN228/1, 1/8, seal: FPM (Viton)
Nominal Width: 5 mm 5 Connection: 1/8 1/8 Flow Rate: 600 l/min 600
more Details
SERIES 090.0A
coupling, octagonal, Article: N9470
Image similar to the original Article: N9470, Nominal Width|5 mm, Connection| 1/8, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection: 1/8 1/8 Flow Rate: 600 l/min 600
more Details
SERIES 090.0S
coupling, hexagonal, Article: N0GG0
Image similar to the original Article: N0GG0, Nominal Width|5 mm, Connection| 1/8, Flow Rate|600 l/min
Nominal width 5.0 mm, material: 1.4301, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: FPM (Viton) This one-hand coupling with automatic 5-point ball locking system with spring-loaded release sleeve. This system is used in the food industry where a mixing up of medias has to be ruled out. Achieved this is done through a coding. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Seals are FDA compliant. Material coupling: back part, sleeve, coupler body and valve stainless steel AISI 304. Seal fluororubber FPM ( FDA comliant). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 316. Material plug: stainleass steel AISI 304 Nominal width 5.0 mm, 1.4301, single shut off, male thread DIN228/1, 1/8, seal: FPM (Viton)
Nominal Width: 5 mm 5 Connection: 1/8 1/8 Flow Rate: 600 l/min 600
more Details
SERIES 090.0S
coupling, hexagonal, Article: N9460
Image similar to the original Article: N9460, Nominal Width|5 mm, Connection| 1/8, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection: 1/8 1/8 Flow Rate: 600 l/min 600
more Details
SERIES 100.C0
coupling, self venting coupling, Article: N77J0
Image similar to the original Article: N77J0, Nominal Width|7.8 mm, Connection| 3/8, Flow Rate|1,350 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 3/8, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic grippy slide valve with three functions: 1. Automatic locking of the plug. 2. Switch to the venting state. 3. Unlock the coupling from the vented state. * in points 1 and 2, the movement sequences are carried out under operating pressure. To connect plug and coupling, the plug has to be pressed into the locked state against the pressurized valve. To release the pressurized connection, the release sleeve has to be phushed into direction of the coupling. The plug moves automaticly from the locked into the vented state and the compressed air still present on the plug side can be vented through the coupling. Only now can the plug be safely removed by pulling back the release sleeve. Material coupling: back part, sleeve, coupler body brass nickel plated. Valve brass. Support washer and sleeve-cover plastic. Seal NBR (Buna N) spring and circlip stainless steel AISI 301. Bolts and balls stainless steel AISI 420. Material plug: steel hardend zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 3/8, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 3/8 3/8 Flow Rate: 1,350 l/min 1,350
more Details
SERIES 125.F0
coupling, self venting safty coupling BiTec, Article: NB140
Image similar to the original Article: NB140, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,050 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/4, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic slide valve with two functions: 1. Establish flow while simultaneously securing the unlocking sleeve. 2. Shut off the flow while simultaneously venting and releasing the unlocking sleeve Coupled by pressing in the connector. Once this has audibly locked into place, the sliding sleeve can be used and the coupling can release the line pressure. Return the sliding sleeve to its starting position to switch the connector/hose connection to an unpressurised state. This will bleed any compressed air on the connector side. The connector can then be removed safely by pushing back the release sleeve. Material coupling: back part, sleeve and coupler body brass nickel plated. Sliding sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,050 l/min 2,050
more Details
SERIES 100.B0
coupling, Basic, Article: N8840
Image similar to the original Article: N8840, Nominal Width|7.2 mm, Connection| 3/8, Flow Rate|875 l/min
Nominal width 7.2 mm, material: brass, single shut off, connection type: male thread DIN228/1, connection size: 3/8, seal: NBR (Perbunan) One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling. Material Coupling: back part, sleeve, coupler body and valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 420. Material plug: brass Nominal width 7.2 mm, brass, single shut off, male thread DIN228/1, 3/8, seal: NBR (Perbunan)
Nominal Width: 7.2 mm 7.2 Connection: 3/8 3/8 Flow Rate: 875 l/min 875
more Details
SERIES 126.00
plug, Article: OMF62
Image similar to the original Article: OMF62, Nominal Width|7.8 mm, Connection|LW9, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: steel, surface: zinc-plated, connection type: hose connection, connection size: LW9 One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated. Nominal width 7.8 mm, steel, surface: zinc-plated, hose connection, LW9
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 090.0A
plug, octagonal, Article: NYG30
Image similar to the original Article: NYG30, Nominal Width|5 mm, Connection| 1/8, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection: 1/8 1/8 Flow Rate: 600 l/min 600
more Details
SERIES 125.F0
coupling, self venting safty coupling BiTec, Article: NB160
Image similar to the original Article: NB160, Nominal Width|7.8 mm, Connection| 1/2, Flow Rate|2,050 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/2, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic slide valve with two functions: 1. Establish flow while simultaneously securing the unlocking sleeve. 2. Shut off the flow while simultaneously venting and releasing the unlocking sleeve Coupled by pressing in the connector. Once this has audibly locked into place, the sliding sleeve can be used and the coupling can release the line pressure. Return the sliding sleeve to its starting position to switch the connector/hose connection to an unpressurised state. This will bleed any compressed air on the connector side. The connector can then be removed safely by pushing back the release sleeve. Material coupling: back part, sleeve and coupler body brass nickel plated. Sliding sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/2, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/2 1/2 Flow Rate: 2,050 l/min 2,050
more Details
SERIES 126.H0
coupling, protected with second groove, Article: N90D0
Image similar to the original Article: N90D0, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details

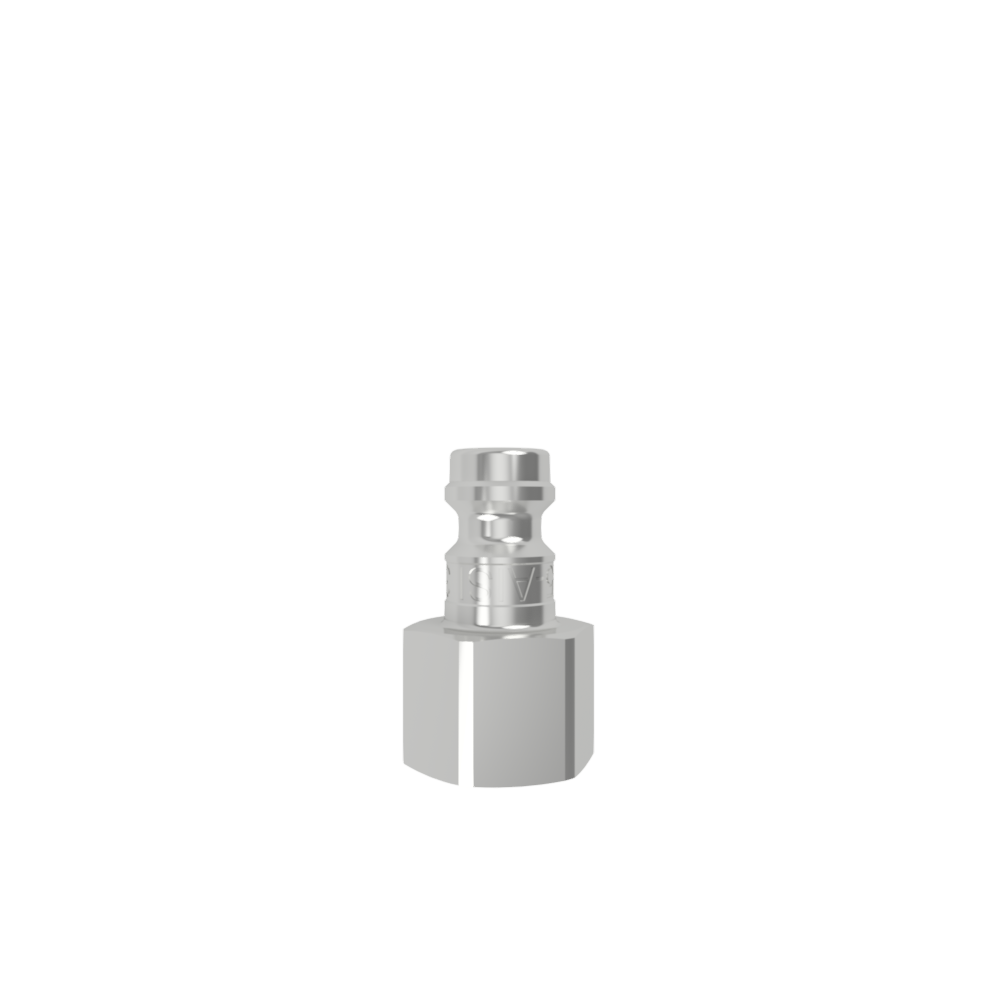

SERIES 090.0S
plug, hexagonal, Article: NYG20
Image similar to the original Article: NYG20, Nominal Width|5 mm, Connection| 1/8, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/8, seal: NBR (Perbunan) This one-hand coupling with automatic 5-point locking is used where a mixing up of medias has to be ruled out. Achieved this is done through a coding with simultaneous color labelling. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back in the direction of the connection. The valve will return to its starting position and push the plug out of the coupling. Material Coupling: back part, coupler body brass nickel plated. Valve brass. Sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated with anotised aluminium ring. Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/8, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection: 1/8 1/8 Flow Rate: 600 l/min 600
more Details
SERIES 100.00
plug, Article: NMBH1
Image similar to the original Article: NMBH1, Nominal Width|7.2 mm, Connection| 1/8, Flow Rate|1,375 l/min
Nominal width 7.2 mm, material: 1.4305, connection type: male thread DIN228/1, connection size: 1/8 One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling. Material Coupling: back part, sleeve, coupler body and valve are made of stainless steel AISI 303. Seal FPM (Viton). Spring and circlip stainless steel AISI 301. Bolt stainless steel AISI 316. Material plug: stainless steel AISI 303 Nominal width 7.2 mm, 1.4305, male thread DIN228/1, 1/8
Nominal Width: 7.2 mm 7.2 Connection: 1/8 1/8 Flow Rate: 1,375 l/min 1,375
more Details

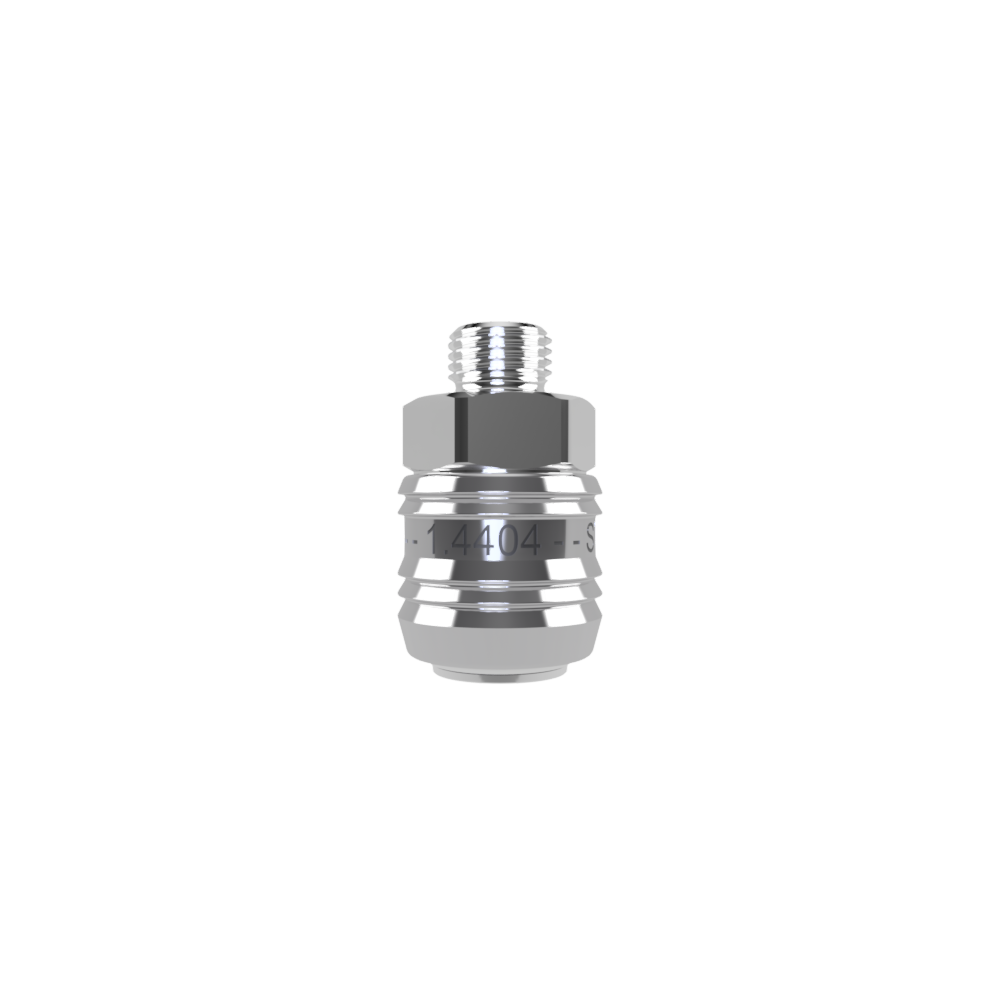

SERIES 100.00
coupling, Article: N79T0
Image similar to the original Article: N79T0, Nominal Width|7.2 mm, Connection| 1/2, Flow Rate|1,375 l/min
Nominal width 7.2 mm, material: 1.4404, surface: electropolish, single shut off, connection type: male thread DIN228/1, connection size: 1/2, seal: FPM (Viton) One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling. Material Coupling: back part, sleeve, coupler body and valve are made of stainless steel AISI 316. Seal FPM (Viton). Spring and circlip stainless steel AISI 316. Bolts stainless steel AISI 316. Material plug: stainless steel AISI 316 Nominal width 7.2 mm, 1.4404, surface: electropolish, single shut off, male thread DIN228/1, 1/2, seal: FPM (Viton)
Nominal Width: 7.2 mm 7.2 Connection: 1/2 1/2 Flow Rate: 1,375 l/min 1,375
more Details

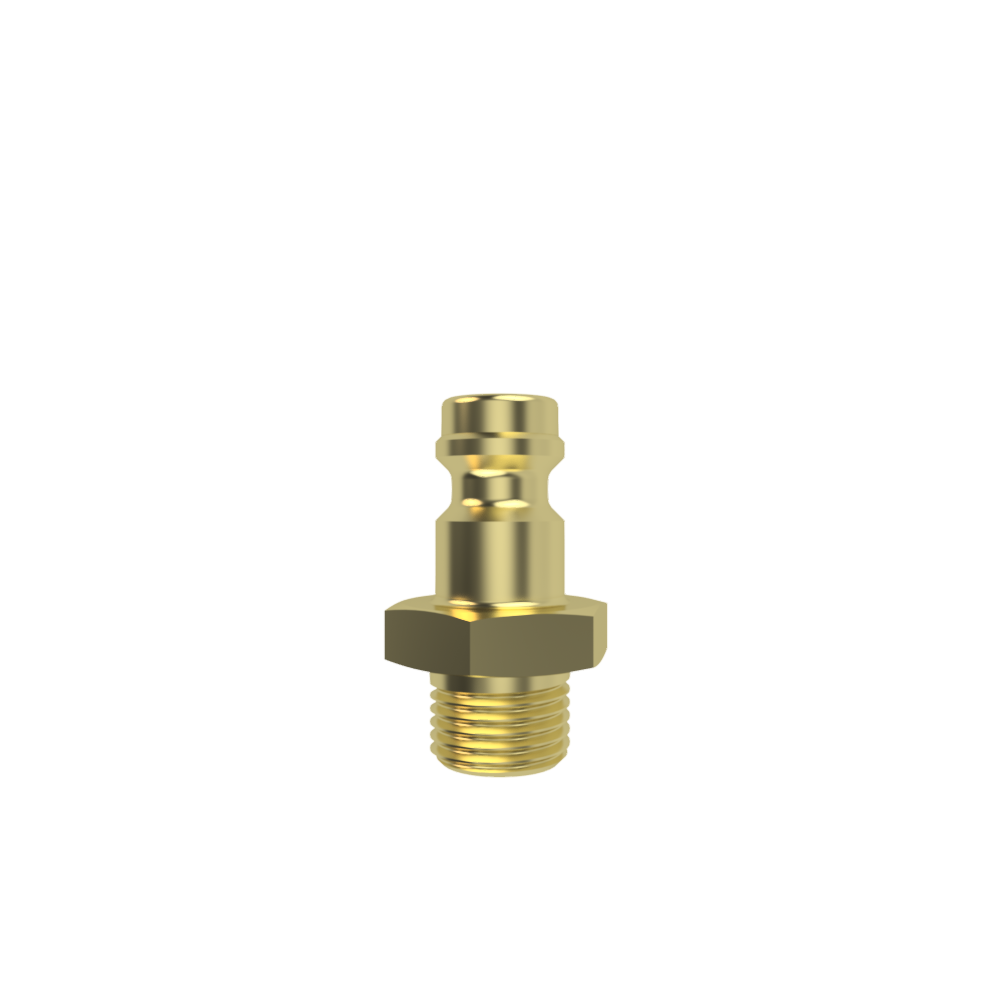

SERIES 090.00
plug, Article: NMAQ0
Image similar to the original Article: NMAQ0, Nominal Width|5 mm, Connection| 1/4, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, connection type: male thread DIN228/1, connection size: 1/4 One-hand coupling with automatic 5-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: connection, base body, valve and sleeve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass. Nominal width 5.0 mm, brass, male thread DIN228/1, 1/4
Nominal Width: 5 mm 5 Connection: 1/4 1/4 Flow Rate: 600 l/min 600
more Details
SERIES 100.B0
coupling, Basic, Article: N8870
Image similar to the original Article: N8870, Nominal Width|7.2 mm, Connection| 3/8, Flow Rate|875 l/min
Nominal width 7.2 mm, material: brass, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 3/8, seal: NBR (Perbunan) One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling. Material Coupling: back part, sleeve, coupler body and valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 420. Material plug: brass Nominal width 7.2 mm, brass, single shut off, female thread DIN228/1 (BSP), 3/8, seal: NBR (Perbunan)
Nominal Width: 7.2 mm 7.2 Connection: 3/8 3/8 Flow Rate: 875 l/min 875
more Details
SERIES 125.F0
coupling, self venting safty coupling BiTec, Article: NB240
Image similar to the original Article: NB240, Nominal Width|7.8 mm, Connection|LW13, Flow Rate|2,050 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW13, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic slide valve with two functions: 1. Establish flow while simultaneously securing the unlocking sleeve. 2. Shut off the flow while simultaneously venting and releasing the unlocking sleeve Coupled by pressing in the connector. Once this has audibly locked into place, the sliding sleeve can be used and the coupling can release the line pressure. Return the sliding sleeve to its starting position to switch the connector/hose connection to an unpressurised state. This will bleed any compressed air on the connector side. The connector can then be removed safely by pushing back the release sleeve. Material coupling: back part, sleeve and coupler body brass nickel plated. Sliding sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW13, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW13 LW13 Flow Rate: 2,050 l/min 2,050
more Details
SERIES 090.00
coupling, Article: N0FK0
Image similar to the original Article: N0FK0, Nominal Width|5 mm, Connection|LW6, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, single shut off, connection type: hose connection, connection size: LW6, seal: NBR (Perbunan) One-hand coupling with automatic 5-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: connection, base body, valve and sleeve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass. Nominal width 5.0 mm, brass, single shut off, hose connection, LW6, seal: NBR (Perbunan)
Nominal Width: 5 mm 5 Connection: LW6 LW6 Flow Rate: 600 l/min 600
more Details
SERIES 050.00
coupling, Article: N0AN0
Image similar to the original Article: N0AN0, Nominal Width|2.7 mm, Connection|LW4, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW4, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW4, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: LW4 LW4 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
coupling, Article: N0AR0
Image similar to the original Article: N0AR0, Nominal Width|2.7 mm, Connection|4x6, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: quick fit connection, connection size: 4x6, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, quick fit connection, 4x6, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: 4x6 4x6 Flow Rate: 120 l/min 120
more Details
SERIES 090.00
plug, Article: NMA70
Image similar to the original Article: NMA70, Nominal Width|5 mm, Connection|LW4, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, connection type: hose connection, connection size: LW4 One-hand coupling with automatic 5-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: connection, base body, valve and sleeve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass. Nominal width 5.0 mm, brass, hose connection, LW4
Nominal Width: 5 mm 5 Connection: LW4 LW4 Flow Rate: 600 l/min 600
more Details
SERIES 100.00
plug, Article: NMBJ1
Image similar to the original Article: NMBJ1, Nominal Width|7.2 mm, Connection| 1/4, Flow Rate|1,375 l/min
Nominal width 7.2 mm, material: 1.4305, connection type: male thread DIN228/1, connection size: 1/4 One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling. Material Coupling: back part, sleeve, coupler body and valve are made of stainless steel AISI 303. Seal FPM (Viton). Spring and circlip stainless steel AISI 301. Bolt stainless steel AISI 316. Material plug: stainless steel AISI 303 Nominal width 7.2 mm, 1.4305, male thread DIN228/1, 1/4
Nominal Width: 7.2 mm 7.2 Connection: 1/4 1/4 Flow Rate: 1,375 l/min 1,375
more Details
SERIES 120.00
coupling, Article: N1K80
Image similar to the original Article: N1K80, Nominal Width|5.5 mm, Connection| 1/2, Flow Rate|680 l/min
Nominal width 5.5 mm, material: brass, single shut off, connection type: male thread DIN228/1, connection size: 1/2, seal: NBR (Perbunan) One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling. Material Coupling: back part, sleeve, coupler body and valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 420. Material plug: brass Nominal width 5.5 mm, brass, single shut off, male thread DIN228/1, 1/2, seal: NBR (Perbunan)Steinconnector 123, Industr. Interchange 1/4″, US-MIL-SPEC-C-4109, ISO 6150 B, Rectus 23 + 24, Rectus 1400/1423, Tema 1400, Cejn 310, Hansen 3000, Faster, Gromelle 600, Parker 20 1/4″ + 30 1/4″, JWL 521 + JWL 531
Nominal Width: 5.5 mm 5.5 Connection: 1/2 1/2 Flow Rate: 680 l/min 680
more Details
SERIES 125.F0
coupling, self venting safty coupling BiTec, Article: NB190
Image similar to the original Article: NB190, Nominal Width|7.8 mm, Connection| 1/2, Flow Rate|2,050 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/2, seal: NBR (Perbunan) Safety bleed valve meets DIN EN ISO 4414 requirements for pneumatic systems. The coupling has an ergonomic slide valve with two functions: 1. Establish flow while simultaneously securing the unlocking sleeve. 2. Shut off the flow while simultaneously venting and releasing the unlocking sleeve Coupled by pressing in the connector. Once this has audibly locked into place, the sliding sleeve can be used and the coupling can release the line pressure. Return the sliding sleeve to its starting position to switch the connector/hose connection to an unpressurised state. This will bleed any compressed air on the connector side. The connector can then be removed safely by pushing back the release sleeve. Material coupling: back part, sleeve and coupler body brass nickel plated. Sliding sleeve aluminium anodised. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel zink plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/2, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/2 1/2 Flow Rate: 2,050 l/min 2,050
more Details
