39 products found.
SERIES 050.00
plug, Article: NYEM0
Image similar to the original Article: NYEM0, Nominal Width|2.7 mm, Connection|LW3, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: panel mount-hose connection, connection size: LW3 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, panel mount-hose connection, LW3
Nominal Width: 2.7 mm 2.7 Connection: LW3 LW3 Flow Rate: 120 l/min 120
more Details
SERIES 126.SL
coupling, protected with special plug, long version no key, Article: N90R0
Image similar to the original Article: N90R0, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 126.H0
coupling, protected with second groove, Article: N90D0
Image similar to the original Article: N90D0, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 050.00
coupling, Article: N0AN0
Image similar to the original Article: N0AN0, Nominal Width|2.7 mm, Connection|LW4, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW4, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW4, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: LW4 LW4 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
plug, Article: NMGY0
Image similar to the original Article: NMGY0, Nominal Width|2.7 mm, Connection| 1/8, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: female thread DIN228/1 (BSP), connection size: 1/8 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, female thread DIN228/1 (BSP), 1/8
Nominal Width: 2.7 mm 2.7 Connection: 1/8 1/8 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
coupling, Article: N0AM0
Image similar to the original Article: N0AM0, Nominal Width|2.7 mm, Connection|LW3, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW3, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW3, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: LW3 LW3 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
plug, Article: NMGZ0
Image similar to the original Article: NMGZ0, Nominal Width|2.7 mm, Connection|LW3, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: hose connection, connection size: LW3 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, hose connection, LW3
Nominal Width: 2.7 mm 2.7 Connection: LW3 LW3 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
coupling, Article: N81A0
Image similar to the original Article: N81A0, Nominal Width|2.7 mm, Connection|M5, Flow Rate|120 l/min
Nominal width 2.7 mm, material: 1.4305, single shut off, connection type: male thread metric, connection size: M5, seal: FPM (Viton) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling and plug: back part, sleeve, coupler body, valve and plug stainless steel AISI 303. Seal FPM (Viton). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 316. Material plug: stainless steel AISI 303 Nominal width 2.7 mm, 1.4305, single shut off, male thread metric, M5, seal: FPM (Viton)
Nominal Width: 2.7 mm 2.7 Connection: M5 M5 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
plug, Article: NMGW0
Image similar to the original Article: NMGW0, Nominal Width|2.7 mm, Connection| 1/8, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: male thread DIN228/1, connection size: 1/8 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, male thread DIN228/1, 1/8
Nominal Width: 2.7 mm 2.7 Connection: 1/8 1/8 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
plug, Article: NMG00
Image similar to the original Article: NMG00, Nominal Width|2.7 mm, Connection|LW4, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: hose connection, connection size: LW4 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, hose connection, LW4
Nominal Width: 2.7 mm 2.7 Connection: LW4 LW4 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
plug, Article: NMG10
Image similar to the original Article: NMG10, Nominal Width|2.7 mm, Connection|LW5, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, connection type: hose connection, connection size: LW5 One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, hose connection, LW5
Nominal Width: 2.7 mm 2.7 Connection: LW5 LW5 Flow Rate: 120 l/min 120
more Details

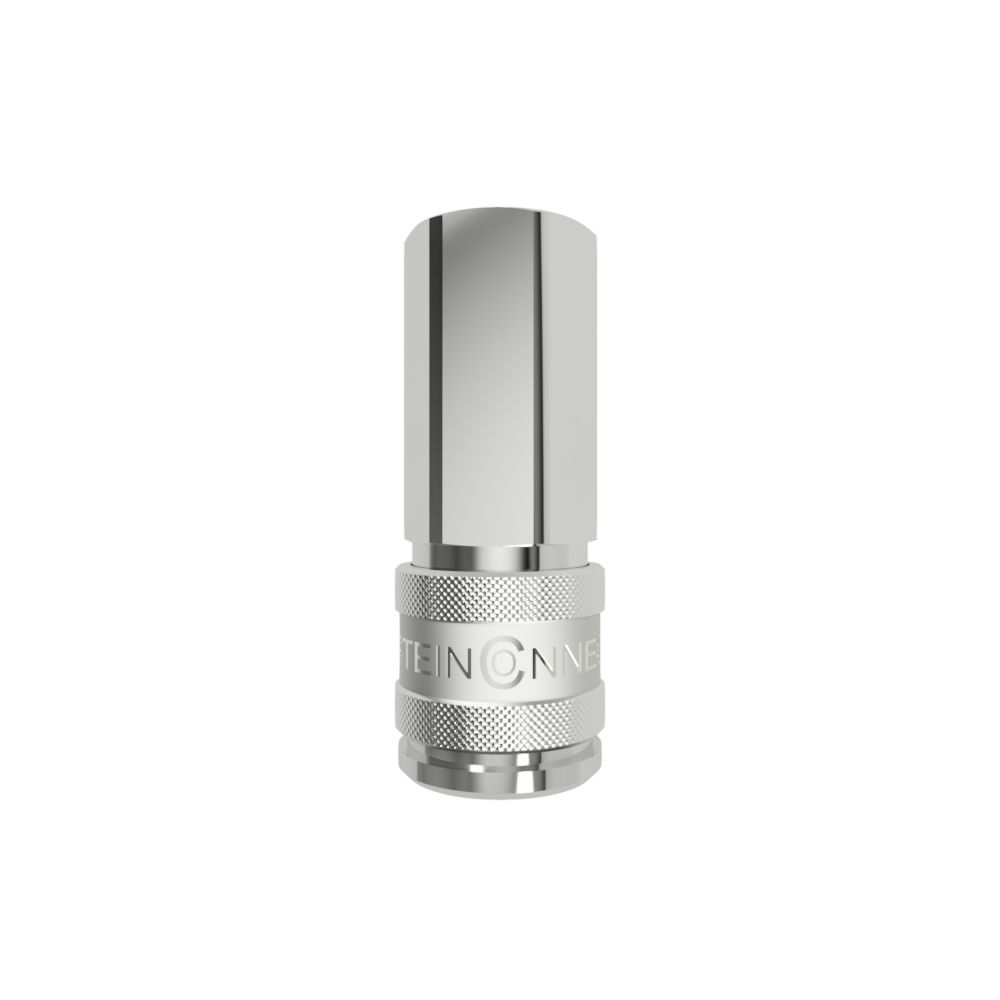

SERIES 126.S0
coupling, protected with special plug, Article: N90N2
Image similar to the original Article: N90N2, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/4, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 126.H0
plug, protected with second groove, Article: OMKC0
Image similar to the original Article: OMKC0, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: steel, surface: zinc-plated, connection type: male thread DIN2999 (BSPT), connection size: 1/4 Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, steel, surface: zinc-plated, male thread DIN2999 (BSPT), 1/4
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 126.H0
plug, protected with second groove, Article: NMS10
Image similar to the original Article: NMS10, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: steel, surface: zinc-plated, connection type: female thread DIN228/1 (BSP), connection size: 1/4 Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, steel, surface: zinc-plated, female thread DIN228/1 (BSP), 1/4
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 050.00
coupling, Article: N0AD0
Image similar to the original Article: N0AD0, Nominal Width|2.7 mm, Connection| 1/8, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN228/1, connection size: 1/8, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/8, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: 1/8 1/8 Flow Rate: 120 l/min 120
more Details
SERIES 050.00
coupling, Article: N0AH0
Image similar to the original Article: N0AH0, Nominal Width|2.7 mm, Connection| 1/8, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 1/8, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/8, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: 1/8 1/8 Flow Rate: 120 l/min 120
more Details

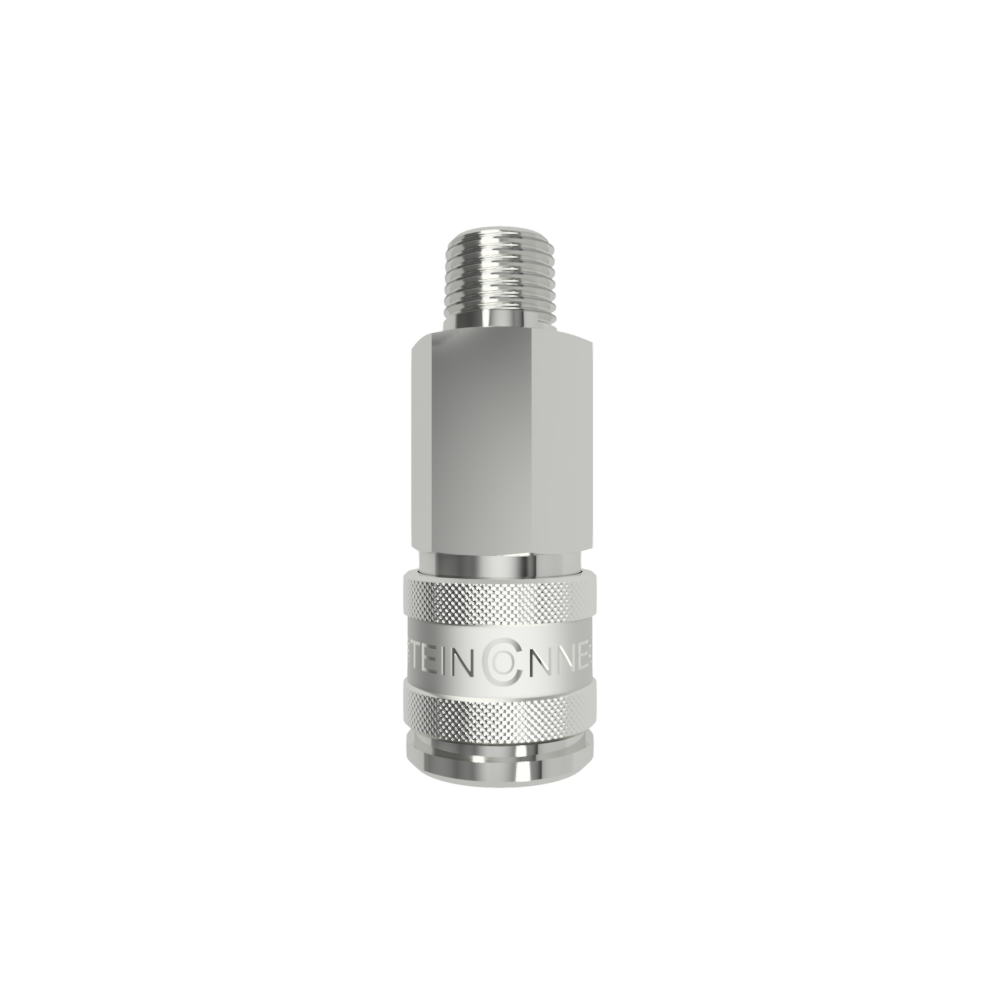

SERIES 126.S0
coupling, protected with special plug, Article: N9090
Image similar to the original Article: N9090, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: male thread DIN2999 (BSPT), connection size: 1/4, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/4, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details

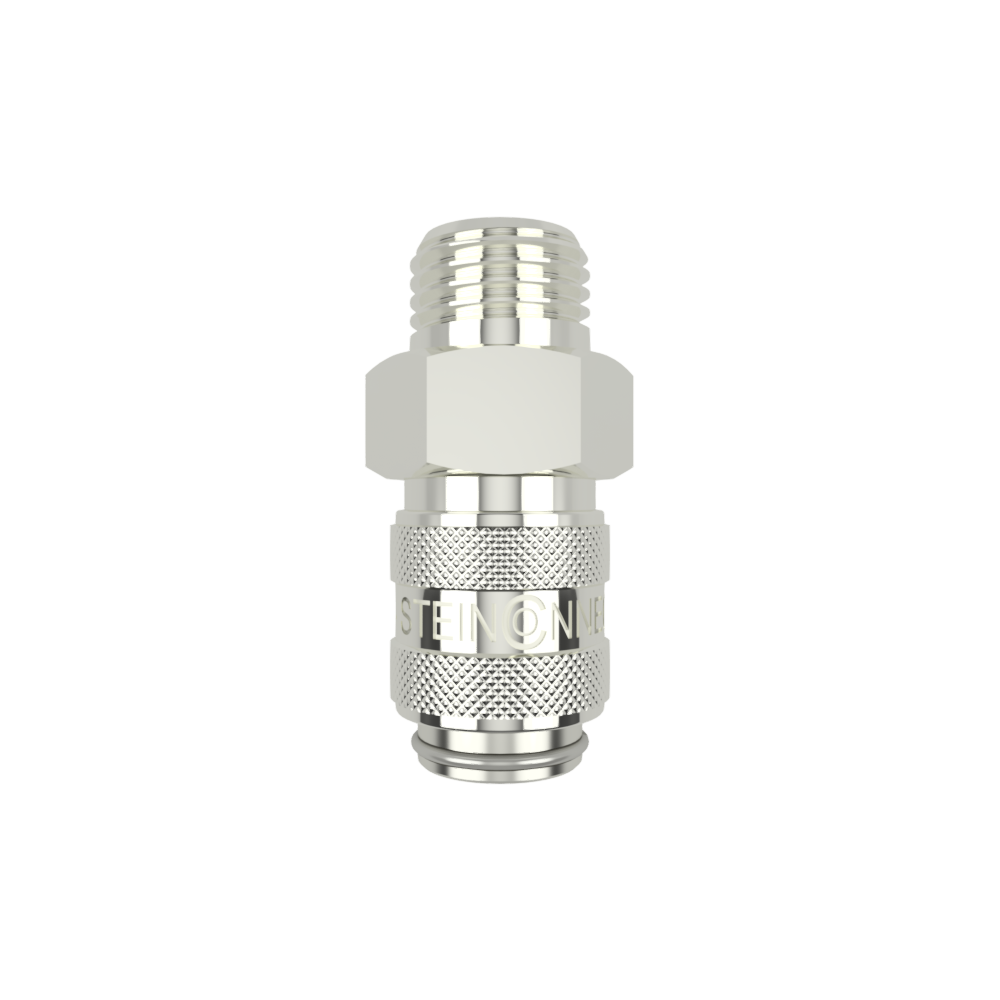

SERIES 090.S0
plug, protected with special plug, Article: NMDS1
Image similar to the original Article: NMDS1, Nominal Width|5 mm, Connection| 1/4, Flow Rate|600 l/min
Nominal width 5.0 mm, material: brass, surface: nickel plated, connection type: male thread DIN228/1, connection size: 1/4 Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 5.0 mm, brass, surface: nickel plated, male thread DIN228/1, 1/4
Nominal Width: 5 mm 5 Connection: 1/4 1/4 Flow Rate: 600 l/min 600
more Details
SERIES 050.00
coupling, Article: N0A00
Image similar to the original Article: N0A00, Nominal Width|2.7 mm, Connection|LW4, Flow Rate|120 l/min
Nominal width 2.7 mm, material: brass, surface: nickel plated, single shut off, connection type: panel mount-hose connection, connection size: LW4, seal: NBR (Perbunan) One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling. Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, panel mount-hose connection, LW4, seal: NBR (Perbunan)
Nominal Width: 2.7 mm 2.7 Connection: LW4 LW4 Flow Rate: 120 l/min 120
more Details
SERIES 126.S0
coupling, protected with special plug, Article: N90A0
Image similar to the original Article: N90A0, Nominal Width|7.8 mm, Connection|LW9, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW9, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW9, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 127.H0
coupling, protected with second groove, Article: N89D2
Image similar to the original Article: N89D2, Nominal Width|7.8 mm, Connection| 3/8, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: female thread DIN228/1 (BSP), connection size: 3/8, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 3/8, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: 3/8 3/8 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 126.H0
coupling, protected with second groove, Article: N90E0
Image similar to the original Article: N90E0, Nominal Width|7.8 mm, Connection|LW9, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW9, seal: NBR (Perbunan) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW9, seal: NBR (Perbunan)
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 126.H0
coupling, protected with second groove, Article: N8750
Image similar to the original Article: N8750, Nominal Width|7.8 mm, Connection|LW9, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW9, seal: FPM (Viton) Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material coupling: back part, coupler body, sleeve brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardened zink plated. Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW9, seal: FPM (Viton)
Nominal Width: 7.8 mm 7.8 Connection: LW9 LW9 Flow Rate: 2,030 l/min 2,030
more Details
SERIES 127.H0
plug, protected with second groove, Article: NMR20
Image similar to the original Article: NMR20, Nominal Width|7.8 mm, Connection| 1/4, Flow Rate|2,030 l/min
Nominal width 7.8 mm, material: brass, surface: nickel plated, connection type: female thread DIN228/1 (BSP), connection size: 1/4 Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling. Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated Nominal width 7.8 mm, brass, surface: nickel plated, female thread DIN228/1 (BSP), 1/4
Nominal Width: 7.8 mm 7.8 Connection: 1/4 1/4 Flow Rate: 2,030 l/min 2,030
more Details
