SERIES 120.00
coupling
Reference Number: 120.00.KV0S.AG014.M0P
Technique: One-hand coupling with 2-point bolt locking. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position and pushes the plug out of the coupling.
Technical Characteristics: Material Coupling: back part, sleeve, coupler body and valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 420. Material plug: brass
Compatibility: Steinconnector 123, Industr. Interchange 1/4″, US-MIL-SPEC-C-4109, ISO 6150 B, Rectus 23 + 24, Rectus 1400/1423, Tema 1400, Cejn 310, Hansen 3000, Faster, Gromelle 600, Parker 20 1/4″ + 30 1/4″, JWL 521 + JWL 531
| Series | 120 |
|---|---|
| Nominal Width | 5.5 mm |
| Type | coupling |
| Valve | single shut off |
| Seal | NBR (Perbunan) |
| Surface | nature |
| Material | brass |
| Connection Size | male thread DIN228/1 |
| Connection Type | 1/4 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 680 l/min |
| Handling | One-hand coupling |
| Industries | Operating material |
| Vacuum suitable 0.95 bar | Yes |
| Options | Coupling available with other seals on request. |
 |

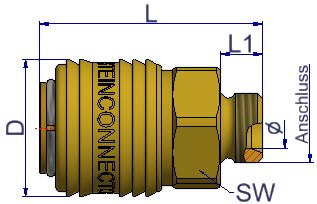

Dimensions / Details
|
Fitting Products |
||||
 |

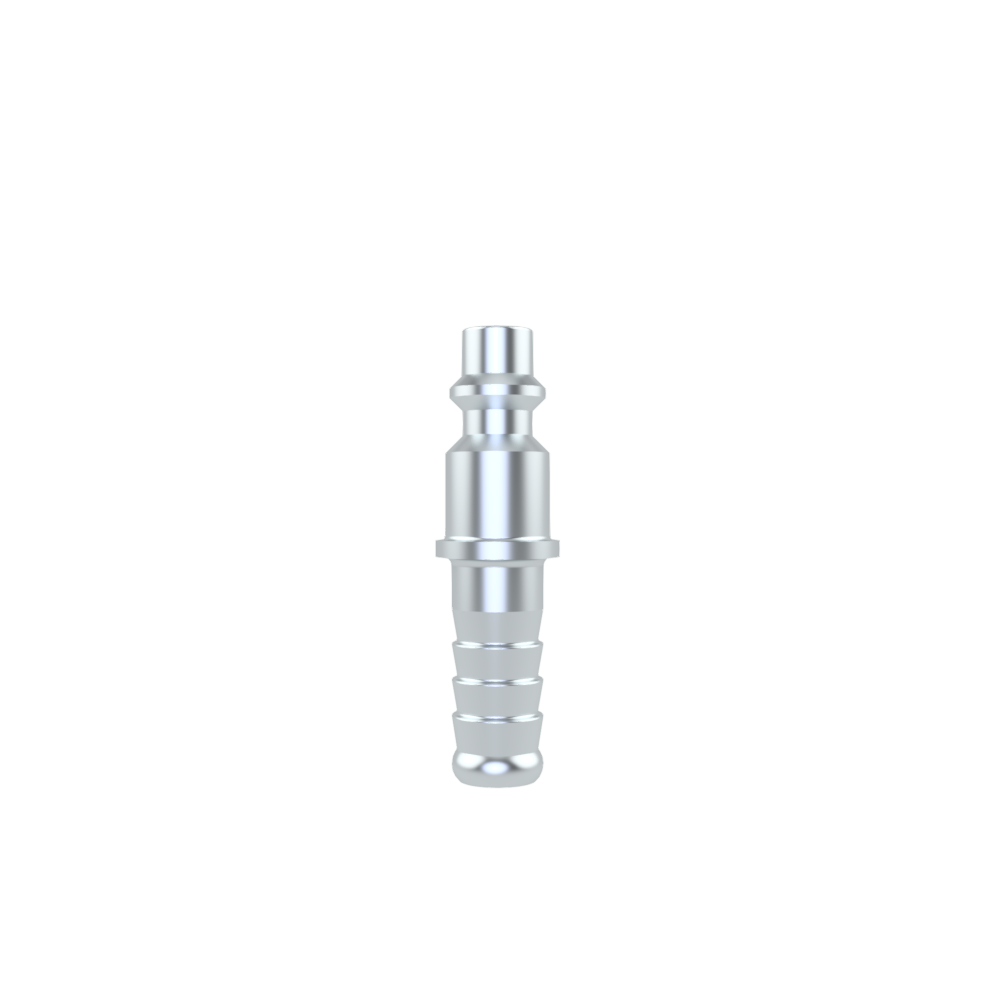

Series 123.00 |
Article OMG00 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, hose connection, LW4 |
|
 |

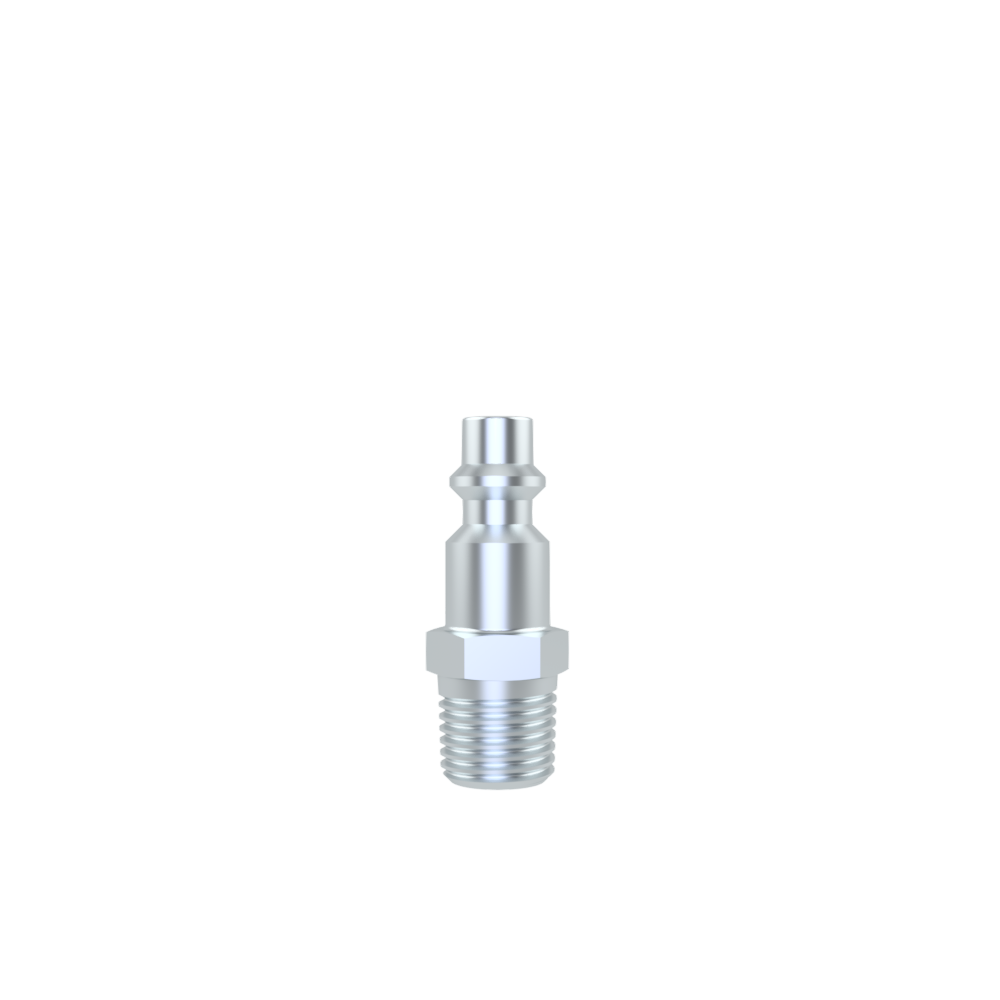

Series 123.00 |
Article OMGB0 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, male thread DIN2999 (BSPT), 1/4 |
|
 |

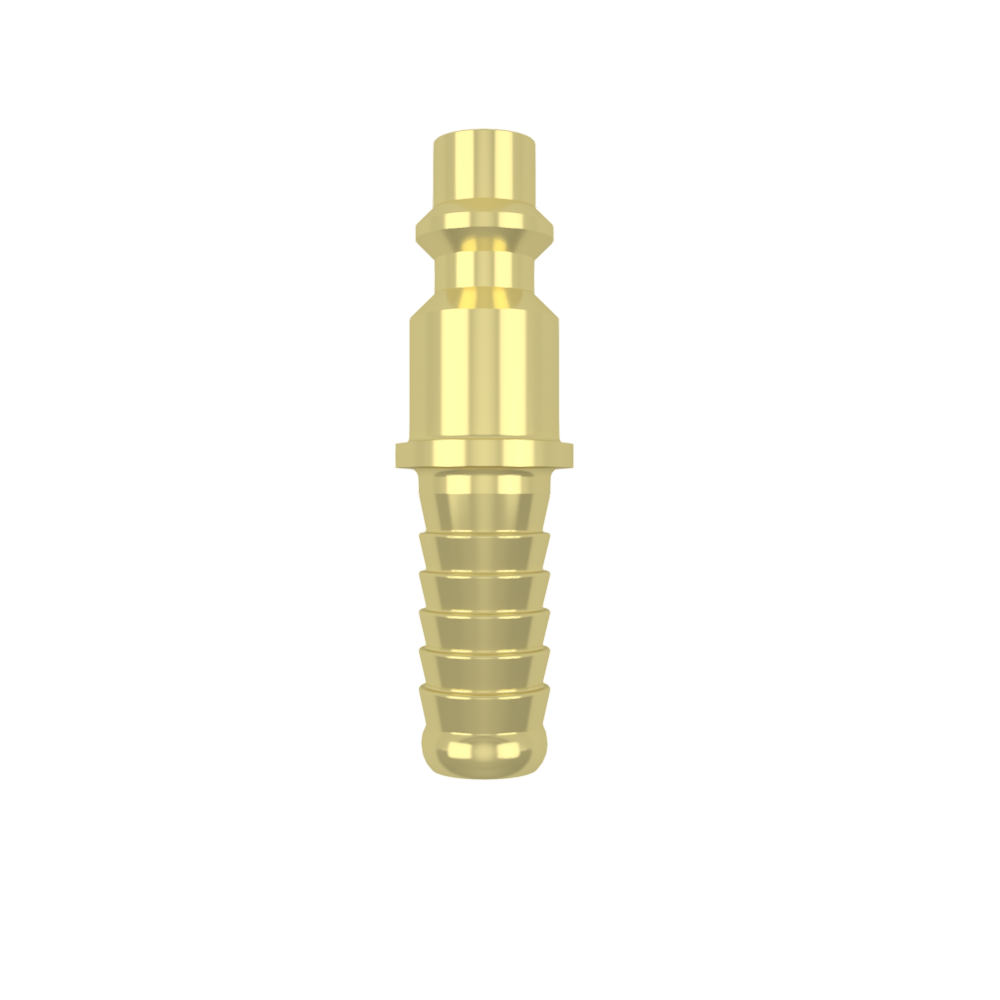

Series 120.00 |
Article OMA40 plug |
Beschreibung Nominal width 5.5 mm, brass, hose connection, LW9 |
|
|
Series 123.00 |
Article OMGD0 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, male thread DIN2999 (BSPT), 1/2 |
|
 |

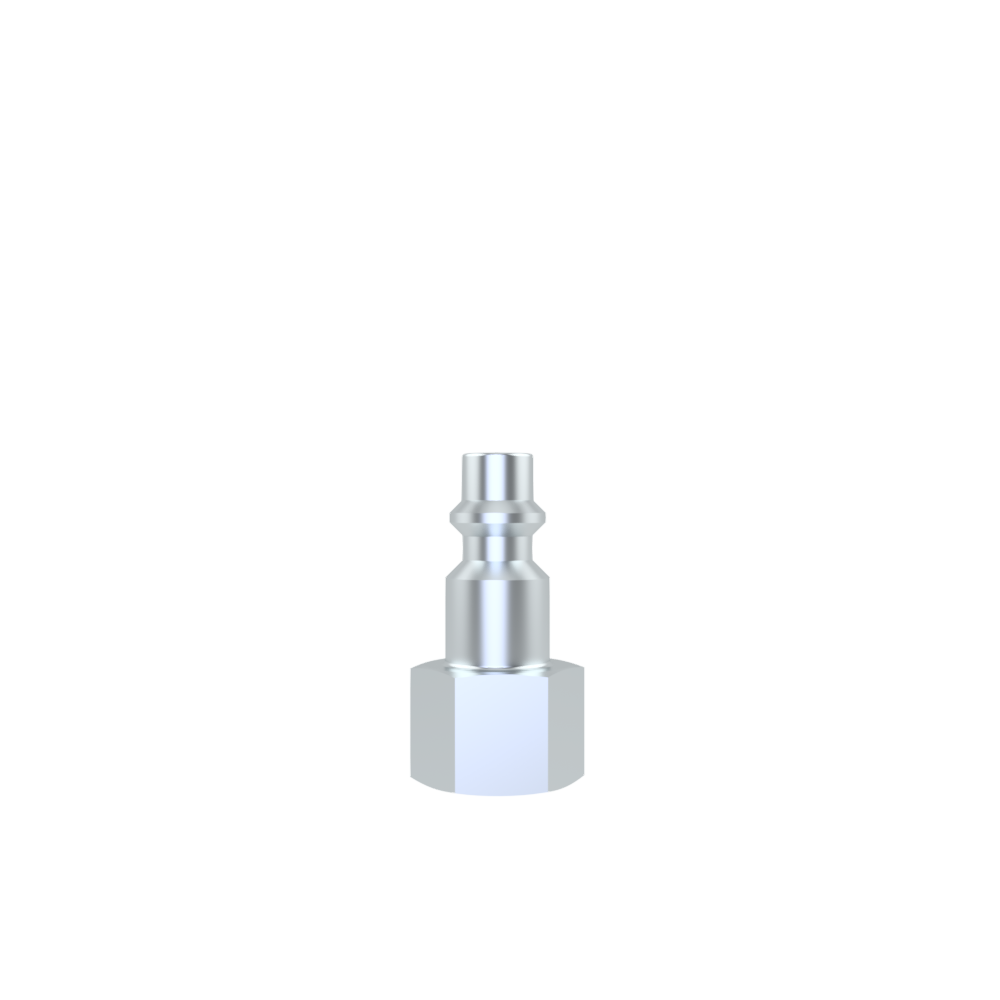

Series 123.00 |
Article OMGP0 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, female thread DIN228/1 (BSP), 1/4 |
|
|
Series 123.00 |
Article OMG20 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, hose connection, LW8 |
|
 |

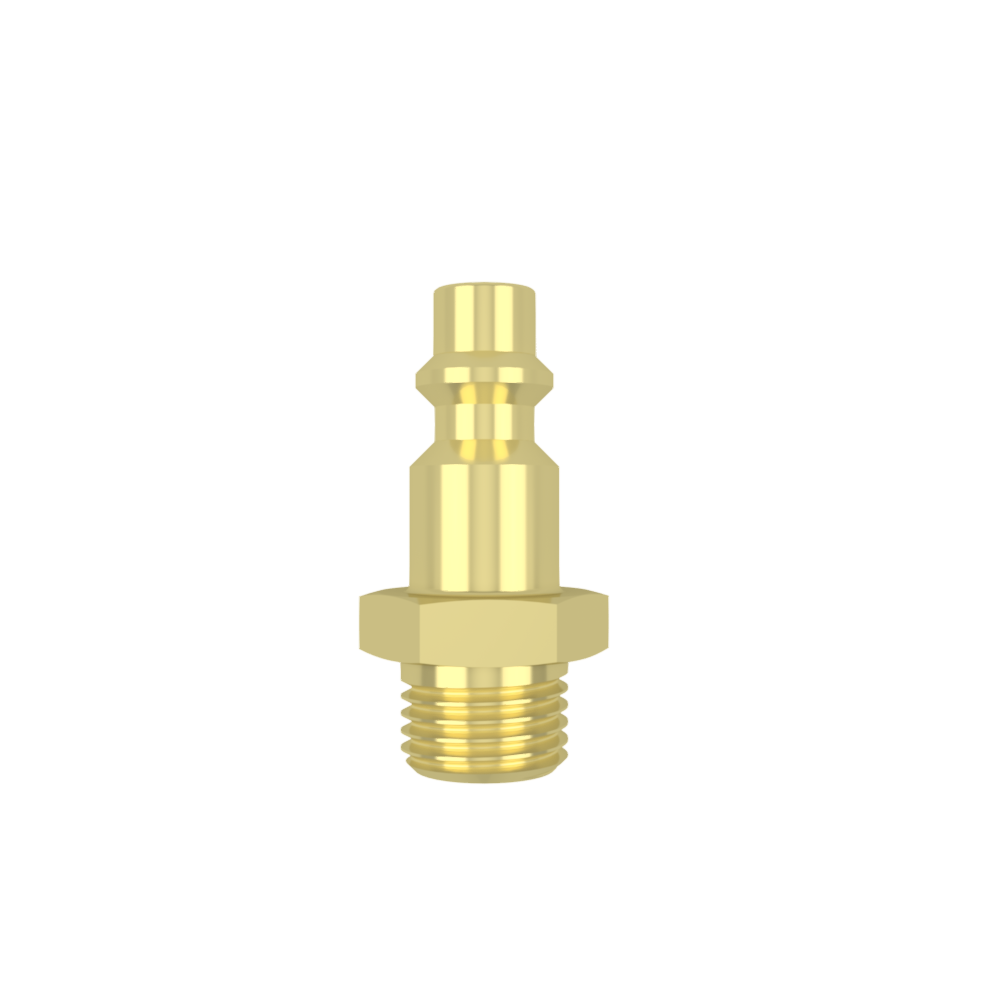

Series 120.00 |
Article OMAC0 plug |
Beschreibung Nominal width 5.5 mm, brass, male thread DIN228/1, 3/8 |
|
 |

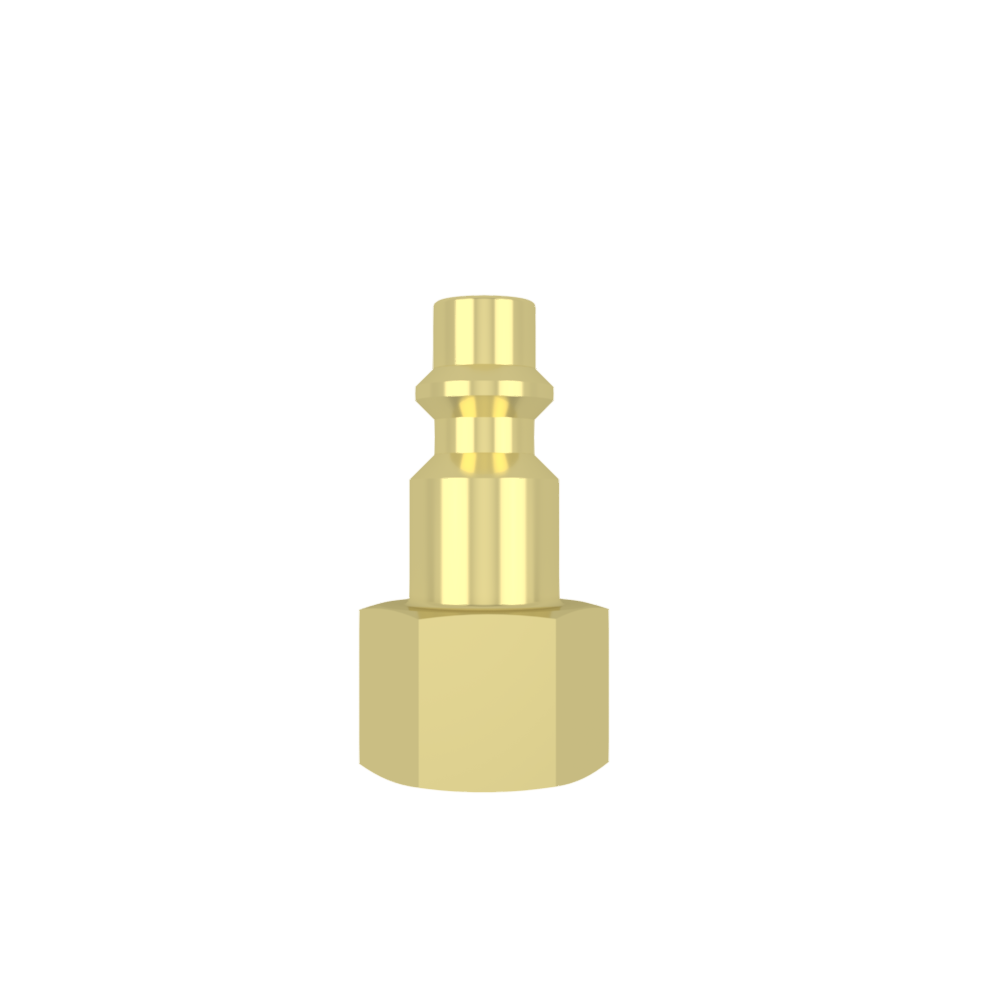

Series 120.00 |
Article OMAQ0 plug |
Beschreibung Nominal width 5.5 mm, brass, female thread DIN228/1 (BSP), 1/4 |
|
 |

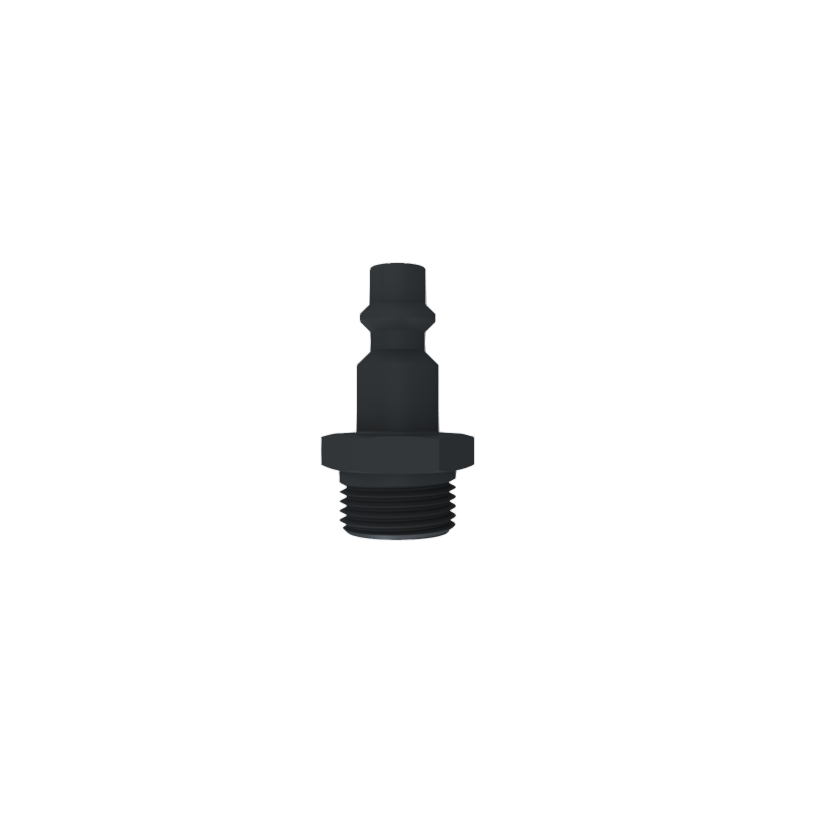

Series 120.00 |
Article OMAC2 plug |
Beschreibung Nominal width 5.5 mm, brass, surface: zinc-plated, male thread DIN228/1, 3/8 |
|
|
Series 120.00 |
Article OMAR0 plug |
Beschreibung Nominal width 5.5 mm, brass, female thread DIN228/1 (BSP), 3/8 |
|
|
Series 120.00 |
Article OMA50 plug |
Beschreibung Nominal width 5.5 mm, brass, hose connection, LW10 |
|
 |

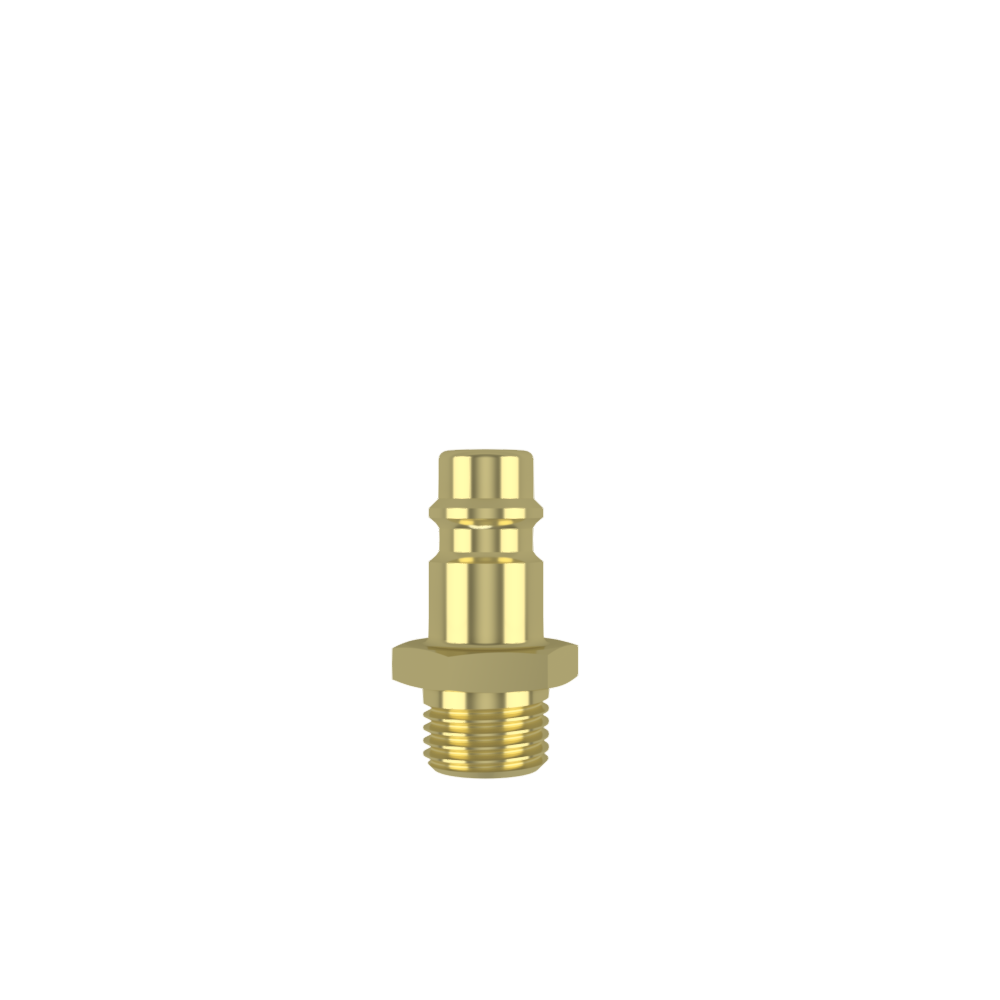

Series 120.00 |
Article OMAB0 plug |
Beschreibung Nominal width 5.5 mm, brass, male thread DIN228/1, 1/4 |
|
|
Series 123.00 |
Article OMG10 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, hose connection, LW6 |
|
|
Series 123.00 |
Article OMGA0 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, male thread DIN2999 (BSPT), 1/8 |
|
|
Series 120.00 |
Article OMA20 plug |
Beschreibung Nominal width 5.5 mm, brass, hose connection, LW6 |
|
|
Series 120.00 |
Article OMAP0 plug |
Beschreibung Nominal width 5.5 mm, brass, female thread DIN228/1 (BSP), 1/8 |
|
|
Series 120.00 |
Article OMAD0 plug |
Beschreibung Nominal width 5.5 mm, brass, male thread DIN228/1, 1/2 |
|
|
Series 120.00 |
Article OMA60 plug |
Beschreibung Nominal width 5.5 mm, brass, hose connection, LW13 |
|
|
Series 123.00 |
Article OMGR0 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, female thread DIN228/1 (BSP), 1/2 |
|
 |

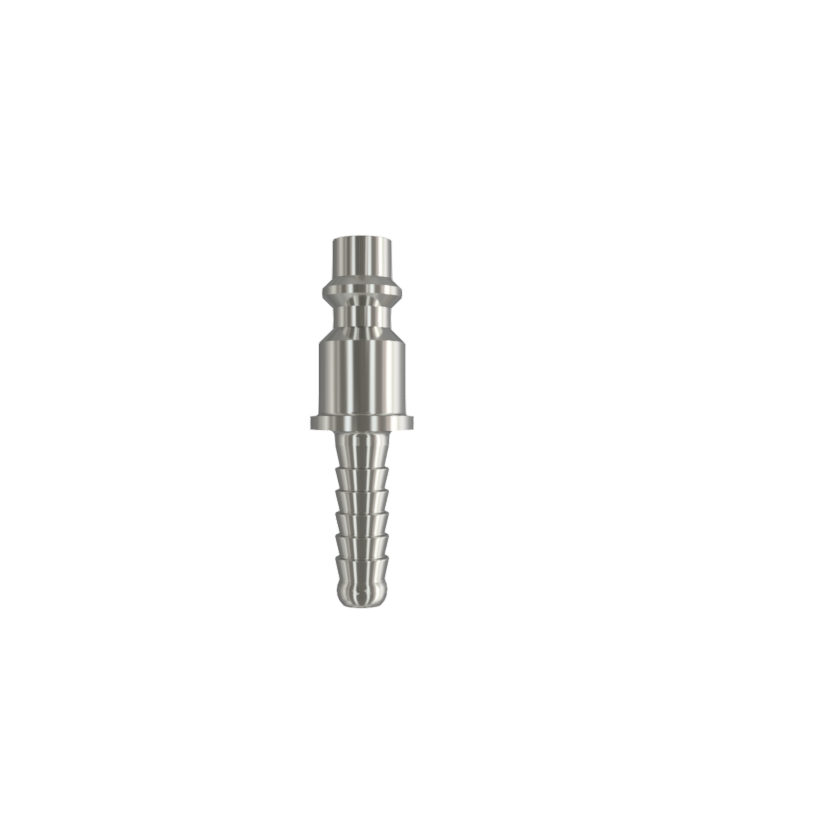

Series 120.00 |
Article OMA22 plug |
Beschreibung Nominal width 5.5 mm, brass, surface: nickel plated, hose connection, LW6 |
|
|
Series 120.00 |
Article OMA30 plug |
Beschreibung Nominal width 5.5 mm, brass, hose connection, LW8 |
|
|
Series 120.00 |
Article OMA10 plug |
Beschreibung Nominal width 5.5 mm, brass, hose connection, LW4 |
|
|
Series 123.00 |
Article OMG30 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, hose connection, LW9 |
|
|
Series 123.00 |
Article OMGC0 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, male thread DIN2999 (BSPT), 3/8 |
|
|
Series 120.00 |
Article OMAA0 plug |
Beschreibung Nominal width 5.5 mm, brass, male thread DIN228/1, 1/8 |
|
|
Series 120.00 |
Article OMAS0 plug |
Beschreibung Nominal width 5.5 mm, brass, female thread DIN228/1 (BSP), 1/2 |
|
|
Series 123.00 |
Article OMG40 plug |
Beschreibung Nominal width 5.5 mm, steel, surface: zinc-plated, hose connection, LW10 |
|
