SERIES
125.V0
coupling
Reference Number: 125.V0.KVNS.ST006.MNP
Technique: One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling.
Technical Characteristics: Material coupling: back part, coupler body and nut brass nickel plated. Valve brass. Sleeve steel nickel plated, Seals NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated.
| Series | 125 |
|---|---|
| Nominal Width | 7.8 mm |
| Type | coupling |
| Valve | single shut off |
| Seal | NBR (Perbunan) |
| Surface | nickel plated |
| Material | brass |
| Connection Size | hose connection |
| Connection Type | LW6 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 2,030 l/min |
| Handling | One-hand coupling |
| Vacuum suitable 0.95 bar | Yes |
 |

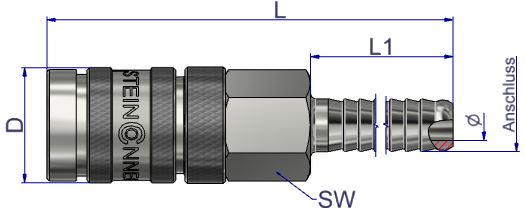

Dimensions / Details
|
