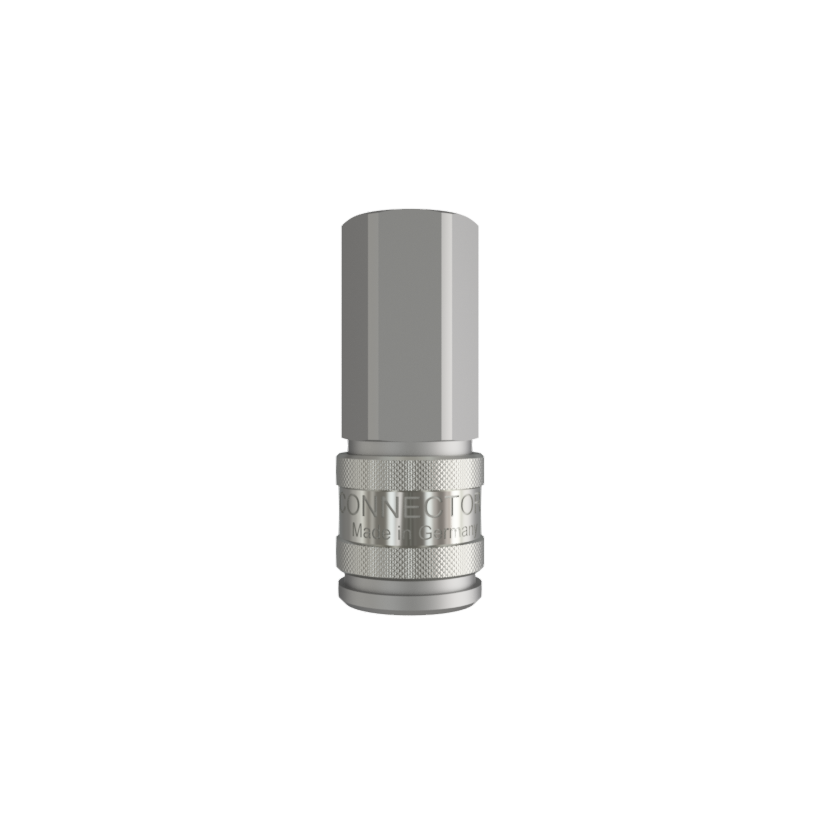

Image similar to the original
SERIES
126.S0
coupling
Reference Number: 126.S0.KV0S.IG014.30P
Technique: Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling.
Technical Characteristics: Material coupling and plug: connections, base body, Sleeve, plug and valves stainless steel AISI 303. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420.
| Series | 126 |
|---|---|
| Nominal Width | 7.8 mm |
| Type | coupling |
| Valve | single shut off |
| Seal | NBR (Perbunan) |
| Surface | nature |
| Material | 1.4305 |
| Connection Size | female thread DIN228/1 (BSP) |
| Connection Type | 1/4 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 2,030 l/min |
| Handling | Two-hand coupling |
| Vacuum suitable 0.95 bar | Yes |
 |

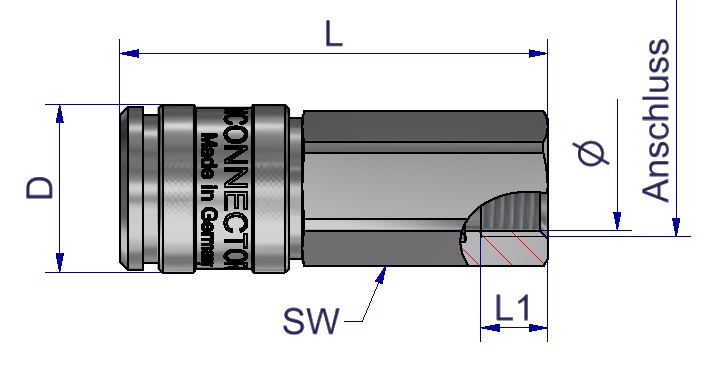

Dimensions / Details
|
