SERIES 126.00
coupling

Article: NB350
Reference Number: 126.00.KVNS.ST010.MNP
Description: Nominal width 7.8 mm, material: brass, surface: nickel plated, single shut off, connection type: hose connection, connection size: LW10, seal: NBR (Perbunan)
Technique: One-hand coupling with automatic 5-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling.
Technical Characteristics: Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated.
Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, hose connection, LW10, seal: NBR (Perbunan)
Series126
Nominal Width7.8 mm
Typecoupling
Valvesingle shut off
SealNBR (Perbunan)
Surfacenickel plated
Materialbrass
Connection Sizehose connection
Connection TypeLW10
Operating Temperaturefrom -20 °C to 100 °C
Pressure Range max.35 bar
Flow Rate2,030 l/min
HandlingOne-hand coupling
IndustriesOperating material, Respiratory protection
Vacuum suitable 0.95 barYes
OptionsCoupling available with other seals on request.

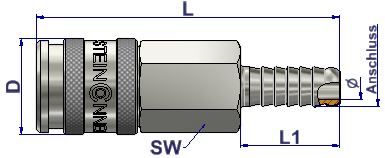

Dimensions / Details
ConnectionLW10
Ø (Diameter inside)8 mm
D (Diameter outside)23 mm
L (length)72 mm
L1 (length)24 mm
SW (key width)19 mm
