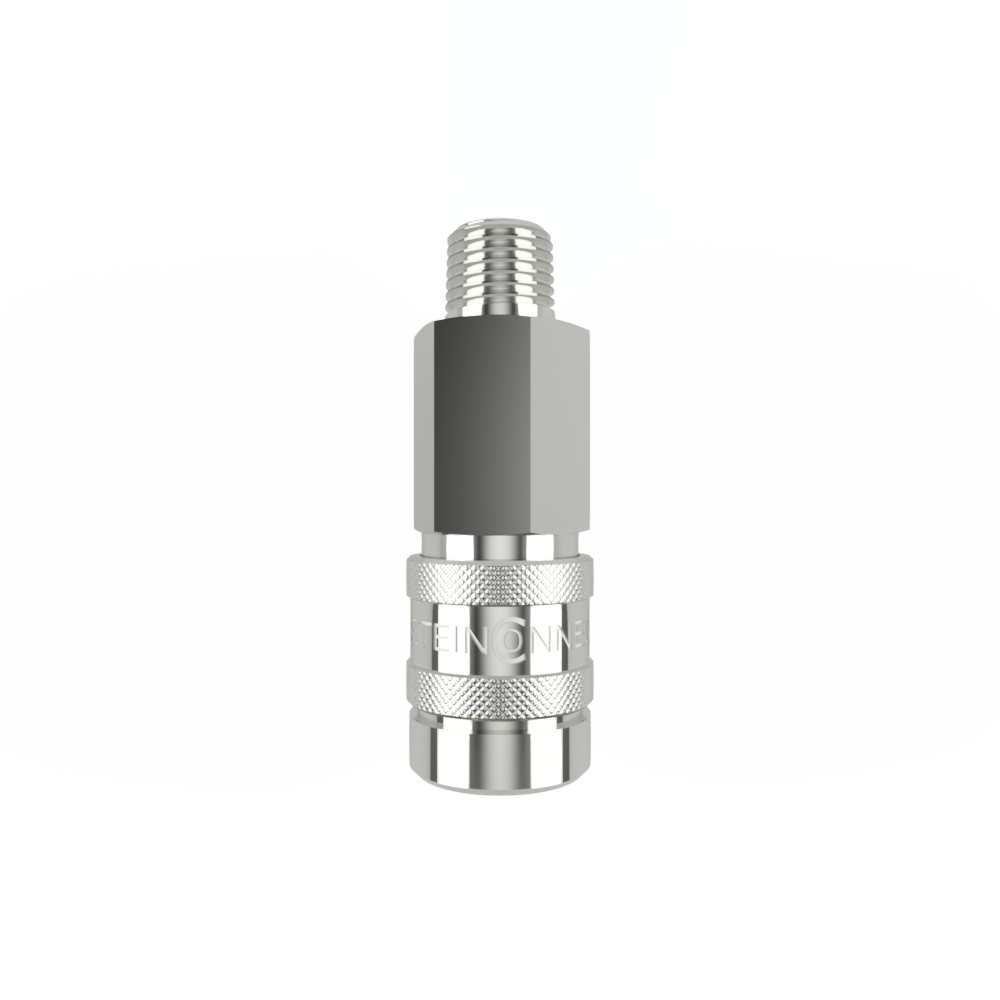

Image similar to the original SERIES 126.SL, Article: NMS72

SERIES 126.SL
plug

Article: NMS72
Reference Number: 126.SL.S0NS.ST009.MN0
Description: Nominal width 7.8 mm, material: brass, surface: nickel plated, connection type: hose connection, connection size: LW9
Technique: Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling.
Technical Characteristics: Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated
Nominal width 7.8 mm, brass, surface: nickel plated, hose connection, LW9
Series126
Nominal Width7.8 mm
Keylong version no key
Typeplug
Surfacenickel plated
Materialbrass
Connection Sizehose connection
Connection TypeLW9
Operating Temperaturefrom -20 °C to 100 °C
Pressure Range max.35 bar
Flow Rate2,030 l/min
HandlingTwo-hand coupling
IndustriesMedical technology, Respiratory protection
Vacuum suitable 0.95 barYes
Dimensions / Details
ConnectionLW9
D (Diameter outside)13 mm
L (length)53 mm
L1 (length)26 mm
L2 (length)24 mm
