Image similar to the original SERIES 133.00, Article: N9B10

SERIES 133.00
coupling

Article: N9B10
Reference Number: 133.00.KTN0.IG038.MNP
Description: Nominal width 6.0 mm, material: brass, surface: nickel plated, flat face , connection type: female thread DIN228/1 (BSP), connection size: 3/8, seal: NBR (Perbunan)
Technique: One-hand coupling with ball lock. It is a low-leakage coupling system with minimal dead space, also known as flat face. Air pockets are excluded during the coupling process, as the valves in plug and coupling lie flat on top of each other before the locking process takes place. During the unlocking process, the valves in plug and coupling are closed before the plug can be removed out of the coupling. This means that both sides of the connection are closed and no medium can leak out.
Technical Characteristics: Material coupling and plug: connections, base body, Sleeve, plug and valves brass nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420.
Nominal width 6.0 mm, brass, surface: nickel plated, flat face , female thread DIN228/1 (BSP), 3/8, seal: NBR (Perbunan)
Series133
Nominal Width6 mm
Typecoupling
Valveflat face
SealNBR (Perbunan)
Surfacenickel plated
Materialbrass
Connection Sizefemale thread DIN228/1 (BSP)
Connection Type 3/8
Operating Temperaturefrom -20 °C to 100 °C
Pressure Range max.15 bar
Flow Rate28 l/min
HandlingOne-hand coupling
Vacuum suitable 0.95 barNo

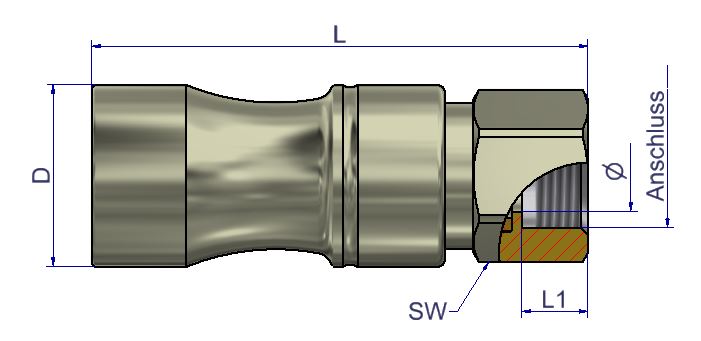

Dimensions / Details
Connection 3/8
Ø (Diameter inside)10.2 mm
D (Diameter outside)26 mm
L (length)71 mm
L1 (length)8 mm
SW (key width)22 mm
Fitting Products
plug NYJH0 Series
133.00
Article
NYJH0
plug
Beschreibung

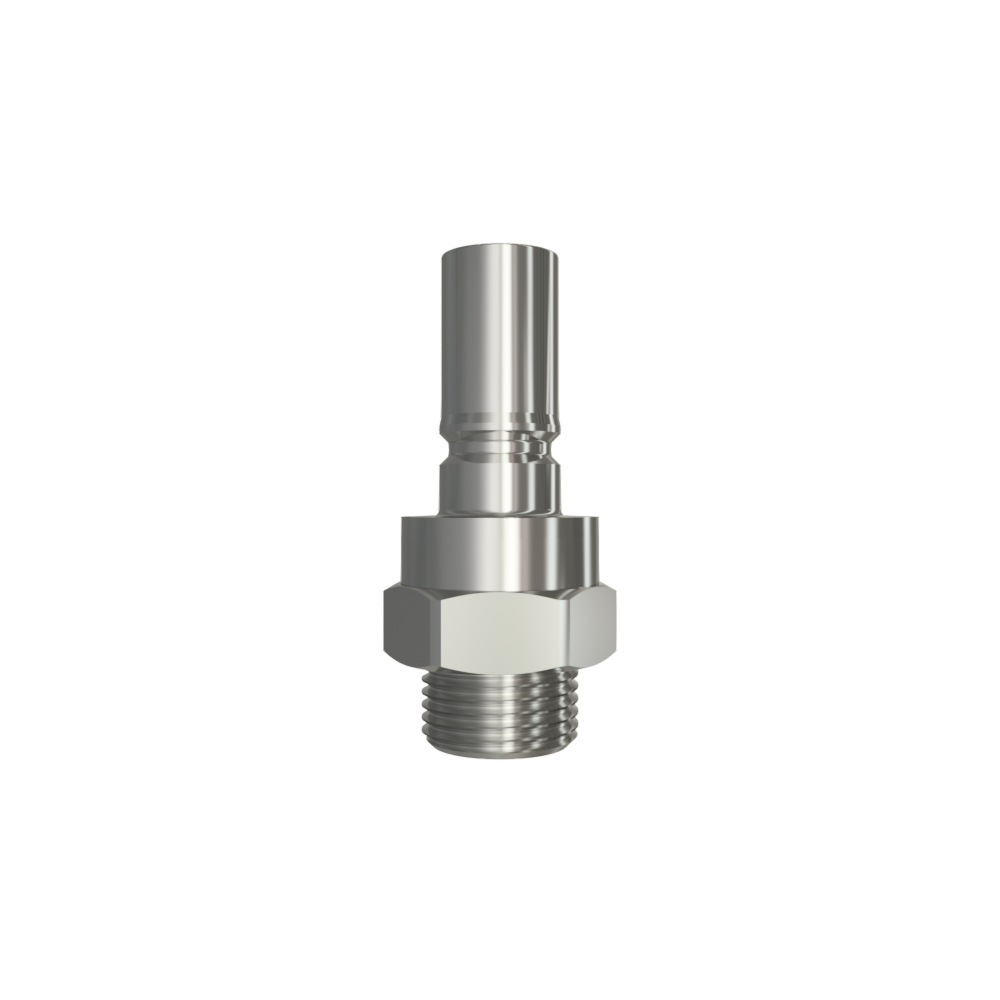

Nominal width 6.0 mm, brass, surface: nickel plated, flat face , male thread DIN228/1, 1/2, seal: NBR (Perbunan)

plug NYJF0 Series
133.00
Article
NYJF0
plug
Beschreibung
Nominal width 6.0 mm, brass, surface: nickel plated, flat face , male thread DIN228/1, 3/8, seal: NBR (Perbunan)

plug NYJU0 Series
133.00
Article
NYJU0
plug
Beschreibung

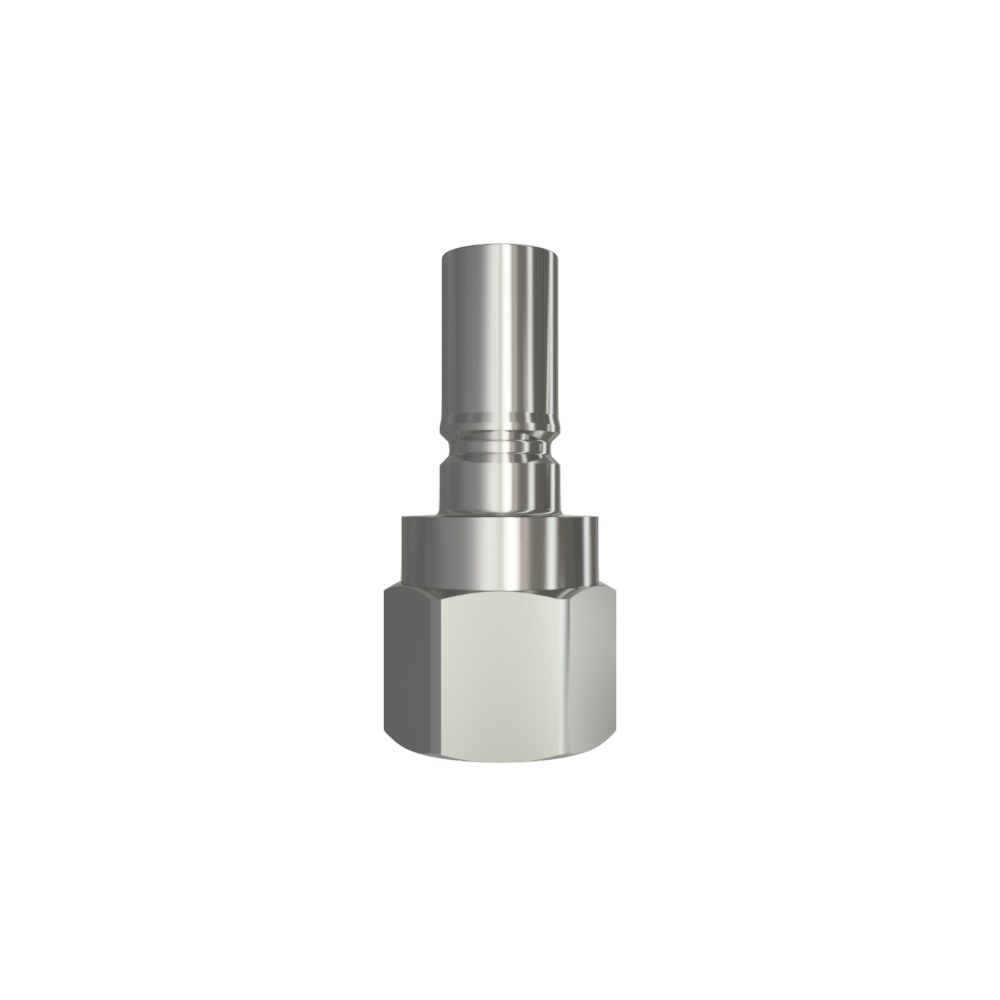

Nominal width 6.0 mm, brass, surface: nickel plated, flat face , female thread DIN228/1 (BSP), 3/8, seal: NBR (Perbunan)
