Image similar to the original SERIES 133.00, Article: NYV10

SERIES 133.00
plug

Article: NYV10
Reference Number: 133.00.ST00.AG038.4EV
Description: Nominal width 6.0 mm, material: 1.4404, surface: electropolish, flat face , connection type: male thread DIN228/1, connection size: 3/8, seal: FPM (Viton)
Technique: One-hand coupling with ball lock. It is a low-leakage coupling system with minimal dead space, also known as flat face. Air pockets are excluded during the coupling process, as the valves in plug and coupling lie flat on top of each other before the locking process takes place. During the unlocking process, the valves in plug and coupling are closed before the plug can be removed out of the coupling. This means that both sides of the connection are closed and no medium can leak out.
Technical Characteristics: Material Coupling: back part, sleeve, coupler body and valve are made of stainless steel AISI 316. Seal FPM (Viton). Spring and circlip stainless steel AISI 316. Bolts stainless steel AISI 316. Material plug: stainless steel AISI 316
Nominal width 6.0 mm, 1.4404, surface: electropolish, flat face , male thread DIN228/1, 3/8, seal: FPM (Viton)
Series133
Nominal Width6 mm
Typeplug
Valveflat face
SealFPM (Viton)
Surfaceelectropolish
Material1.4404
Connection Sizemale thread DIN228/1
Connection Type 3/8
Operating Temperaturefrom -20 °C to 200 °C
Pressure Range max.15 bar
Flow Rate28 l/min
HandlingOne-hand coupling
Vacuum suitable 0.95 barNo

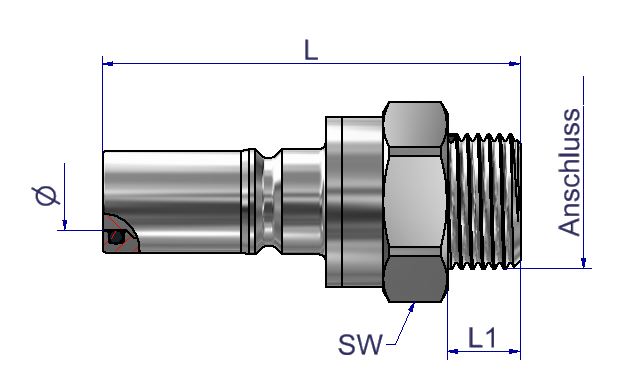

Dimensions / Details
Connection 3/8
Ø (Diameter inside)10.2 mm
L (length)52 mm
L1 (length)9 mm
SW (key width)22 mm
Fitting Products
coupling NB3F0 Series
133.00
Article
NB3F0
coupling
Beschreibung
Nominal width 6.0 mm, 1.4404, surface: electropolish, flat face , female thread DIN228/1 (BSP), 3/8, seal: FPM (Viton)

coupling NB3G0 Series
133.00
Article
NB3G0
coupling
Beschreibung
Nominal width 6.0 mm, 1.4404, surface: electropolish, flat face , female thread metric, M15x1.5, seal: FPM (Viton)

coupling NB3E0 Series
133.00
Article
NB3E0
coupling
Beschreibung
Nominal width 6.0 mm, 1.4404, surface: electropolish, flat face , male thread DIN228/1, 3/8, seal: FPM (Viton)
