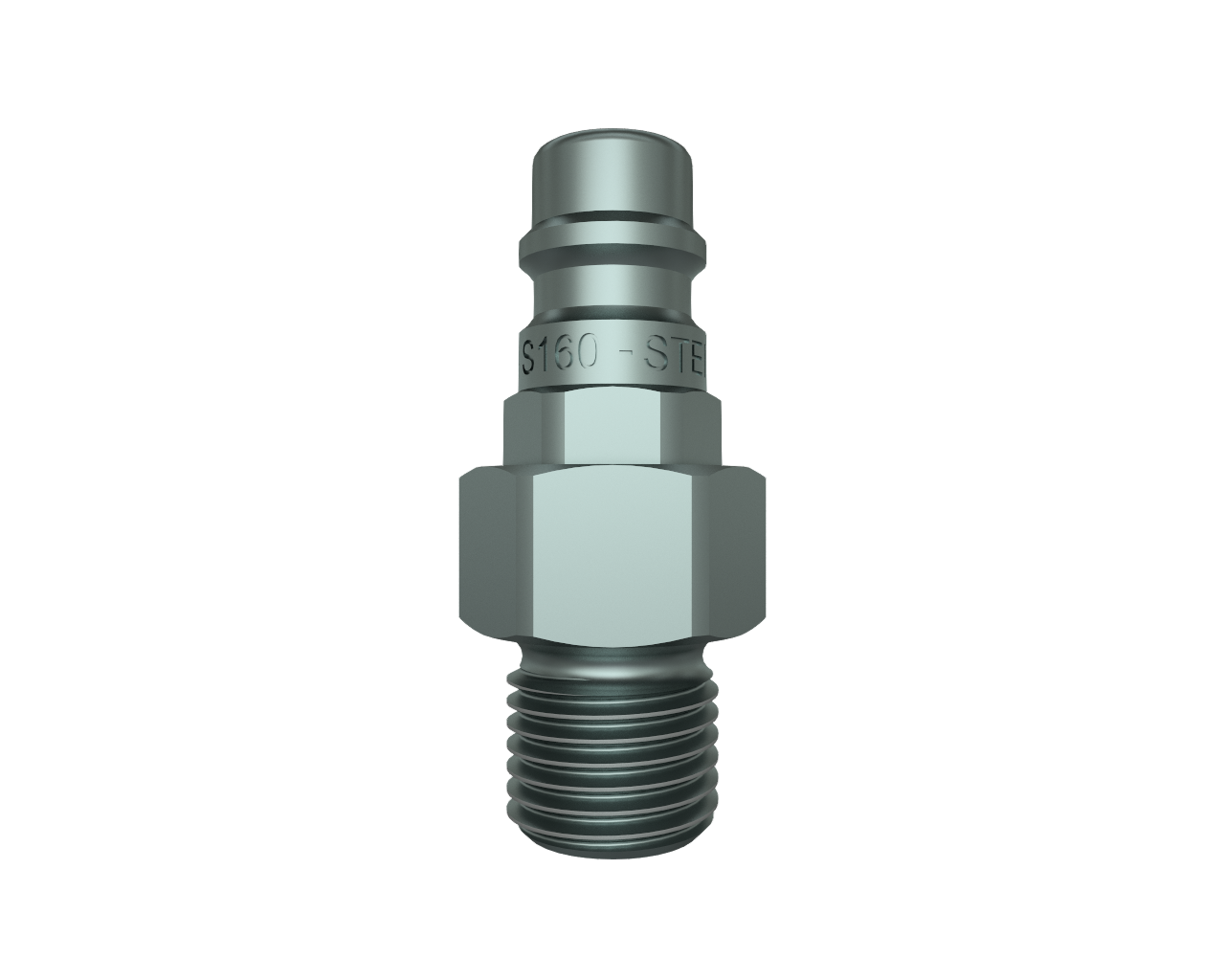

Image similar to the original
SERIES
160.0S
plug
Reference Number: 160.0S.S00S.AG014.SZ0
Technique: Two-hand coupling with 2-point bolt locking. Single piece coupling body with connection - ideal for absorbing significant bending and torsion forces. Positive connection between coupling and plug. Counter nut prevents the connection from being opened unintentionally.
Technical Characteristics: Coupling body, sleeve and locking nut are made from steel zink plated. Valve brass. Spring and circlip stainless steel AISI 301. Bolts stainless steel AISI 316. Seals made from material FPM (Viton). Plug: steel zink plated
| Series | 160 |
|---|---|
| Nominal Width | 5 mm |
| Key | hexagonal |
| Type | plug |
| Surface | zinc-plated |
| Material | steel |
| Connection Size | male thread DIN228/1 |
| Connection Type | 1/4 |
| Operating Temperature | from -20 °C to 200 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 910 l/min |
| Handling | Two-hand coupling |
| Vacuum suitable 0.95 bar | Yes |
 |

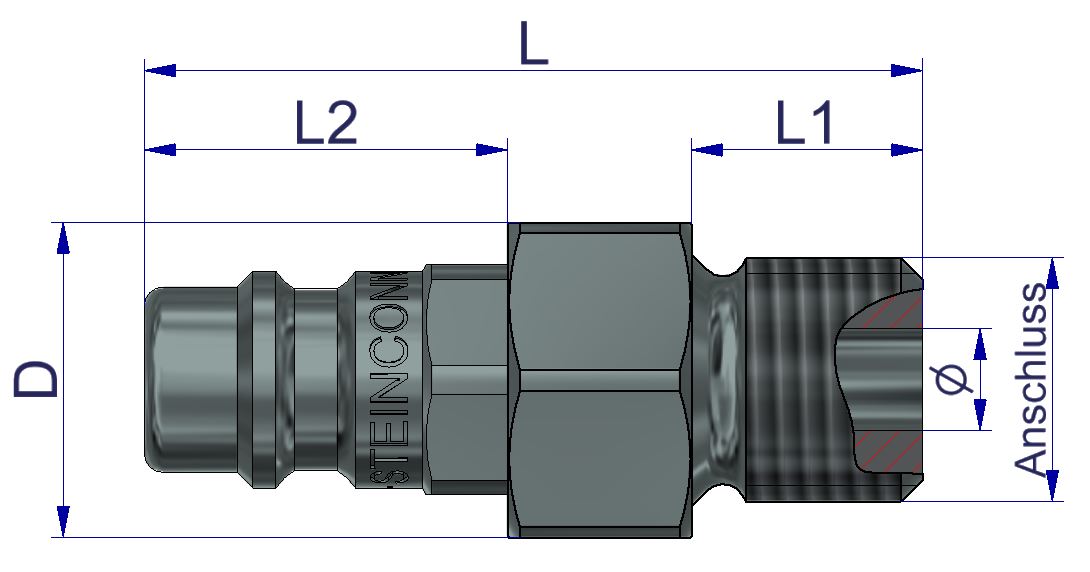

Dimensions / Details
|
