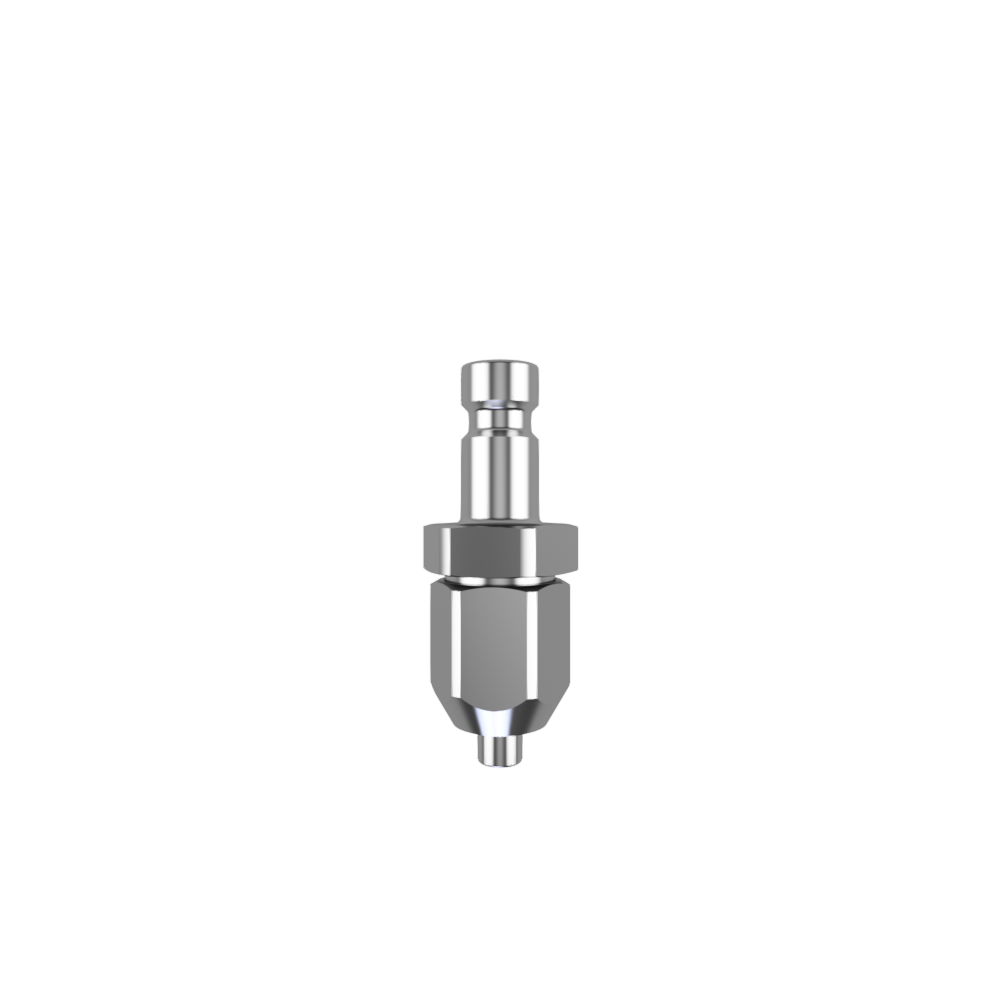

Image similar to the original
SERIES 050.00
plug
Reference Number: 050.00.S000.SV005.MN0
Technique: One-hand coupling with automatic 3-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling.
Technical Characteristics: Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated
| Series | 050 |
|---|---|
| Nominal Width | 2.7 mm |
| Type | plug |
| Surface | nickel plated |
| Material | brass |
| Connection Size | quick fit connection |
| Connection Type | 3x5 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 120 l/min |
| Handling | One-hand coupling |
| Industries | Operating material, Medical technology, Respiratory protection |
| Vacuum suitable 0.95 bar | Yes |
| Options | Coupling available with other seals on request. |
 |
Dimensions / Details
|
Fitting Products |
||||
 |
Series 050.00 |
Article N0AH0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/8, seal: NBR (Perbunan) |
|
 |
Series 050.00 |
Article N0AQ0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, quick fit connection, 3x5, seal: NBR (Perbunan) |
|
 |
Series 050.00 |
Article N0AN0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW4, seal: NBR (Perbunan) |
|
|
Series 050.00 |
Article N0AM0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW3, seal: NBR (Perbunan) |
|
 |
Series 050.00 |
Article N0AD0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/8, seal: NBR (Perbunan) |
|
|
Series 050.00 |
Article N0AR0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, quick fit connection, 4x6, seal: NBR (Perbunan) |
|
 |
Series 050.00 |
Article N0A00 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, panel mount-hose connection, LW4, seal: NBR (Perbunan) |
|
|
Series 050.00 |
Article N0AL1 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW5, seal: NBR (Perbunan) |
|
|
Series 050.00 |
Article N75W0 coupling |
Beschreibung Nominal width 2.7 mm, brass, surface: nickel plated, single shut off, hose connection, LW6, seal: NBR (Perbunan) |
|
