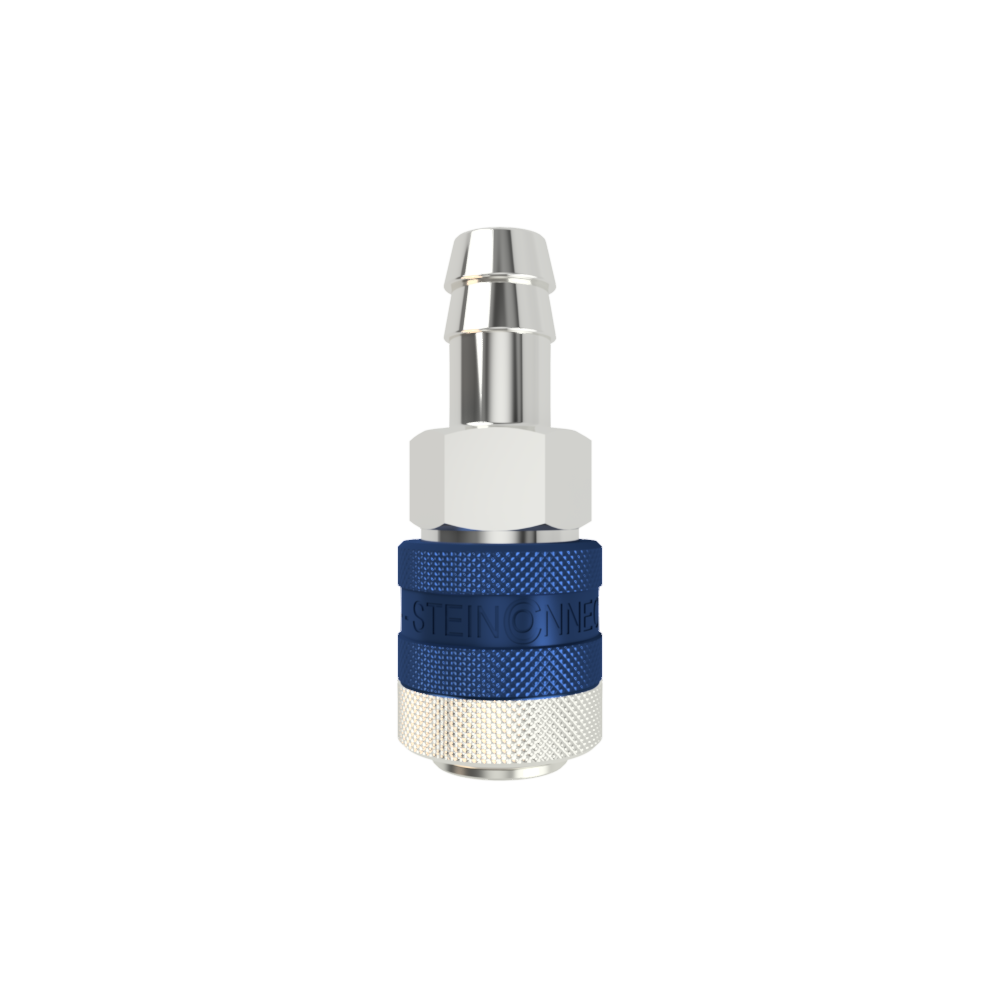

SERIES 090.V0
coupling
Reference Number: 090.V0.KVNS.ST006.MNV
Technique: One-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve moves back to its original position and closes the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling.
Technical Characteristics: Material coupling: back part, sleeve and coupler body brass nickel plated. Valve brass nickel plated. Locking nut anodised aluminium. Seal FPM ( Viton). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated
| Series | 090 |
|---|---|
| Nominal Width | 5 mm |
| Type | coupling |
| Valve | single shut off |
| Seal | FPM (Viton) |
| Surface | nickel plated |
| Material | brass |
| Connection Size | hose connection |
| Connection Type | LW6 |
| Operating Temperature | from -20 °C to 200 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 600 l/min |
| Handling | One-hand coupling |
| Industries | Machinery and equipment, Water, sewage, disposal |
| Vacuum suitable 0.95 bar | Yes |
 |

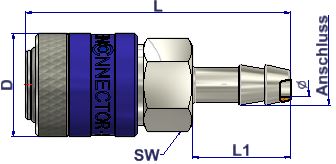

Dimensions / Details
|

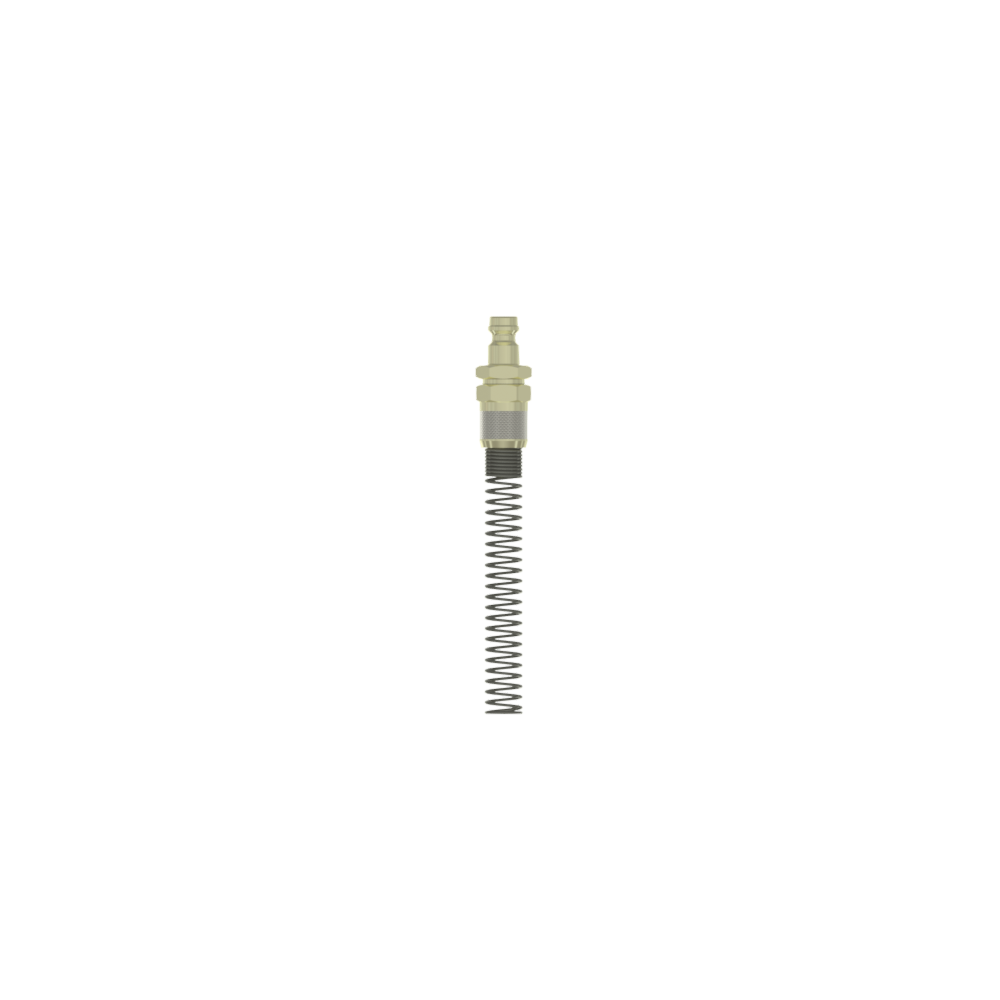

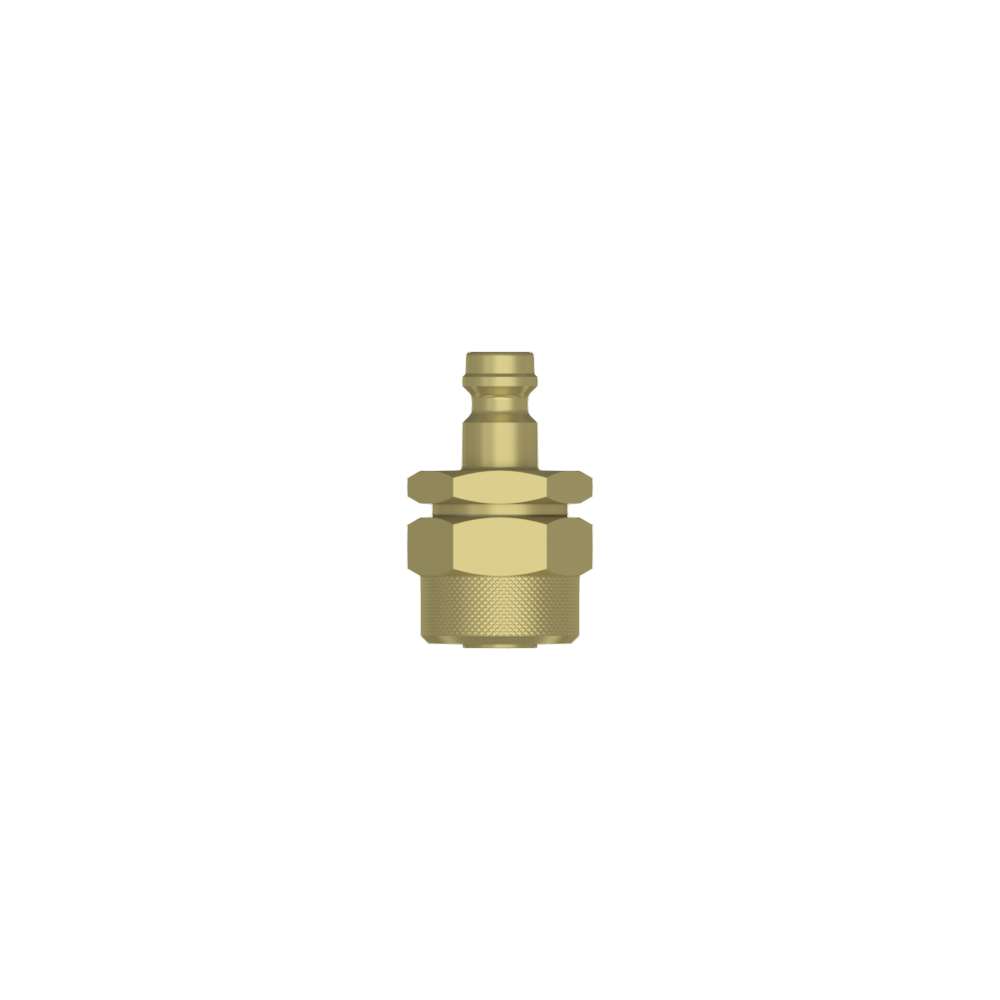

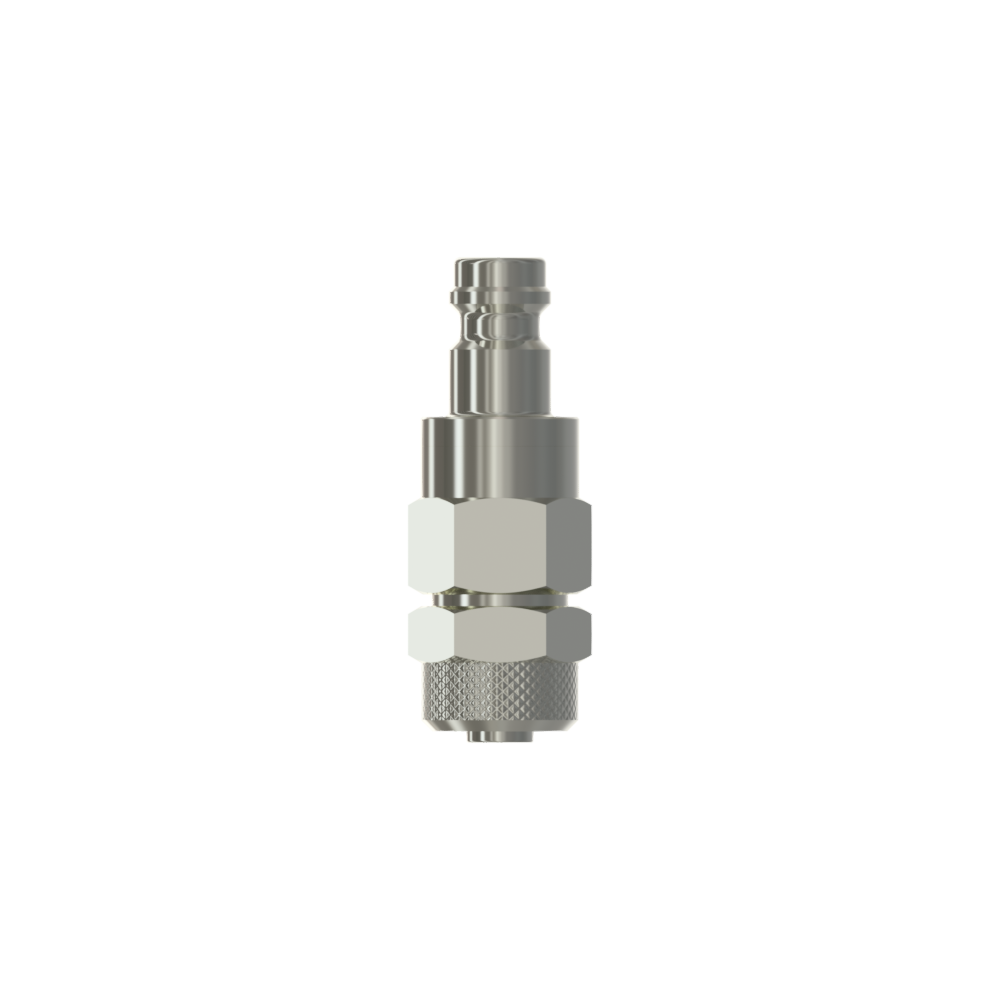

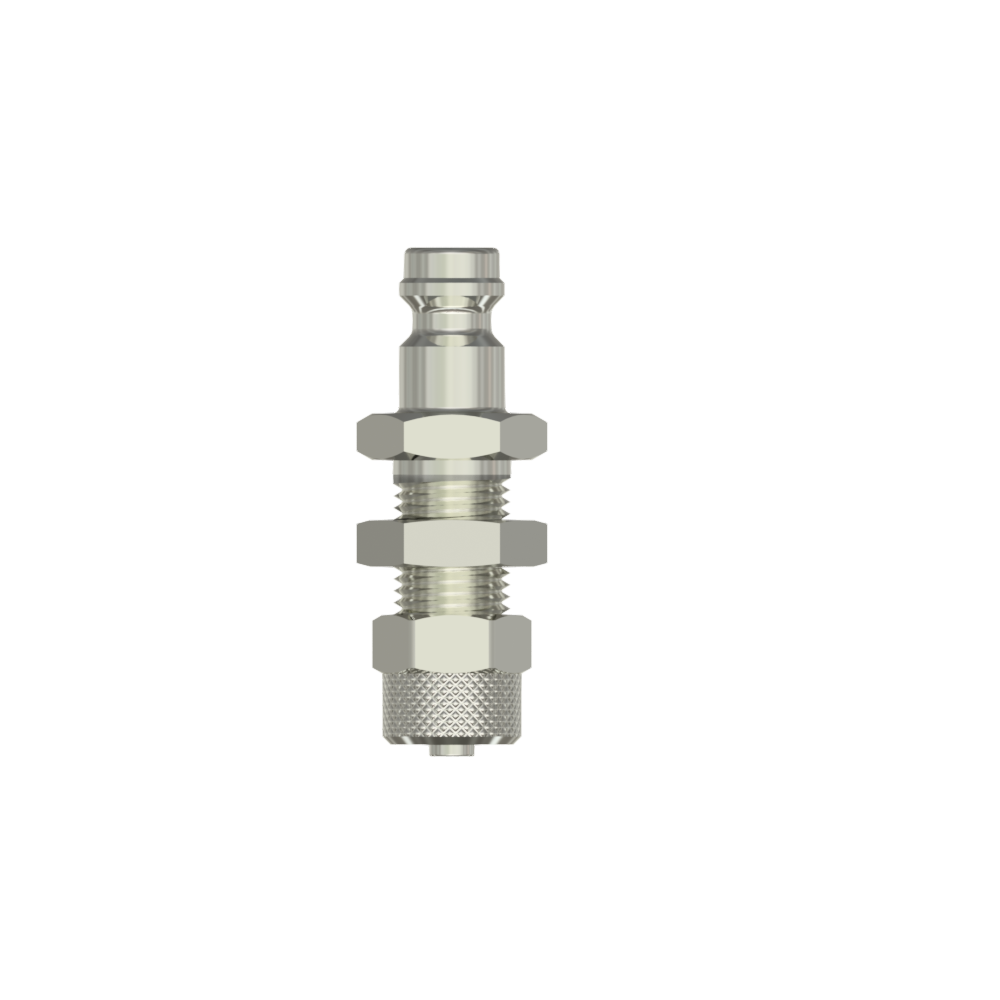

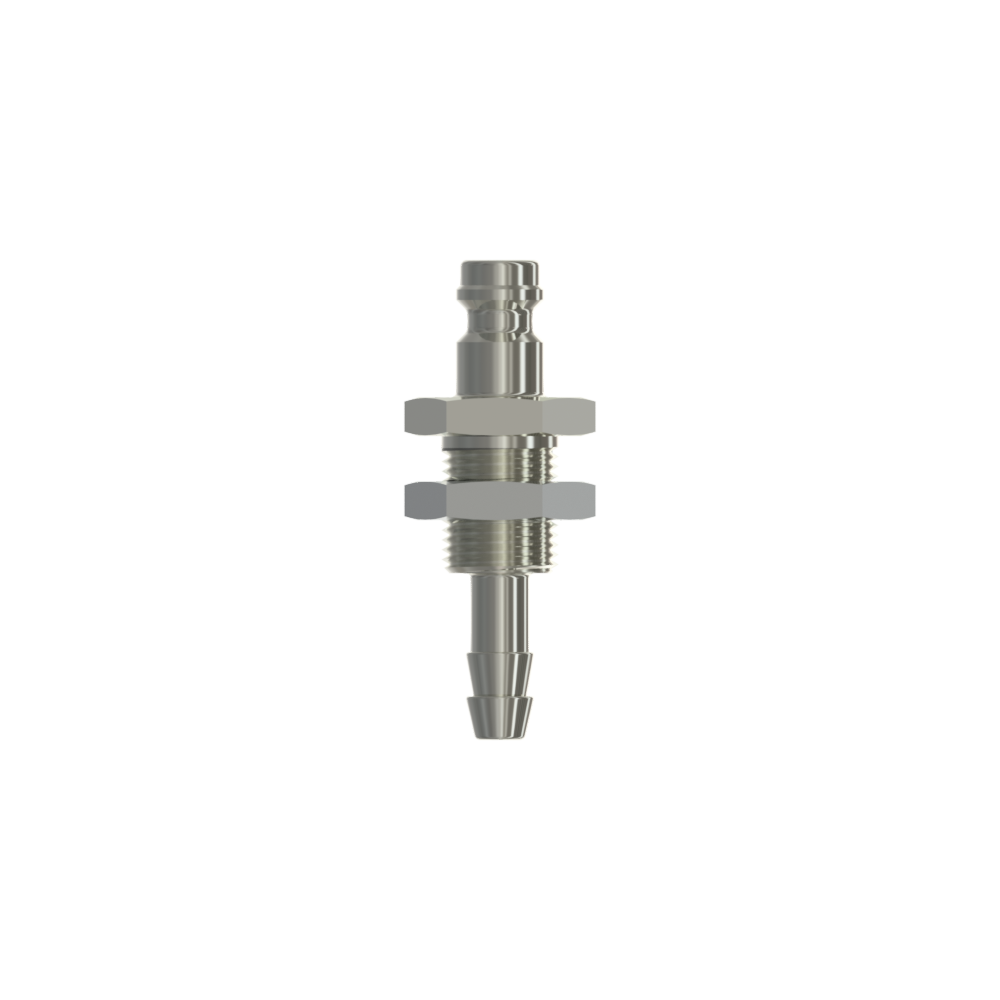

Fitting Products |
||||
 |
Series 090.00 |

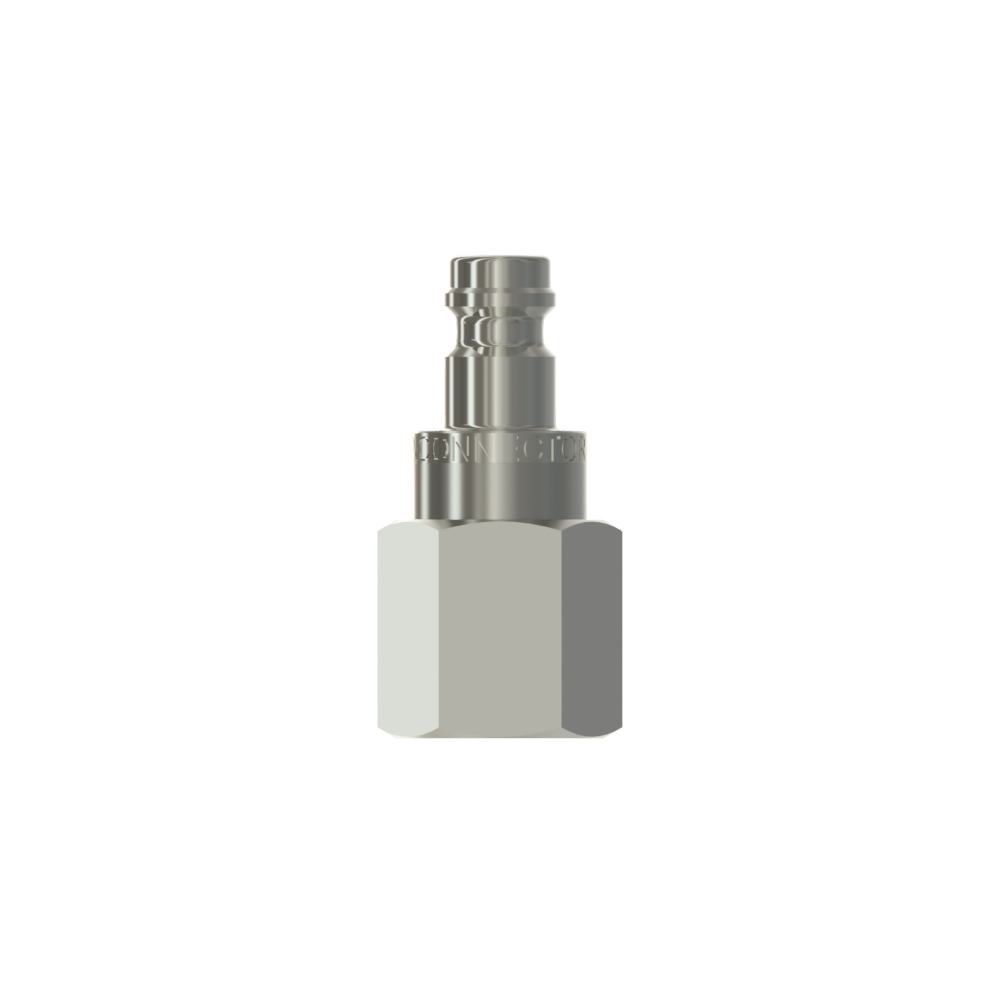

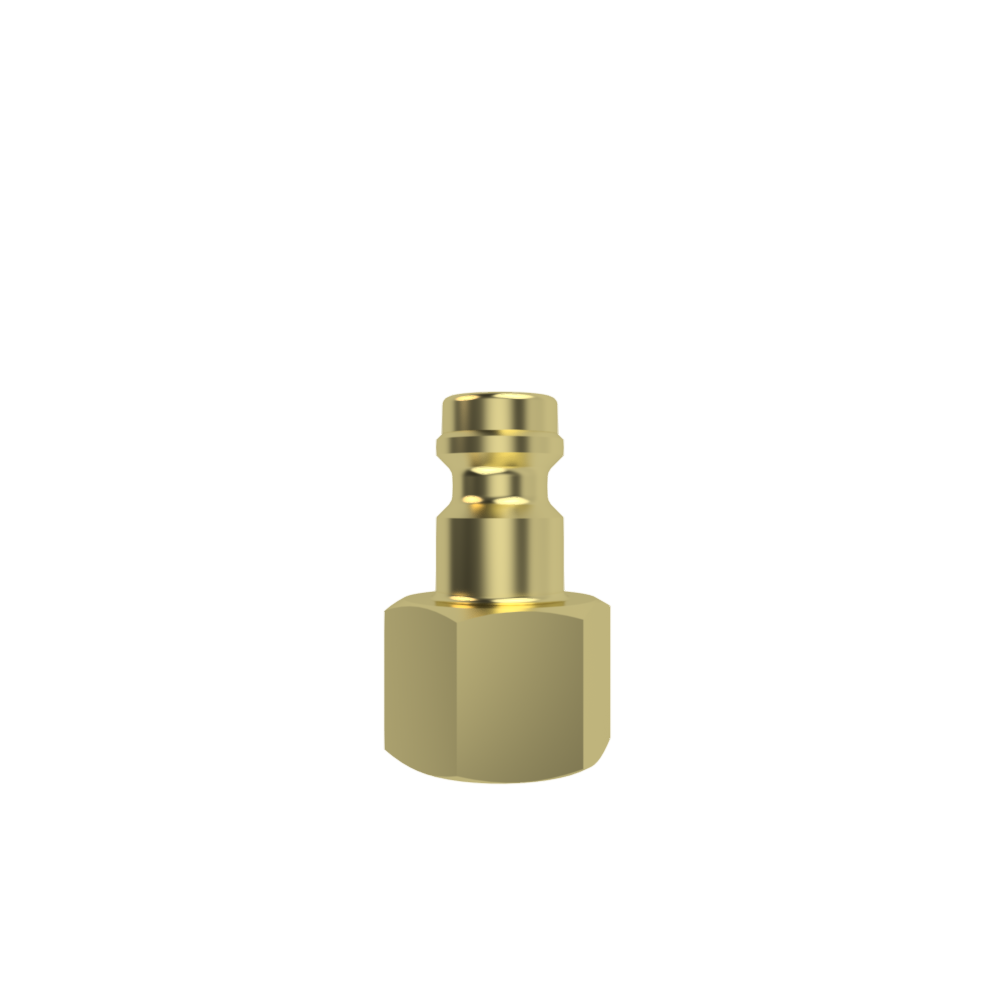

Article NMAY0 plug |
Beschreibung Nominal width 5.0 mm, brass, female thread DIN228/1 (BSP), 1/8 |
|
 |
Series 090.00 |

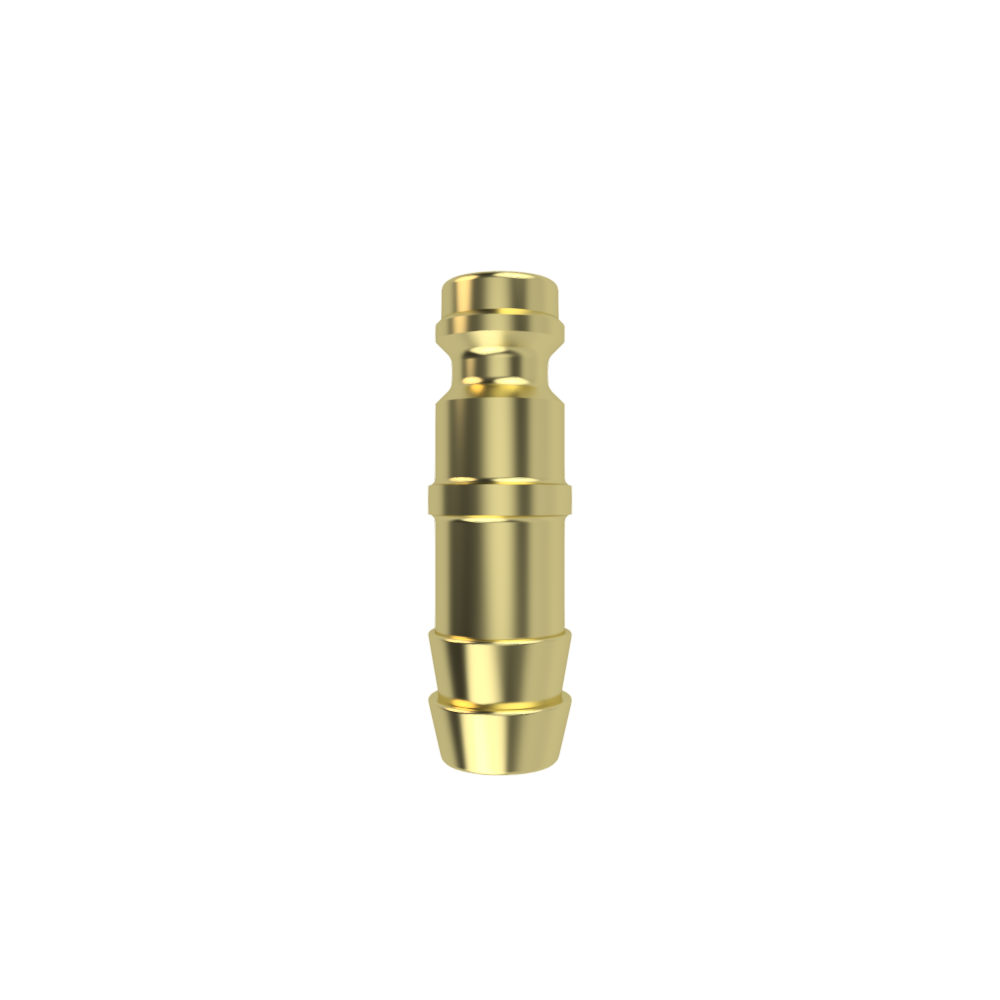

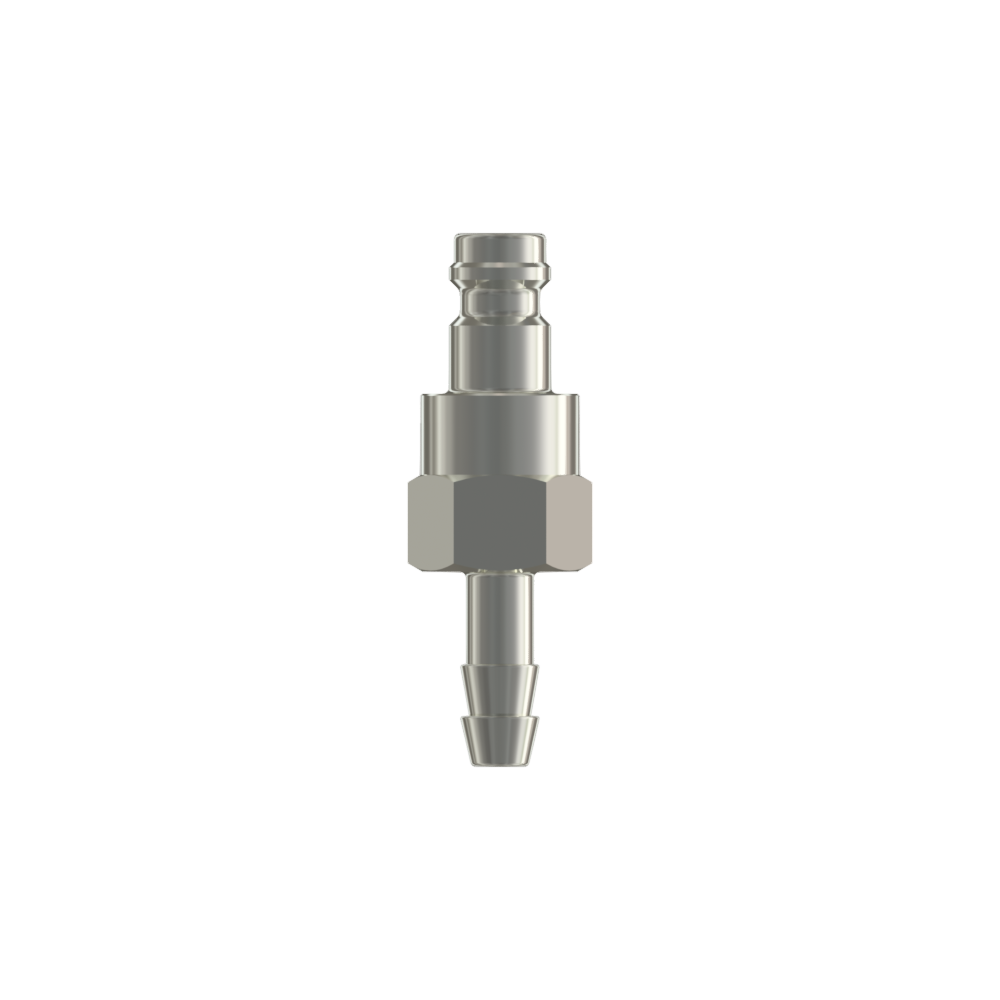

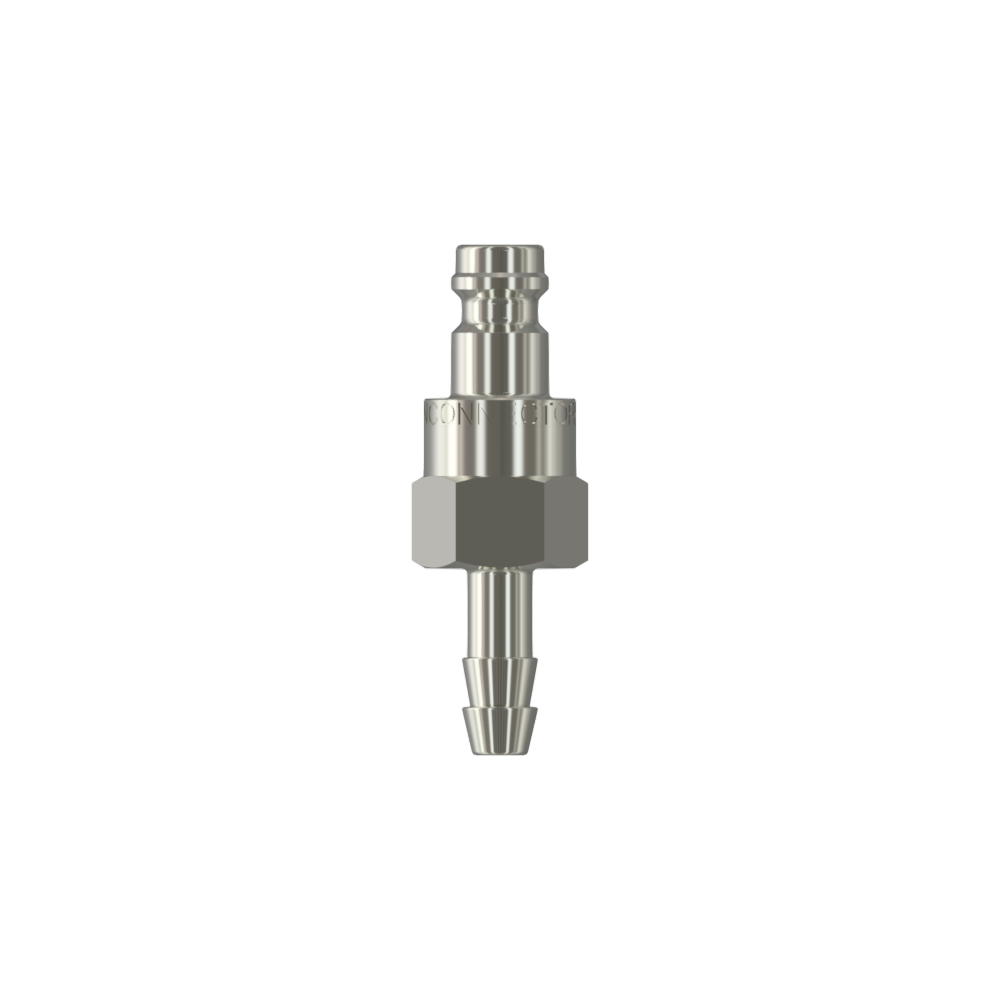

Article NMA90 plug |
Beschreibung Nominal width 5.0 mm, brass, hose connection, LW6 |
|
|
Series 090.00 |

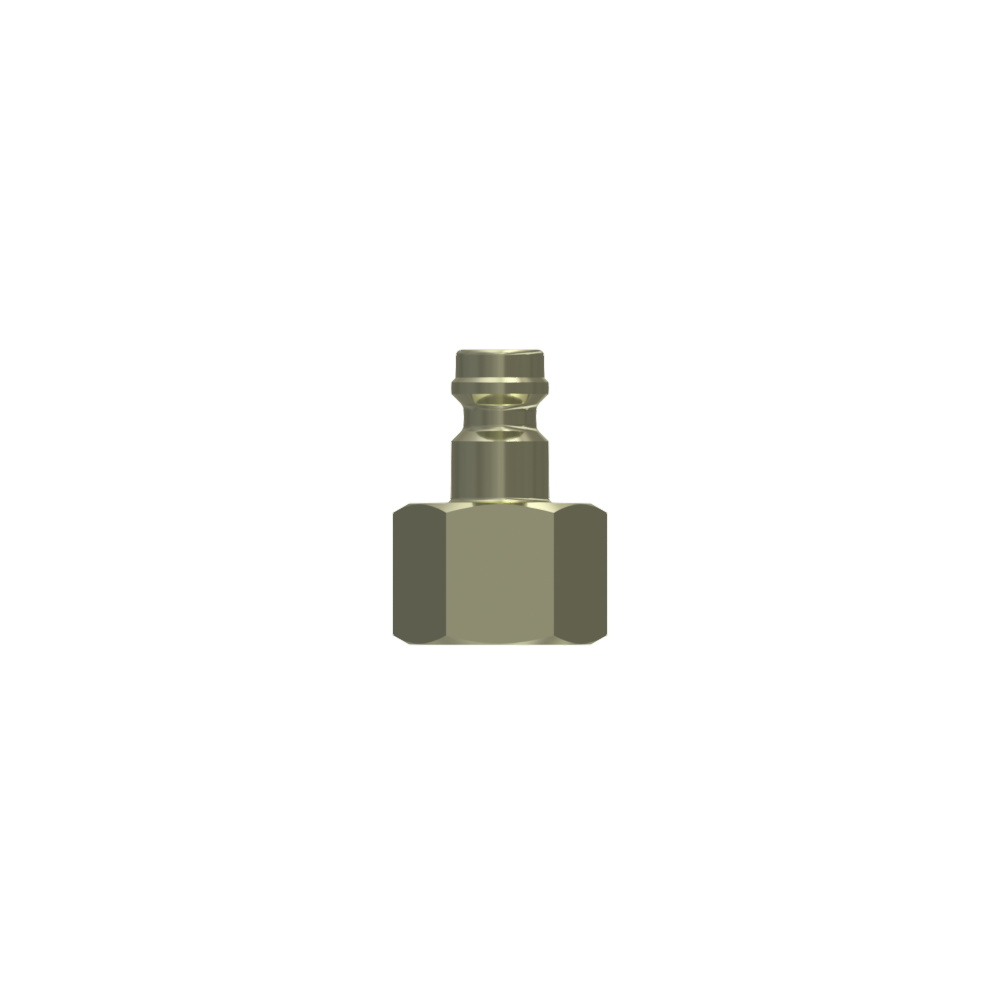

Article NMAZ0 plug |
Beschreibung Nominal width 5.0 mm, brass, female thread DIN228/1 (BSP), 1/4 |
|
 |
Series 090.00 |

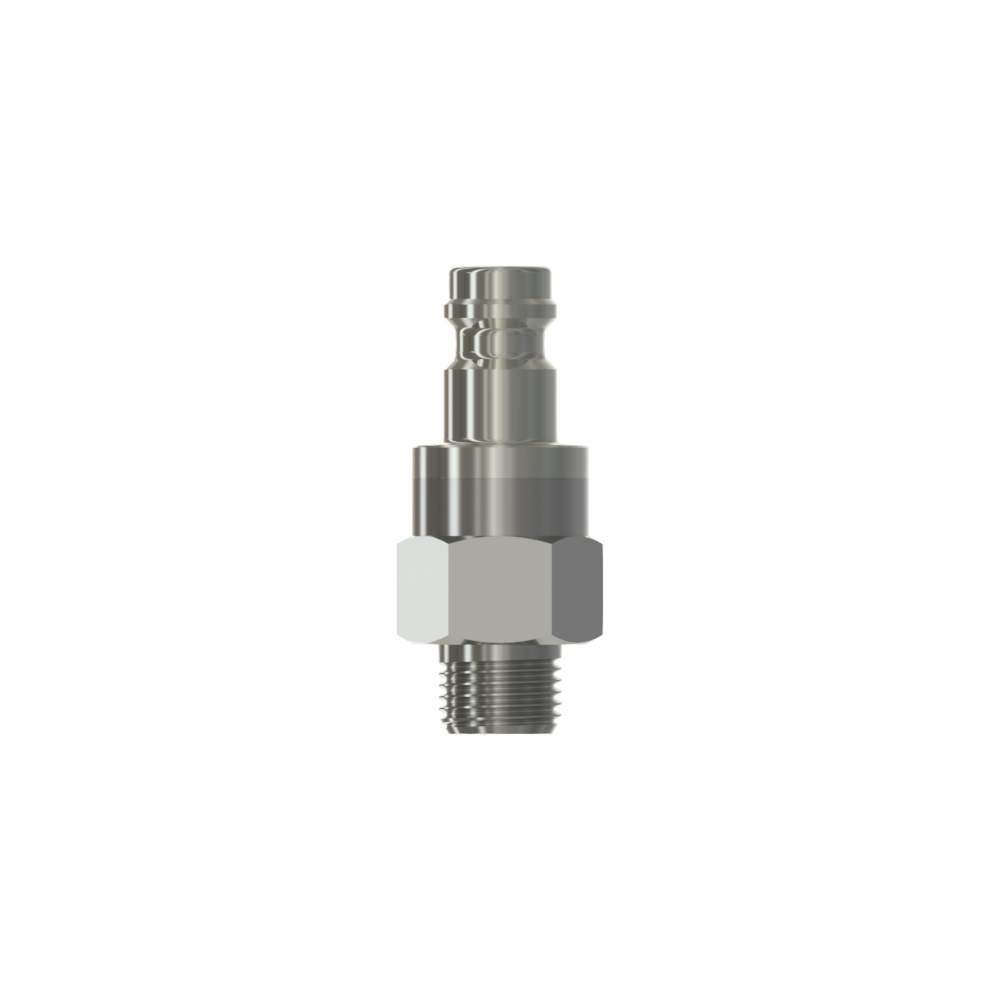

Article NMGC0 plug |
Beschreibung Nominal width 5.0 mm, brass, surface: nickel plated, male thread DIN228/1, 1/8 |
|
|
Series 090.00 |

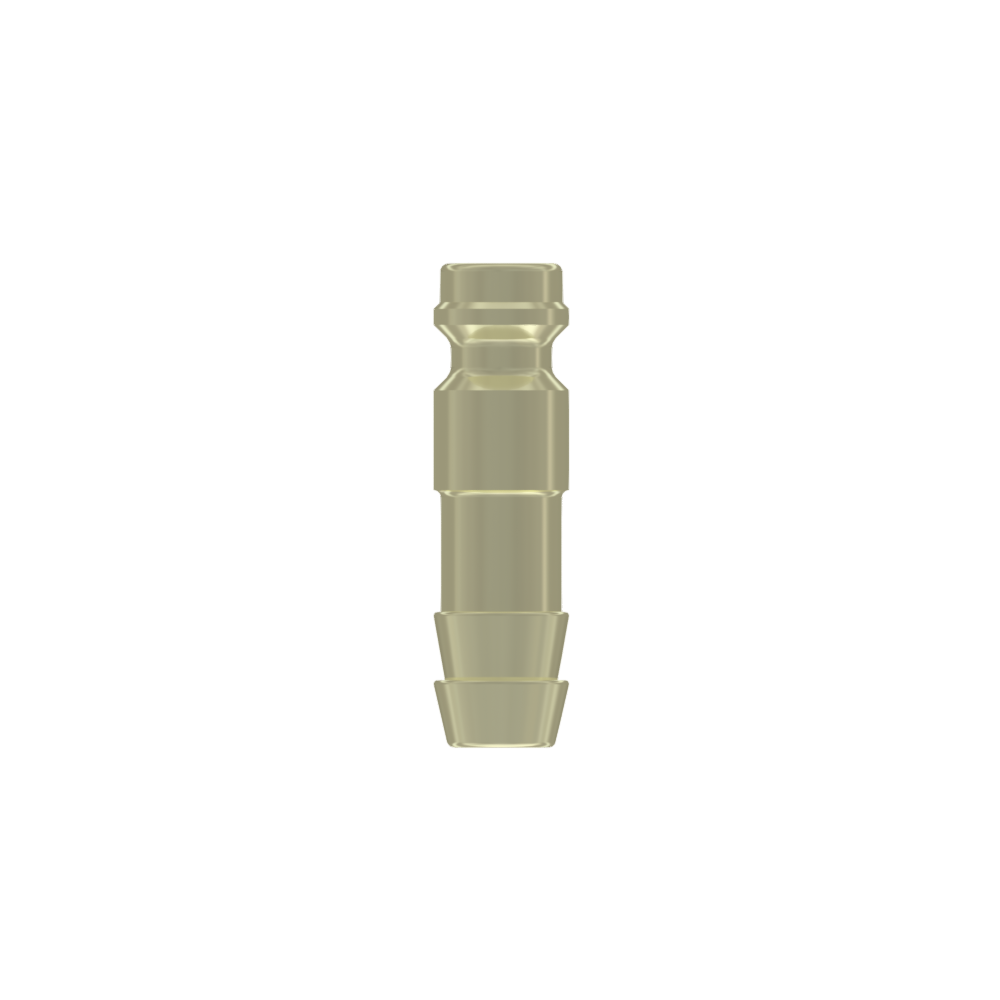

Article NMBC0 plug |
Beschreibung Nominal width 5.0 mm, brass, hose connection, LW10 |
|
 |
Series 090.00 |

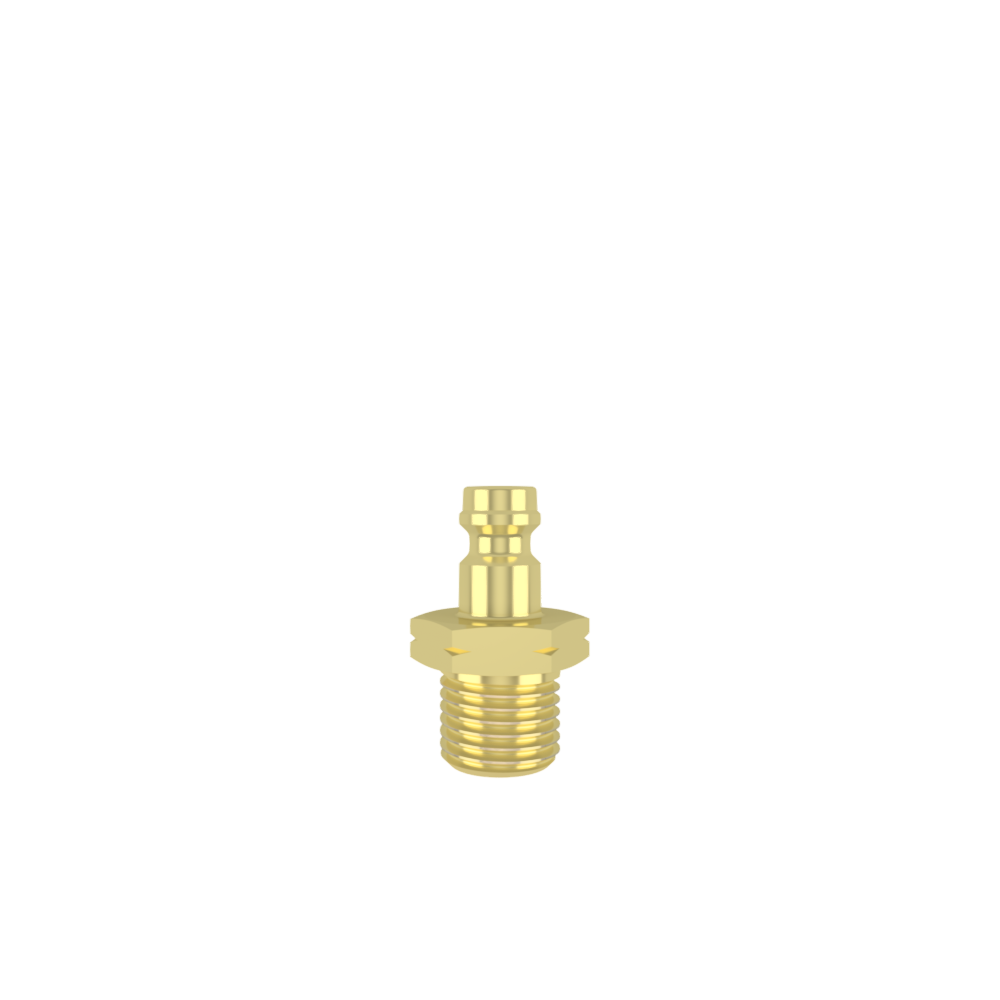

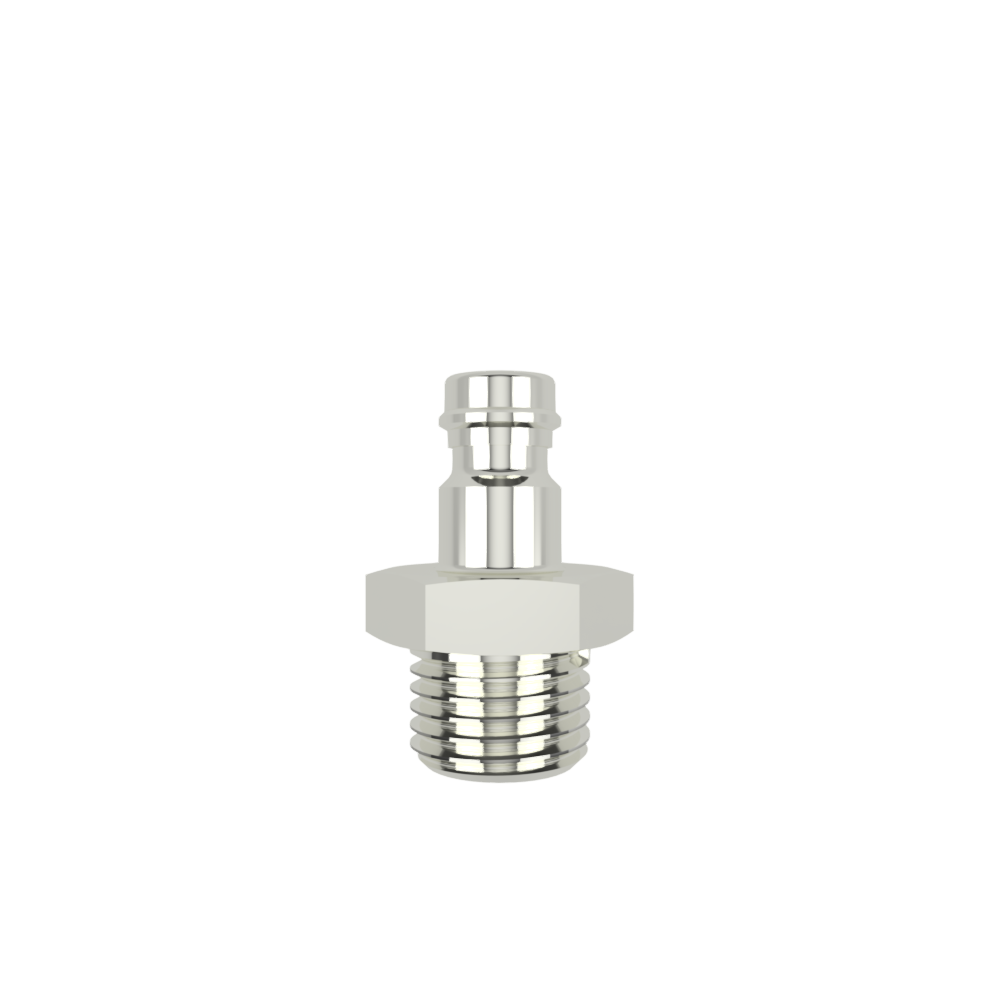

Article NMAP0 plug |
Beschreibung Nominal width 5.0 mm, brass, male thread DIN228/1, 1/8 |
|
|
Series 090.00 |
Article NMBA0 plug |
Beschreibung Nominal width 5.0 mm, brass, hose connection, LW8 |
|
|
Series 090.00 |

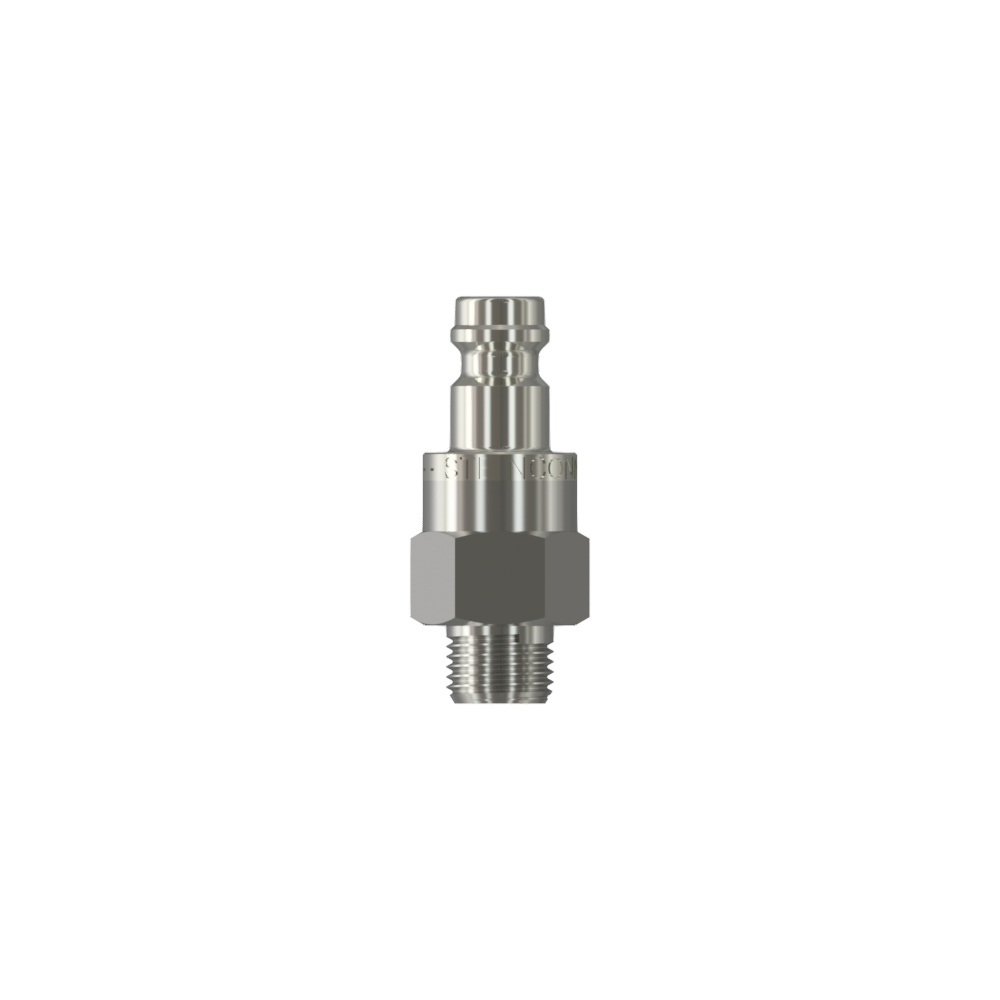

Article NMAR0 plug |
Beschreibung Nominal width 5.0 mm, brass, male thread DIN228/1, 3/8 |
|
|
Series 090.00 |
Article NMA70 plug |
Beschreibung Nominal width 5.0 mm, brass, hose connection, LW4 |
|
 |
Series 090.00 |
Article NMAV0 plug |
Beschreibung Nominal width 5.0 mm, brass, male thread DIN228/1 LH-left-hand-thread, 1/4 |
|
|
Series 090.00 |
Article NMAQ0 plug |
Beschreibung Nominal width 5.0 mm, brass, male thread DIN228/1, 1/4 |
|
|
Series 090.00 |
Article NMBB0 plug |
Beschreibung Nominal width 5.0 mm, brass, hose connection, LW9 |
|
