SERIES 090.00
coupling
Reference Number: 090.00.KV2S.IGL14.M0P
Technique: One-hand coupling with automatic 5-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection.The valve will return to its starting position and push the plug out of the coupling. Note: Only suitable for propane and butane applications.The plug must be kept free of dirt. Connection has to be checked with a leak detection spray.
Technical Characteristics: Material coupling: connections, base body and valve brass. Release sleeve anodized aluminum. Seal NBR (Buna N) spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass
| Series | 090 |
|---|---|
| Nominal Width | 5 mm |
| Type | coupling |
| Valve | single shut off |
| Seal | NBR (Perbunan) |
| Surface | nature |
| Material | brass |
| Connection Size | female thread DIN228/1 LH-left-hand-thread |
| Connection Type | 1/4 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 600 l/min |
| Handling | One-hand coupling |
| Industries | Machinery and equipment |
| Vacuum suitable 0.95 bar | Yes |
| Options | Coupling available with other seals on request. |
 |

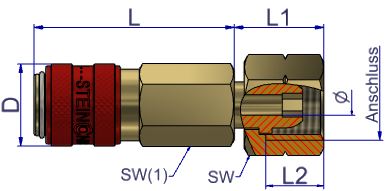

Dimensions / Details
|
