SERIES 090.00
coupling
Reference Number: 090.00.KV0S.IG018.30V
Technique: One-hand coupling with automatic 5-point locking. Ball locking system with spring-loaded release sleeve. Disconnect by pushing the release sleeve back into the direction of the connection. The valve will return to its starting position and pushes the plug out of the coupling.
Technical Characteristics: Material coupling and plug: back part, sleeve, coupler body, valve and plug stainless steel AISI 303. Seal FPM (Viton). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 316. Material plug: stainless steel AISI 303
| Series | 090 |
|---|---|
| Nominal Width | 5 mm |
| Type | coupling |
| Valve | single shut off |
| Seal | FPM (Viton) |
| Surface | nature |
| Material | 1.4305 |
| Connection Size | female thread DIN228/1 (BSP) |
| Connection Type | 1/8 |
| Operating Temperature | from -20 °C to 200 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 600 l/min |
| Handling | One-hand coupling |
| Industries | Operating material, Machinery and equipment, Fluidics |
| Vacuum suitable 0.95 bar | Yes |
| Options | Coupling available with other seals on request. |
 |

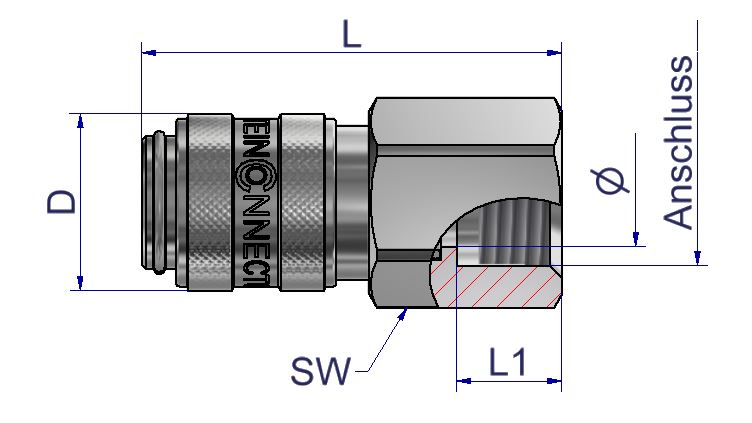

Dimensions / Details
|
Fitting Products |
||||
 |
Series 090.00 |
Article NMBB1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, hose connection, LW9 |
|
 |
Series 090.00 |
Article NMAR1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, male thread DIN228/1, 3/8 |
|
 |
Series 090.00 |
Article NMAY1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, female thread DIN228/1 (BSP), 1/8 |
|
|
Series 090.00 |
Article NMA71 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, hose connection, LW4 |
|
 |
Series 090.00 |
Article NYEZ5 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, flat face , male thread DIN228/1, 1/4, seal: FPM (Viton) |
|
|
Series 090.00 |
Article NMBA1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, hose connection, LW8 |
|
|
Series 090.00 |
Article NMBC1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, hose connection, LW10 |
|
|
Series 090.00 |
Article NMAQ1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, male thread DIN228/1, 1/4 |
|
|
Series 090.00 |
Article NMA91 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, hose connection, LW6 |
|
 |
Series 090.00 |
Article NYBZ2 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, quick fit connection, 6x8 |
|
|
Series 090.00 |
Article NYEY5 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, flat face , male thread DIN228/1, 1/8, seal: FPM (Viton) |
|
 |
Series 090.00 |
Article NMAZ1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, female thread DIN228/1 (BSP), 1/4 |
|
|
Series 090.00 |
Article NMAP1 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, male thread DIN228/1, 1/8 |
|
|
Series 090.00 |
Article NYE05 plug |
Beschreibung Nominal width 5.0 mm, 1.4305, flat face , male thread DIN228/1, 3/8, seal: FPM (Viton) |
|
