SERIES 093.00
coupling
Reference Number: 093.00.KT00.AG014.3EK
Technique: One-hand coupling with ball lock. It is a low-leakage coupling system with minimal dead space, also known as flat face. Air pockets are excluded during the coupling process, as the valves in plug and coupling lie flat on top of each other before the locking process takes place. During the unlocking process, the valves in plug and coupling are closed before the plug can be removed out of the coupling. This means that both sides of the connection are closed and no medium can leak out.
Technical Characteristics: Material coupling and plug: connections, base body, Sleeve, plug and valves stainless steel AISI 303. Seal FFKM (Kalrez). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420.
Series | 093 |
---|---|
Nominal Width | 4 mm |
Type | coupling |
Valve | flat face |
Seal | FFKM (Kalrez) |
Surface | electropolish |
Material | 1.4305 |
Connection Size | male thread DIN228/1 |
Connection Type | 1/4 |
Operating Temperature | from -15 °C to 240 °C |
Pressure Range max. | 15 bar |
Flow Rate | 14 l/min |
Handling | One-hand coupling |
Vacuum suitable 0.95 bar | No |
Options | Coupling available with other seals on request. |

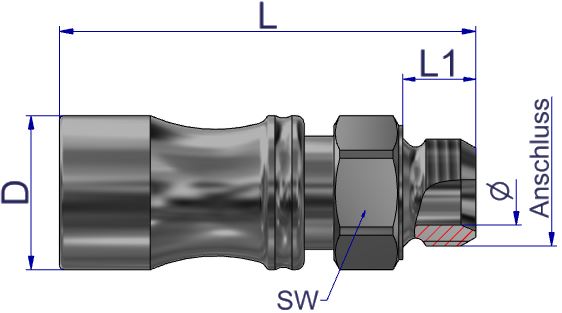

Dimensions / Details
|
Fitting Products |
||||
![]() |
Series 093.00 |

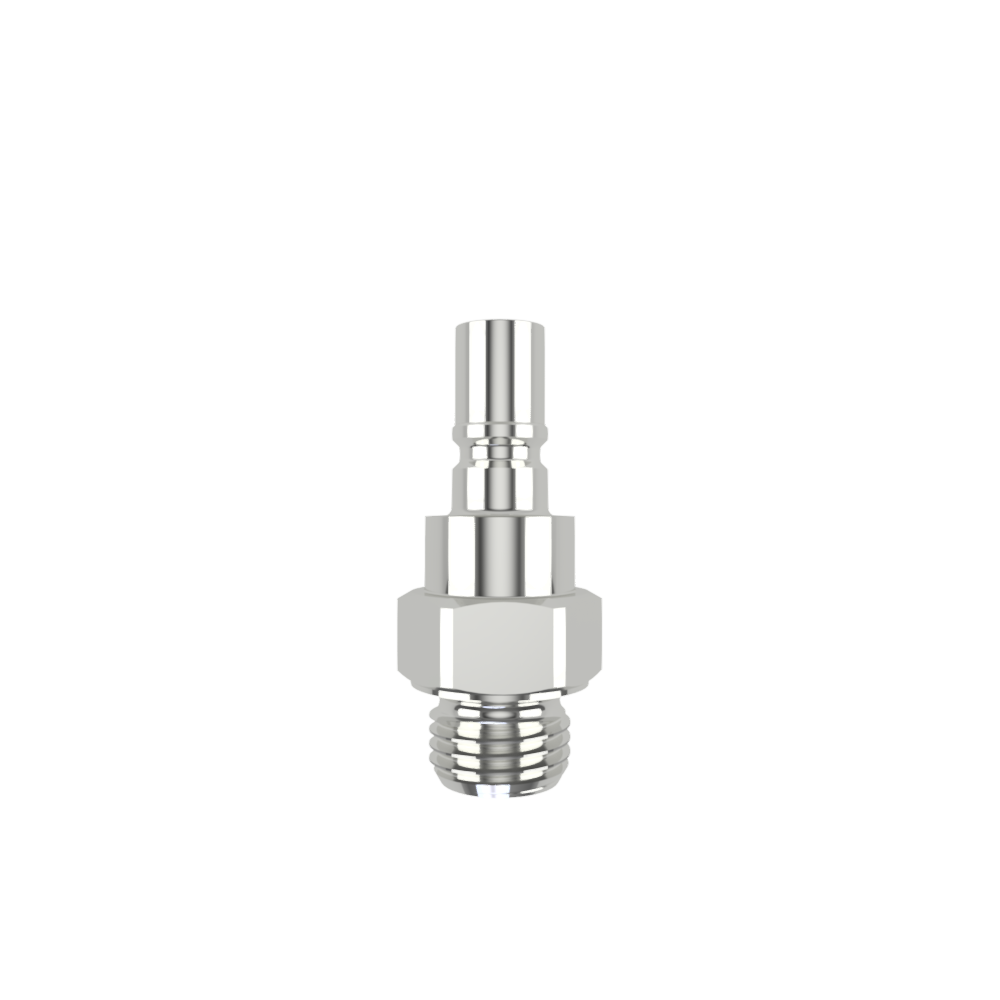

Article NYJB0 plug |
Beschreibung Nominal width 4.0 mm, 1.4305, flat face , male thread DIN228/1, 1/4, seal: FFKM (Kalrez) |
