SERIES 093.00
coupling
Reference Number: 093.00.KT00.AG018.M0P
Technique: One-hand coupling with ball lock. It is a low-leakage coupling system with minimal dead space, also known as flat face. Air pockets are excluded during the coupling process, as the valves in plug and coupling lie flat on top of each other before the locking process takes place. During the unlocking process, the valves in plug and coupling are closed before the plug can be removed out of the coupling. This means that both sides of the connection are closed and no medium can leak out.
Technical Characteristics: Material coupling: connection, base body, valve and sleeve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass.
Series | 093 |
---|---|
Nominal Width | 4 mm |
Type | coupling |
Valve | flat face |
Seal | NBR (Perbunan) |
Surface | nature |
Material | brass |
Connection Size | male thread DIN228/1 |
Connection Type | 1/8 |
Operating Temperature | from -20 °C to 100 °C |
Pressure Range max. | 15 bar |
Flow Rate | 14 l/min |
Handling | One-hand coupling |
Vacuum suitable 0.95 bar | No |
Options | Coupling available with other seals on request. |

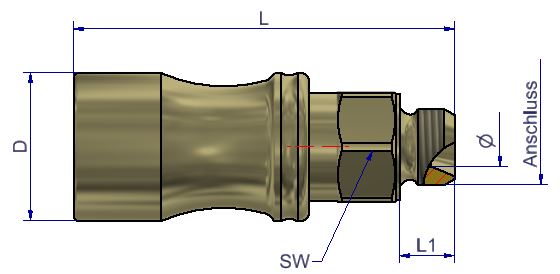

Dimensions / Details
|
Fitting Products |
||||
![]() |
Series 093.00 |
Article NYJT4 plug |
Beschreibung Nominal width 4.0 mm, brass, surface: nickel plated, flat face , female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan) |
|
![]() |
Series 093.00 |
Article NYJS0 plug |
Beschreibung Nominal width 4.0 mm, brass, flat face , male thread DIN228/1, 1/8, seal: NBR (Perbunan) |
|
![]() |
Series 093.00 |
Article NYJB4 plug |
Beschreibung Nominal width 4.0 mm, brass, surface: nickel plated, flat face , male thread DIN228/1, 1/4, seal: NBR (Perbunan) |
