Image similar to the original SERIES 093.00, Article: N85V4

SERIES 093.00
coupling

Article: N85V4
Reference Number: 093.00.KTN0.AG014.MNP
Description: Nominal width 4.0 mm, material: brass, surface: nickel plated, flat face , connection type: male thread DIN228/1, connection size: 1/4, seal: NBR (Perbunan)
Technique: One-hand coupling with ball lock. It is a low-leakage coupling system with minimal dead space, also known as flat face. Air pockets are excluded during the coupling process, as the valves in plug and coupling lie flat on top of each other before the locking process takes place. During the unlocking process, the valves in plug and coupling are closed before the plug can be removed out of the coupling. This means that both sides of the connection are closed and no medium can leak out.
Technical Characteristics: Material coupling and plug: connections, base body, Sleeve, plug and valves brass nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420.
Nominal width 4.0 mm, brass, surface: nickel plated, flat face , male thread DIN228/1, 1/4, seal: NBR (Perbunan)
Series093
Nominal Width4 mm
Typecoupling
Valveflat face
SealNBR (Perbunan)
Surfacenickel plated
Materialbrass
Connection Sizemale thread DIN228/1
Connection Type 1/4
Operating Temperaturefrom -20 °C to 100 °C
Pressure Range max.15 bar
Flow Rate14 l/min
HandlingOne-hand coupling
IndustriesOperating material, Fluidics, Water, sewage, disposal
Vacuum suitable 0.95 barNo
OptionsCoupling available with other seals on request.
Dimensions / Details
Connection 1/4
Ø (Diameter inside)8 mm
D (Diameter outside)19 mm
L (length)52 mm
L1 (length)9 mm
SW (key width)17 mm
Fitting Products
plug NYJT4 Series
093.00
Article
NYJT4
plug
Beschreibung
Nominal width 4.0 mm, brass, surface: nickel plated, flat face , female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan)

plug NYJS0 Series
093.00
Article
NYJS0
plug
Beschreibung
Nominal width 4.0 mm, brass, flat face , male thread DIN228/1, 1/8, seal: NBR (Perbunan)

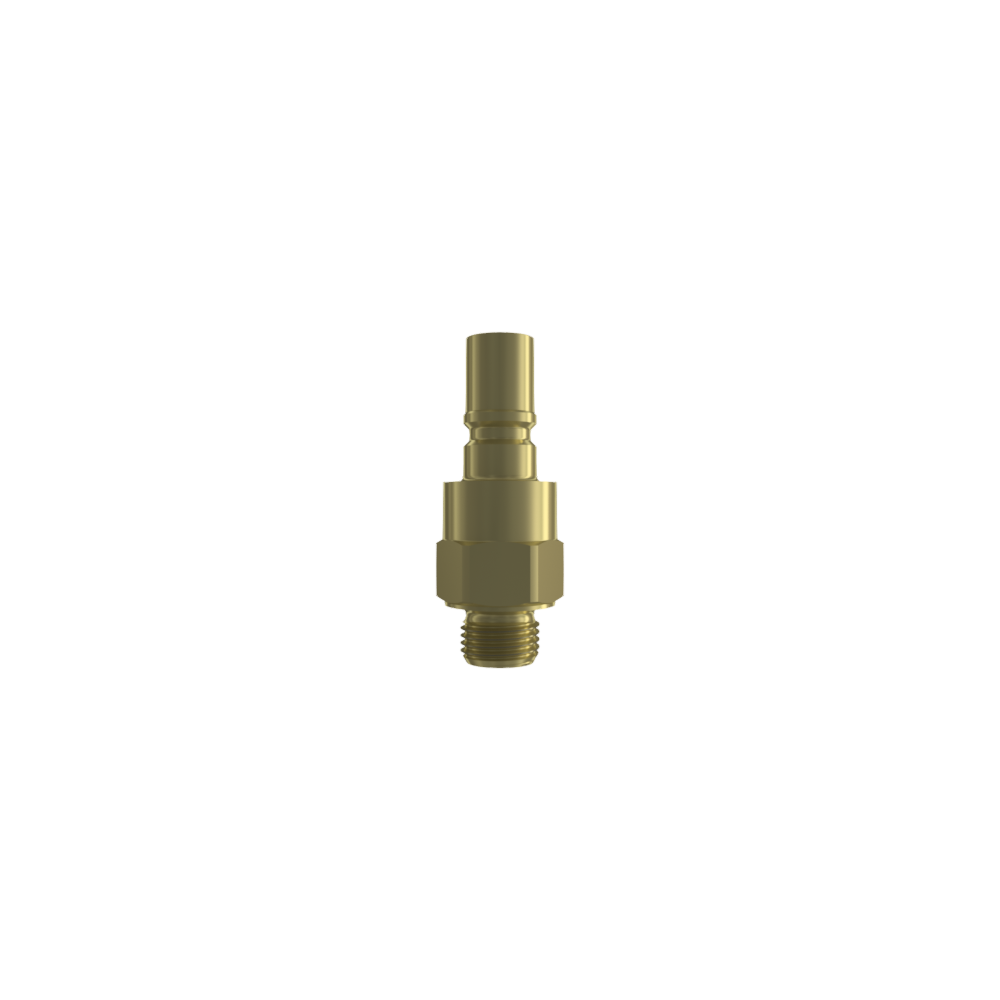

plug NYJB4 Series
093.00
Article
NYJB4
plug
Beschreibung
Nominal width 4.0 mm, brass, surface: nickel plated, flat face , male thread DIN228/1, 1/4, seal: NBR (Perbunan)
