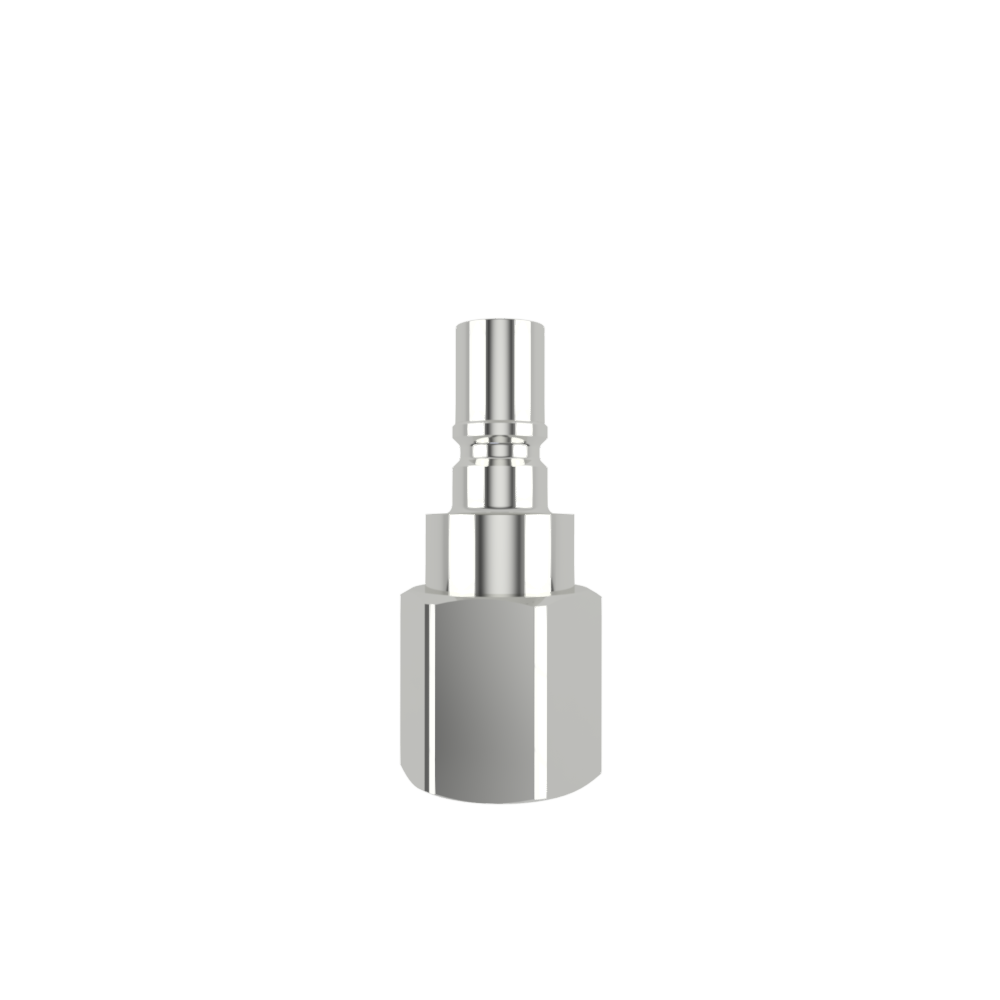

Image similar to the original
SERIES 093.00
coupling
Reference Number: 093.00.KT00.IG014.3EP
Technical Characteristics: Material coupling and plug: connections, base body, Sleeve, plug and valves stainless steel AISI 303. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420.
| Series | 093 |
|---|---|
| Nominal Width | 4 mm |
| Type | coupling |
| Valve | flat face |
| Seal | NBR (Perbunan) |
| Surface | electropolish |
| Material | 1.4305 |
| Connection Size | female thread DIN228/1 (BSP) |
| Connection Type | 1/4 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 15 bar |
| Flow Rate | 14 l/min |
| Handling | One-hand coupling |
| Industries | Operating material, Machinery and equipment, Fluidics, Water, sewage, disposal |
| Vacuum suitable 0.95 bar | No |
 |
Dimensions / Details
|
Fitting Products |
||||
 |
Series 093.00 |
Article NYJT3 plug |
Beschreibung Nominal width 4.0 mm, 1.4305, surface: electropolish, flat face , female thread DIN228/1, 1/4, seal: NBR (Perbunan) |
|
 |
Series 093.00 |
Article NYJB3 plug |
Beschreibung Nominal width 4.0 mm, 1.4305, surface: electropolish, flat face , male thread DIN228/1, 1/4, seal: NBR (Perbunan) |
|
