SERIES
126.0S
plug
Reference Number: 126.0S.S00S.ST013.SZ0
Technique: One-hand coupling with automatic 5-point locking. Locking elements are balls that are locked by a spring-loaded unlocking sleeve. The uncoupling process is initiated by pushing back the unlocking sleeve into the direction of the connection. The valve moves back to its original position closes the couling and pushes the plug out of the coupling. All couplings in this series have an additional lock nut to secure the coupling against accidental uncoupling. The positive connection between the coupling and the plug allows to transmitted torsional forces.
Technical Characteristics: Material coupling: back part and body are made of brass nickel plated. Valve brass. Sleeve steel hardend nickel plated. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: steel hardend zink plated.
| Series | 126 |
|---|---|
| Nominal Width | 7.8 mm |
| Key | hexagonal |
| Type | plug |
| Surface | zinc-plated |
| Material | steel |
| Connection Size | hose connection |
| Connection Type | LW13 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 2,030 l/min |
| Handling | One-hand coupling |
| Industries | Machinery and equipment, Water, sewage, disposal |
| Vacuum suitable 0.95 bar | Yes |
| Options | Coupling available with other seals on request. |
 |

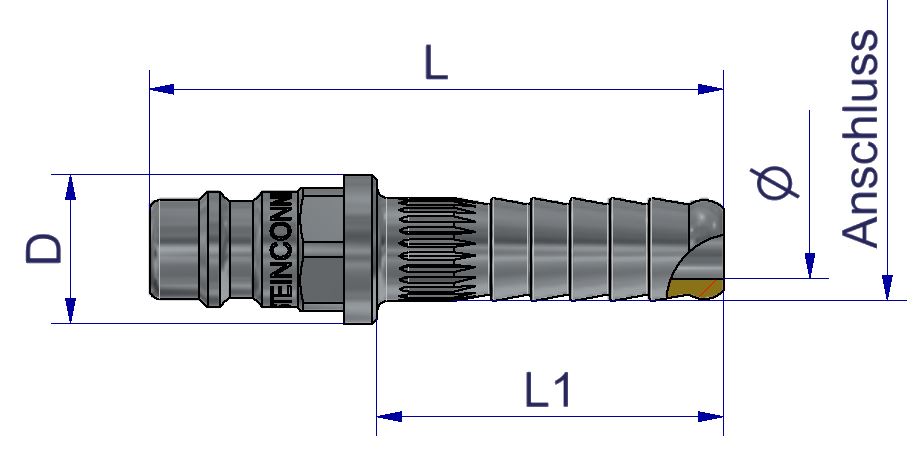

Dimensions / Details
|
Fitting Products |
||||
 |
Series 126.VS |
Article NB714 coupling |

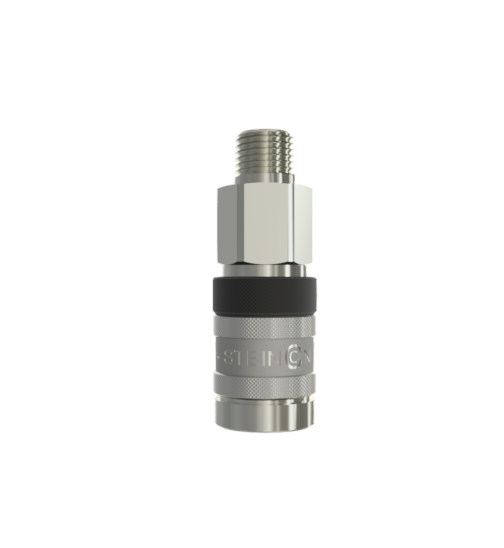

Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, male thread DIN2999 (BSPT), 1/4, seal: NBR (Perbunan) |
|
 |
Series 126.VS |
Article NB734 coupling |

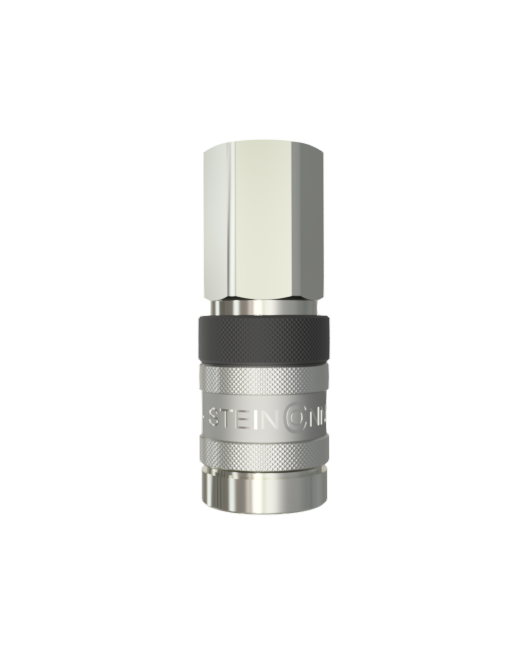

Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 1/4, seal: NBR (Perbunan) |
|
 |
Series 126.VS |
Article NB7M0 coupling |
Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, ferrule, LW9, seal: NBR (Perbunan) |
|
|
Series 126.VS |
Article NB7J0 coupling |
Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, ferrule, LW10, seal: NBR (Perbunan) |
|
|
Series 126.VS |
Article NB7H0 coupling |
Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, ferrule, LW8, seal: NBR (Perbunan) |
|
|
Series 126.VS |
Article NB7L0 coupling |
Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, ferrule, LW13, seal: NBR (Perbunan) |
|
|
Series 126.VS |
Article NB774 coupling |
Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, female thread DIN228/1 (BSP), 3/8, seal: NBR (Perbunan) |
|
|
Series 126.VS |
Article NB7K0 coupling |
Beschreibung Nominal width 7.8 mm, brass, surface: nickel plated, single shut off, ferrule, LW12, seal: NBR (Perbunan) |
|
