SERIES 090.S0
plug
Reference Number: 090.S0.S000.AG014.MN0
Technique: Two-hand coupling with automatic 5-point locking. Locking elements are balls which are locked by a spring-loaded unlocking sleeve. In order to avoid unintentional uncoupling, the unlocking process is only possible by deliberately pressing the plug into the coupling. This is the only way to free the locking elements and to move the unlocking sleeve in the direction of the connection so that the plug can be removed from the coupling. The valve moves back to its original position and closes the couling.
Technical Characteristics: Material Coupling: back part, sleeve, coupler body are made of brass nickel plated. Valve brass. Seal NBR (Buna N). Spring and circlip stainless steel AISI 301. Balls stainless steel AISI 420. Material plug: brass nickel plated
| Series | 090 |
|---|---|
| Nominal Width | 5 mm |
| Type | plug |
| Surface | nickel plated |
| Material | brass |
| Connection Size | male thread DIN228/1 |
| Connection Type | 1/4 |
| Operating Temperature | from -20 °C to 100 °C |
| Pressure Range max. | 35 bar |
| Flow Rate | 600 l/min |
| Handling | Two-hand coupling |
| Industries | Medical technology, Respiratory protection |
| Vacuum suitable 0.95 bar | Yes |
 |
Dimensions / Details
|
Fitting Products |
||||
 |
Series 090.S0 |

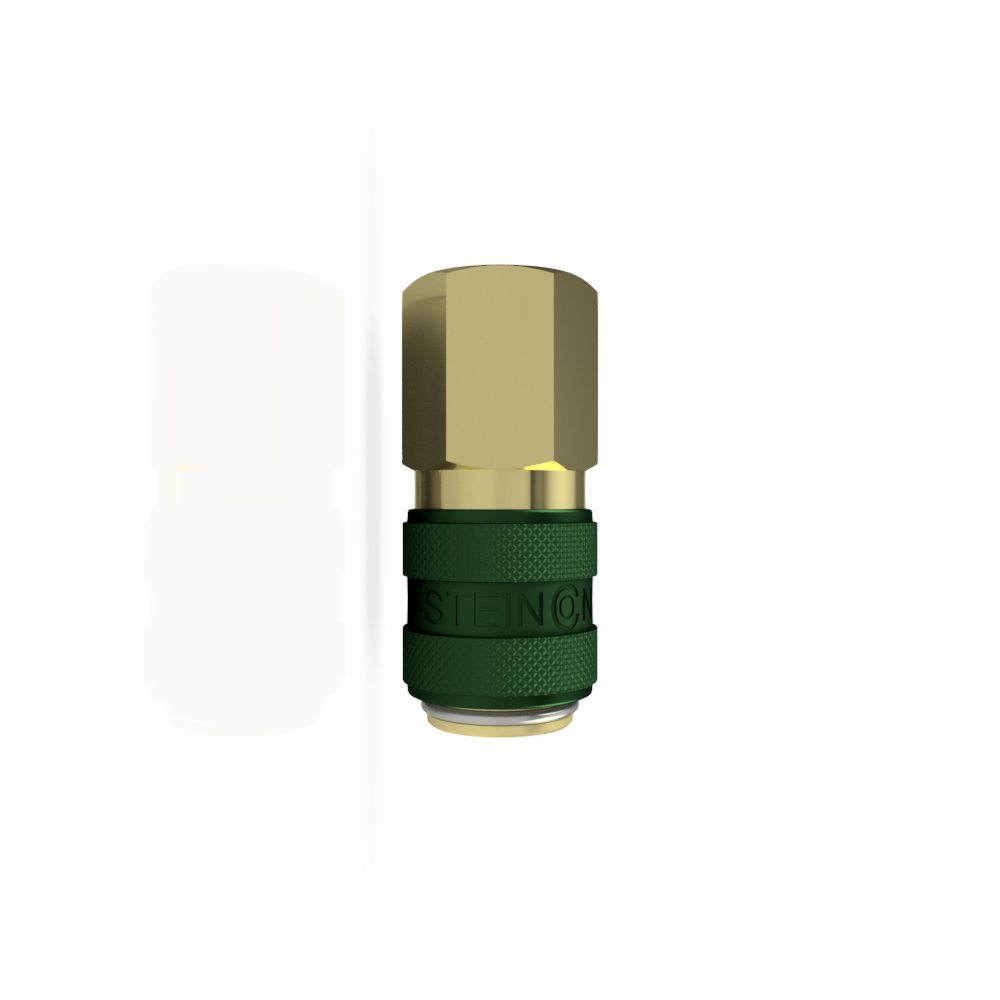

Article N01M0 coupling |
Beschreibung Nominal width 5.0 mm, brass, surface: nickel plated, single shut off, male thread DIN228/1, 1/4, seal: NBR (Perbunan) |
|
